Rohde & Schwarz

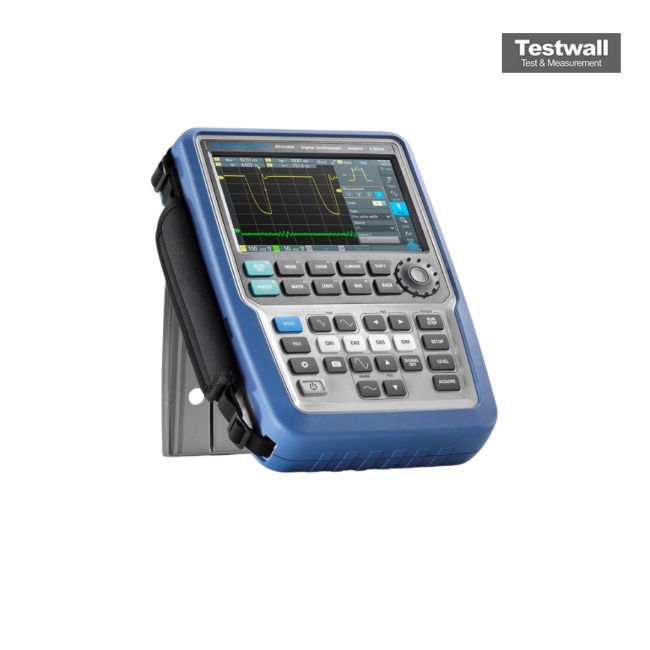

Rohde & Schwarz RTH1004
Handheld Oscilloscope, 60 MHz, 4 Channels Handheld
4 Number of Channels
60 MHz Bandwidth
500 MSa/s Sample Rate
2 Mpts per channel Memory Depth
8-bit (up to 12-bit in high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 60 MHz |
| Sample Rate | 500 MSa/s |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8-bit (up to 12-bit in high-resolution mode) |
| Display | 5.7-inch color touchscreen LCD |
| Battery Operation | Yes, integrated rechargeable battery (up to 3 hours) |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Connectivity | USB, LAN (LXI), Wi-Fi (optional) |
| Protection Rating | IP51 (dust and drip-proof, suitable for field use) |
Rohde & Schwarz RTH1004 Options:
- RTH1004 - RTH-B1 - Mixed signal option, additional 8 logic channels, 250 MHz
- RTH1004 - RTH-B241 - Upgrade of R&S®RTH1004 oscilloscopes to 100 MHz bandwidth
- RTH1004 - RTH-B242 - Upgrade of R&S®RTH1004 oscilloscopes to 200 MHz bandwidth
- RTH1004 - RTH-B243 - Upgrade of R&S®RTH1004 oscilloscopes to 350 MHz bandwidth
- RTH1004 - RTH-B244 - Upgrade of R&S®RTH1004 oscilloscopes to 500 MHz bandwidth
- RTH1004 - RTH-K1 - I2C/SPI serial triggering and decoding
- RTH1004 - RTH-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTH1004 - RTH-K3 - CAN/LIN serial triggering and decoding
- RTH1004 - RTH-K9 - CAN-FD serial triggering and decoding (requires active RTH-K3 option as basis)
- RTH1004 - RTH-K10 - SENT serial triggering and decoding
- RTH1004 - RTH-K15 - History and segmented memory
- RTH1004 - RTH-K18 - Spectrum analysis
- RTH1004 - RTH-K19 - Advanced triggering
- RTH1004 - RTH-K33 - Frequency counter
- RTH1004 - RTH-K34 - Harmonic analysis
- RTH1004 - RTH-K200 - Wireless LAN, all countries except US and Canada
- RTH1004 - RTH-K200US - Wireless LAN, for US and Canada only
- RTH1004 - RTH-K201 - Web interface remote control
| Model | RTH1004 |
|---|
The Rohde and Schwarz RTH1004 Scope Rider is a 4-channel, 60 MHz handheld oscilloscope with 10-bit ADC and up to 5 GSa/s sampling rate. It supports bandwidth upgrades via software key and offers advanced functionality with 33 auto measurements and 50,000 waveforms/sec.
Its isolated channels (CAT IV 600V/CAT III 1000V) and adjustable input range (2 mV/div to 100 V/div) make it suitable for precise on-site diagnostics.
Testwall can supply the used Rohde and Schwarz RTH1004, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz RTH1004.
