Keysight (Agilent)

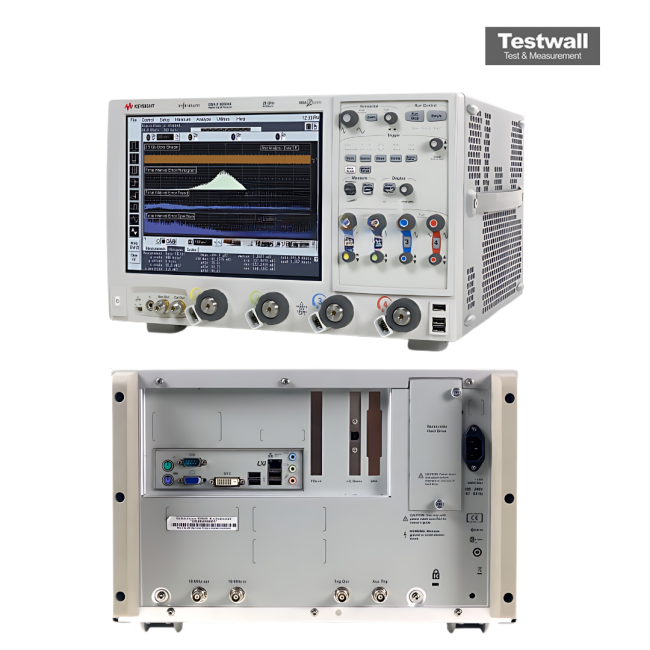

Keysight (Agilent) DSAX92504A
4 Ch 20 GHz Digital Signal Analyzer
25 GHz Bandwidth
80 GSa/s Sample Rate
4 Number of Channels
Up to 2 Gpts (with memory option) Memory Depth
8-bit (up to 12-bit with High Resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 25 GHz |
| Sample Rate | 80 GSa/s |
| Number of Channels | 4 |
| Memory Depth | Up to 2 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with High Resolution mode) |
| Rise Time | 14 ps |
| Display | 15-inch XGA color touch screen display |
| Operating System | Windows 10 |
| Connectivity | LAN (1000Base-T), USB 3.0, GPIB (optional) |
| Input Impedance | 50 Ohm |
Keysight Technologies DSAX92504A Options:
- DSAX92504A - 020 - 20 Mpts/ch memory (standard on DSA models)
- DSAX92504A - 050 - 50 Mpts/ch memory
- DSAX92504A - 100 - 100 Mpts/ch memory
- DSAX92504A - 200 - 200 Mpts/ch memory
- DSAX92504A - 500 - 500 Mpts/ch memory
- DSAX92504A - 01G - 1 Gpts/ch memory
- DSAX92504A - 02G - 2 Gpts/ch memory
- DSAX92504A - A6J - ANSI Z540 Compliant calibration
- DSAX92504A - 820 - DVD RW
- DSAX92504A - 805 - GPIB Card-interface
- DSAX92504A - 823 - PCI Express card-interface
- DSAX92504A - OC-PROBES - Performance verification de-skew fixture
- DSAX92504A - 1CM - Rack mount kit option
- DSAX92504A - 801 - Removable hard drive
- DSAX92504A - 063 - CAN/FlexRay decode
- DSAX92504A - 002 - EZJIT jitter analysis software
- DSAX92504A - 004 - EZJIT Plus jitter analysis software
- DSAX92504A - 003 - High-Speed SDA and clock recovery
- DSAX92504A - 007 - I2C/SPI Decode
- DSAX92504A - 009 - InfiniiScan software triggering
- DSAX92504A - 013 - InfiniiSim basic signal de-embedding
- DSAX92504A - 014 - InfiniiSim advanced signal de-embedding
- DSAX92504A - 012 - Infiniium serial data equalization
- DSAX92504A - 061 - MATLAB - Standard digital analysis package
- DSAX92504A - 062 - MATLAB - Basic digital analysis package
- DSAX92504A - 019 - MIPI D-PHY protocol
- DSAX92504A - 017 - PCI-Express protocol
- DSAX92504A - 011 - Remote programming interface
- DSAX92504A - 015 - RS-232/UART decode
- DSAX92504A - 018 - SATA/SAS protocol
- DSAX92504A - 016 - USB protocol
- DSAX92504A - 010 - User-defined function
- DSAX92504A - 031 - DDR1 validation application
- DSAX92504A - 032 - DDR2 validation application
- DSAX92504A - 033 - DDR3 up to 800MHz validation application
- DSAX92504A - 028 - DisplayPort compliance application
- DSAX92504A - 023 - HDMI compliance application
- DSAX92504A - 035 - MIPI D-PHY compliance application
- DSAX92504A - 022 - PCI EXPRESS compliance application
- DSAX92504A - 027 - SAS compliance application
- DSAX92504A - 038 - SATA 6Gb/s Compliance
- DSAX92504A - 041 - USB 3.0 Compliance Software
- DSAX92504A - 040 - User Defined Application
- DSAX92504A - 036 - 10GBASE-T Automated Test Application
| Model | DSAX92504A |
|---|
The Keysight (Agilent) DSAX92504A is a 25 GHz X-Series oscilloscope designed for high-speed digital and RF validation, with deep memory and high fidelity waveform capture.
It comes with a comprehensive software suite, including protocol decoding and EZJIT analysis tools.
Testwall can supply the used Keysight (Agilent) DSAX92504A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSAX92504A.
