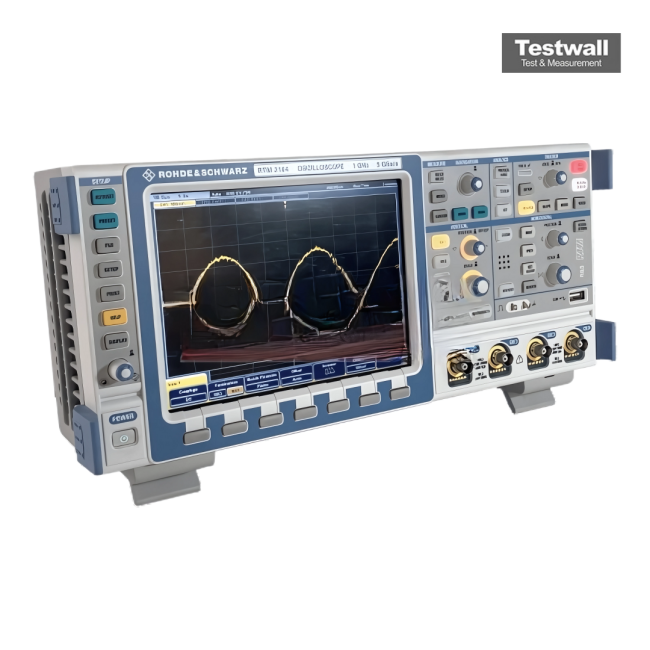

Rohde & Schwarz RTM2104
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 5 Gsample/s |
| Memory Depth | 20 Mpoints (standard), 40 Mpoints (optional) |
| Vertical Resolution | 10-bit ADC |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Input Impedance | 1 MΩ / 50 Ω |
| Time Base Range | 1 ns/div to 50 s/div |
| Waveform Update Rate | Up to 1,000,000 waveforms/s |
| Connectivity | USB, Ethernet (LAN), HDMI |
Rohde & Schwarz RTM2104 Options:
- RTM2104 - RTM-B1 - Mixed Signal Option, 400 MHz (additional 16 logic channels)
- RTM2104 - RTM-B10 - GPIB Interface
- RTM2104 - RTM-B200 - Upgrade of R&S RTM2032/4 to 500 MHz bandwidth
- RTM2104 - RTM-B201 - Upgrade of R&S RTM2022/4 to 350 MHz bandwidth
- RTM2104 - RTM-B202 - Upgrade of R&S RTM2022/4 to 500 MHz bandwidth
- RTM2104 - RTM-B203 - Upgrade of R&S RTM2022/4 to 1 GHz bandwidth
- RTM2104 - RTM-B204 - Upgrade of R&S RTM2032/4 to 1 GHz bandwidth
- RTM2104 - RTM-B205 - Upgrade of R&S RTM2052/4 to 1 GHz bandwidth
- RTM2104 - RTM-K1 - I2C/SPI Triggering and Decoding
- RTM2104 - RTM-K2 - UART/RS-232/RS-422/RS-485 Triggering and Decoding
- RTM2104 - RTM-K3 - CAN/LIN Triggering and Decoding
- RTM2104 - RTM-K5 - Audio (I2S, LJ, RJ, TDM) Triggering and Decoding
- RTM2104 - RTM-K6 - MIL-STD-1553 Triggering and Decoding
- RTM2104 - RTM-K7 - ARINC 429 Triggering and Decoding
- RTM2104 - RTM-K15 - History and Segmented Memory
- RTM2104 - RTM-K18 - Spectrum Analysis and Spectrogram
- RTM2104 - RTM-K31 - Power Analysis
- RTM2104 - RTM-K32 - Digital Voltmeter (DVM)
| Model | RTM2104 |
|---|
The Rohde and Schwarz RTM2104 oscilloscope features bandwidths of 200 MHz to 1 GHz, with rise times from 1.75 ns to 350 ps, 8-bit to 16-bit resolution, and up to 5 Gsample/s sampling on half channels. It offers deep memory up to 460 Msample (with K15 option), and a vivid 8.4″ XGA TFT display for precise signal analysis.
Key functionalities include 31 auto measurements, fast RMS and frequency analysis, MSO with 16-channel logic analyzer, and extensive bus decoding and analysis capabilities like power and spectrum analysis via modular options.
Testwall can supply the used Rohde and Schwarz RTM2104, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz RTM2104.
