Rohde & Schwarz RTM3002
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2.5 Gsample/s |
| Memory Depth | 20 Mpoints (standard), 40 Mpoints (with option) |
| Vertical Resolution | 10-bit ADC |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Time Base Range | 1 ns/div to 50 s/div |
| Connectivity | USB, LAN (LXI), optional Wi-Fi |
Rohde & Schwarz RTM3002 Options:
- RTM3002 - RTM-B222 - Upgrade of R&S®RTM3002 oscilloscopes to 200 MHz bandwidth
- RTM3002 - RTM-B223 - Upgrade of R&S®RTM3002 oscilloscopes to 350 MHz bandwidth
- RTM3002 - RTM-B225 - Upgrade of R&S®RTM3002 oscilloscopes to 500 MHz bandwidth
- RTM3002 - RTM-B2210 - Upgrade of R&S®RTM3002 oscilloscopes to 1 GHz bandwidth
- RTM3002 - RTM-B1 - Mixed Signal Upgrade for non-MSO models, 400 MHz
- RTM3002 - RTM-B6 - Arbitrary Waveform and 4-bit Pattern Generator
- RTM3002 - RTM-K1 - I²C/SPI Serial Triggering and Decoding
- RTM3002 - RTM-K2 - UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding
- RTM3002 - RTM-K3 - CAN/LIN Serial Triggering and Decoding
- RTM3002 - RTM-K5 - Audio (I²S, LJ, RJ, TDM) Triggering and Decoding
- RTM3002 - RTM-K6 - MIL-STD-1553 Serial Triggering and Decoding
- RTM3002 - RTM-K7 - ARINC429 Serial Triggering and Decoding
- RTM3002 - RTM-K15 - History and Segmented Memory
- RTM3002 - RTM-K18 - Spectrum Analysis and Spectrogram
- RTM3002 - RTM-K31 - Power Analysis
- RTM3002 - RTM-PK1 - Application Bundle (RTM-K1, RTM-K2, RTM-K3, RTM-K5, RTM-K6, RTM-K7, RTM-K15, RTM-K18, RTM-K31, RTM-B6)
| Model | RTM3002 |
|---|

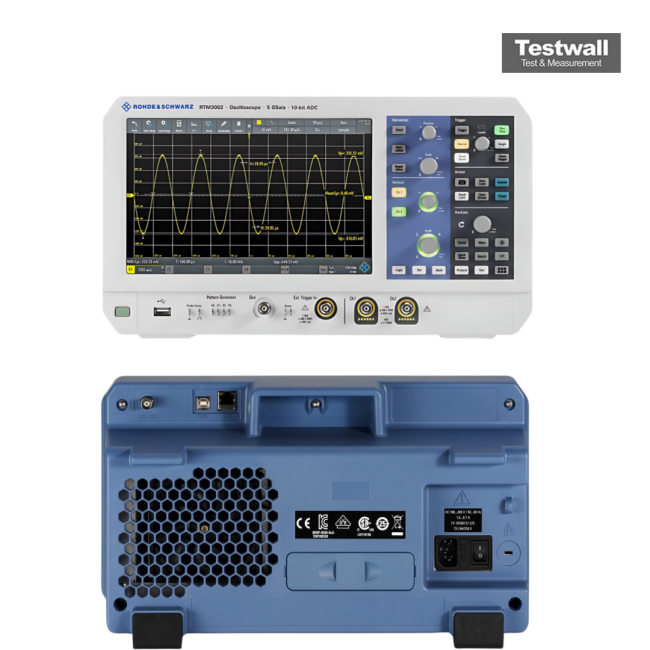

The Rohde & Schwarz RTM3002 is a two-channel, 100 MHz digital oscilloscope featuring a 10-bit ADC, 2.5 GSa/s sampling per channel (5 GSa/s interleaved), and up to 80 Msample memory depth. It includes a 10.1" capacitive touchscreen with smartphone-like gesture support, and offers advanced options via software licenses including bandwidth upgrades, spectrum and power analysis.
Ideal for precise signal capture with full bandwidth at 500 µV/div without software magnification, it provides excellent vertical resolution and deep memory for accurate diagnostics in lab and field settings.
Testwall can supply the used Rohde & Schwarz RTM3002, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTM3002.
