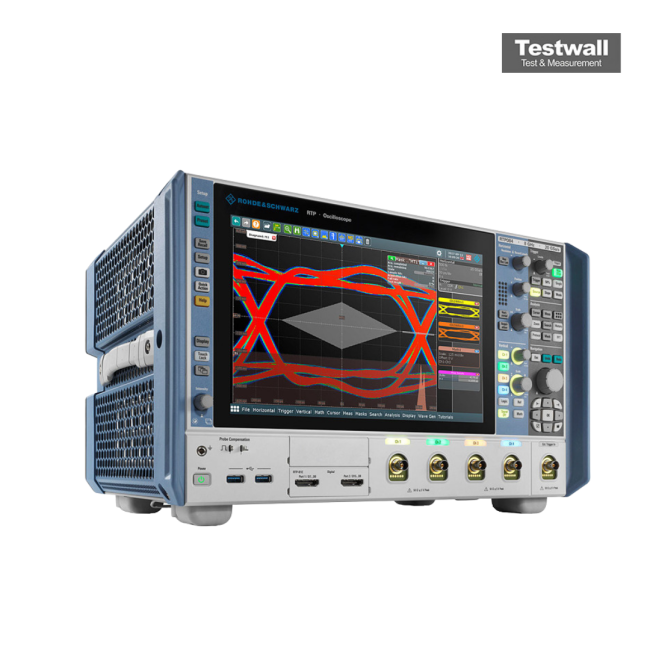

Rohde & Schwarz RTP044
RTP High-Performance Oscilloscope, 4 GHz, 4 Channels
4 GHz Bandwidth
20 Gsample/s (single channel), 10 Gsample/s (all channels) Sample Rate
4 Number of Channels
500 Msamples per channel Memory Depth
8 bit (up to 16 bit in high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Sample Rate | 20 Gsample/s (single channel), 10 Gsample/s (all channels) |
| Number of Channels | 4 |
| Memory Depth | 500 Msamples per channel |
| Vertical Resolution | 8 bit (up to 16 bit in high-resolution mode) |
| Rise Time | 87.5 ps |
| Input Impedance | 50 Ω / 1 MΩ |
| Display | 12.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Connectivity | USB, LAN (LXI), DisplayPort, GPIB (optional) |
Rohde & Schwarz RTP044 Options:
- RTP044 - RTP-B1 - Mixed signal option, additional 16 logic channels, 400 MHz
- RTP044 - RTP-B1E - Digital extension port for R&S RT-ZVC usage with R&S RTP oscilloscope, included in R&S RTP-B1
- RTP044 - RTP-B6 - Arbitrary waveform generator, 100 MHz, 2 analog channels, 8-bit pattern generator
- RTP044 - RTP-B7 - 16 GHz differential pulse source with reference output
- RTP044 - RTP-B19 - Additional solid state disk
- RTP044 - RTP-B21 - Adapter rear option slot
- RTP044 - RTP-B101 - Memory upgrade, 100 Msample per channel
- RTP044 - RTP-B102 - Memory upgrade, 200 Msample per channel
- RTP044 - RTP-B105 - Memory upgrade, 500 Msample per channel
- RTP044 - RTP-B110 - Memory upgrade, 1 Gsample per channel
- RTP044 - RTP-B0406 - Upgrade of the R&S RTP044 to 6 GHz bandwidth
- RTP044 - RTP-B0408 - Upgrade of the R&S RTP044 to 8 GHz bandwidth
- RTP044 - RTP-K1 - I2C/SPI serial triggering and decoding
- RTP044 - RTP-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTP044 - RTP-K3 - CAN/LIN serial triggering and decoding
- RTP044 - RTP-K8 - Ethernet serial decoding
- RTP044 - RTP-K9 - CAN-FD serial triggering and decoding
- RTP044 - RTP-K12 - Basic jitter analysis
- RTP044 - RTP-K17 - High definition mode
- RTP044 - RTP-K19 - Zone trigger
- RTP044 - RTP-K21 - USB 2.0 compliance test
- RTP044 - RTP-K22 - Ethernet compliance test (10/100/1000BASE-T)
- RTP044 - RTP-K23 - Ethernet compliance test (10GBASE-T)
- RTP044 - RTP-K24 - IEEE 100BASE-T1 (BroadR-Reach) compliance test
- RTP044 - RTP-K25 - Ethernet compliance test (2.5G/5G-BASE-T)
- RTP044 - RTP-K26 - MIPI D-PHY compliance test
- RTP044 - RTP-K37 - Spectrogram
- RTP044 - RTP-K40 - MIPI RFFE serial triggering and decoding
- RTP044 - RTP-K42 - MIPI D-PHY serial triggering and decoding
- RTP044 - RTP-K44 - MIPI M-PHY serial triggering and decoding
- RTP044 - RTP-K50 - Manchester and NRZ serial triggering and decoding
- RTP044 - RTP-K52 - 8b10b serial decoding
- RTP044 - RTP-K55 - MDIO serial triggering and decoding
- RTP044 - RTP-K57 - IEEE 100BASE-T1 serial triggering and decoding
- RTP044 - RTP-K60 - USB 1.0/1.1/2.0/HSIC serial triggering and decoding
- RTP044 - RTP-K61 - USB 3.1 Gen 1 serial triggering and decoding
- RTP044 - RTP-K63 - USB power delivery serial triggering and decoding
- RTP044 - RTP-K64 - USB 3.1 SSIC serial triggering and decoding
- RTP044 - RTP-K86 - Energy-efficient Ethernet compliance test (10M/100M/1G-BASE-T)
- RTP044 - RTP-K91 - DDR3/DDR3L/LPDDR3 signal integrity debug and compliance test
- RTP044 - RTP-K99 - R&S ScopeSuite automation
- RTP044 - RTP-K121 - Deembedding base option
- RTP044 - RTP-K122 - Realtime deembedding extension
| Model | RTP044 |
|---|
The Rohde and Schwarz RTP044 oscilloscope delivers 750,000 waveforms per second with a high-precision digital trigger, unaffected by bandwidth limitations. It features a compact, silent design and a flat frequency response of ±0.25 dB for accurate measurements.
Ideal for fault detection and fast signal acquisition, it supports realtime de-embedding and offers unmatched performance in lab environments with tight space and noise constraints.
Testwall can supply the used Rohde and Schwarz RTP044, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz RTP044.
