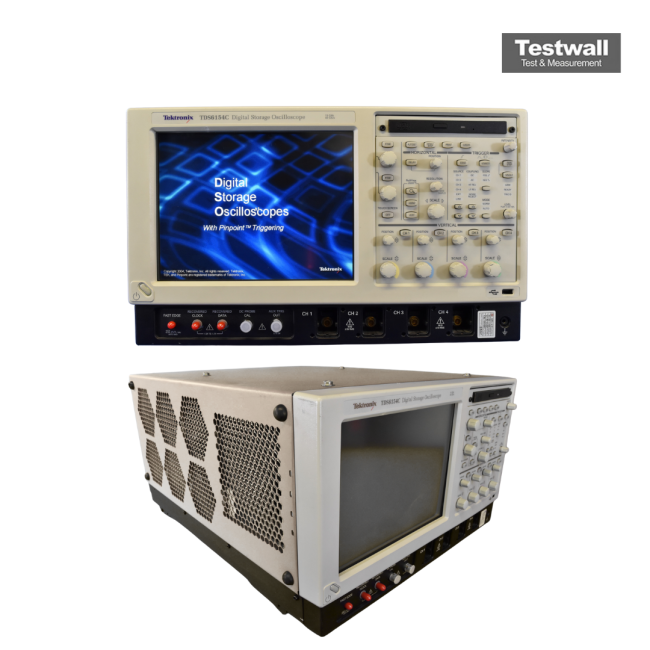

Tektronix TDS6154C
4 Channel 40GSa/s 15GHz Digital Oscilloscope
15 GHz Bandwidth
40 GS/s on 2 channels, 20 GS/s on 4 channels Sample Rate
4 Number of Channels
Up to 64 M points Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 15 GHz |
| Sample Rate | 40 GS/s on 2 channels, 20 GS/s on 4 channels |
| Number of Channels | 4 |
| Record Length | Up to 64 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 23.3 ps |
| Input Impedance | 50 Ω |
| Time Base Range | 200 ps/div to 40 s/div |
| Display | 10.4 inch color LCD, 1024 x 768 resolution |
| Connectivity | GPIB, USB, LAN (10/100Base-T Ethernet) |
Tektronix TDS6154C Options:
- TDS6000B - Opt. A0 - North America power
- TDS6000B - Opt. A1 - Universal EURO power
- TDS6000B - Opt. A2 - United Kingdom power
- TDS6000B - Opt. A3 - Australia power
- TDS6000B - Opt. A5 - Switzerland power
- TDS6000B - Opt. A6 - Japan power
- TDS6000B - Opt. A10 - China power
- TDS6000B - Opt. A99 - No power cord or AC adapter
- TDS6000B - Opt. FHD - Front-panel 40 GB removable hard disk drive, replaces front panel CD-R/W which is moved to the back
- TDS6000B - Opt. 2M - 8 Mb samples on all channels
- TDS6000B - Opt. 3M - 16 Mb samples on all channels
- TDS6000B - Opt. 4M - 32 Mb samples on all channels
- TDS6000B - Opt. C3 - Calibration Service 3 Years
- TDS6000B - Opt. C5 - Calibration Service 5 Years
- TDS6000B - Opt. D1 - Calibration Data Report
- TDS6000B - Opt. D3 - Calibration Data Report 3 Years (requires Option C3)
- TDS6000B - Opt. D5 - Calibration Data Report 5 Years (requires Option C5)
- TDS6000B - Opt. R3 - Repair Service 3 Years
- TDS6000B - Opt. R5 - Repair Service 5 Years
- TDS6000B - Opt. 1K - K4000 Oscilloscope Cart
- TDS6000B - Opt. 1R - Rackmount Kit
- TDS6000B - CP2 - TDSCPM2 ANSI/ITU Telecom pulse compliance testing software (requires option SM)
- TDS6000B - DVD - TDSDVD Optical storage analysis
- TDS6000B - DVI - TDSDVI DVI compliance test solution
- TDS6000B - ET3 - TDSET3 Ethernet compliance test software
- TDS6000B - JT3 - TDSJIT3 Advanced jitter analysis software
- TDS6000B - J3E - TDSJIT3 Essentials
- TDS6000B - J2 - TDSDDM2 Disk drive analysis software
- TDS6000B - PW32 - TDSPWR3 Power measurement and analysis software
- TDS6000B - RTE - TDSRT-Eye Serial Data Compliance and Analysis Software
- TDS6000B - RTJ - Software Bundle of TDSJIT3 (Opt. JT3) and TDSRT-Eye (Opt. RTE)
- TDS6000B - RJS - Software Bundle of TDSJIT3 (Opt. JT3), RT-Eye (Opt. RTE), and Serial Mask testing (Opt. SM)
- TDS6000B - PCE - PCI Express Compliance Module for Opt. RTE (Requires Opt. RTE)
- TDS6000B - IBA - InfiniBand Compliance Module for Opt. RTE (Requires Opt. RTE)
- TDS6000B - SM - Serial communications mask testing (enables hardware clock recovery)
- TDS6000B - ST - Serial pattern trigger (enables hardware clock recovery)
- TDS6000B - USB - TDSUSBS USB2.0 Compliance test S/W only
- TDS6000B - P7380SMA - 8 GHz Differential Probing System
- TDS6000B - P7380 - 8 GHz Differential Probe
- TDS6000B - AFTDS - Telecom differential electrical interface adapter (for line rates <8 MB/sec; requires TCA-BNC adapter)
- TDS6000B - 119-6297-00 - Keyboard (USB interface) full-size keyboard with 4-port USB hub
- TDS6000B - 016-1942-00 - Transit Case
- TDS6000B - TCA-1MEG - TekConnect high-impedance buffer amplifier, includes P6139A passive probe
- TDS6000B - TCA-SMA - TekConnect-to-SMA Adapter
- TDS6000B - TCA-N - TekConnect-to-N Adapter
- TDS6000B - TCA-BNC - TekConnect-to-BNC Adapter
- TDS6000B - TCA75 - 4 GHz precision TekConnect 75 Ω adapter with 75 Ω BNC input connector
- TDS6000B - K4000 - Oscilloscope Cart
- TDS6000B - WSTRO - WaveStar waveform capture and documentation software
- TDS6000B - TDSUSBF - TDSUSB test fixture for use with Opt. USB
- TDS6000B - 012-0991-01 - GPIB Cable (1 m)
- TDS6000B - 012-0991-00 - GPIB Cable (2 m)
- TDS6000B - 012-1298-00 - RS-232 Cable
- TDS6000B - 012-1214-00 - Centronics Cable
| Model | TDS6154C |
|---|
The Tektronix TDS6154C is a 4-channel digital oscilloscope offering 15 GHz DSP-enhanced bandwidth and 40 GS/s sampling rate on two channels, ideal for advanced high-speed signal fidelity and serial data analysis.
It features user-selectable DSP filtering, true 12 GHz analog bandwidth, high-resolution XGA display, and comprehensive analysis tools, including Pinpoint™ triggering and Open Choice® software on Windows XP OS.
Testwall can supply the used Tektronix TDS6154C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS6154C.
