Rohde & Schwarz SGT100A
SGMA Vector RF Source, 1 MHz to 3 or 6 GHz
I/Q, pulse Modulation
0.001 Hz Frequency Resolution
< -30 dBc (level ≤ 8 dBm) Harmonics
< 500 µs Switching Speed
PCIe, LAN, USB Interfaces
| Attribute | Value |
|---|---|
| Modulation | I/Q, pulse |
| Frequency Resolution | 0.001 Hz |
| Harmonics | < -30 dBc (level ≤ 8 dBm) |
| Switching Speed | < 500 µs |
| Interfaces | PCIe, LAN, USB |
| Frequency Range | 1 MHz to 3 GHz (standard), 1 MHz to 6 GHz |
| Output Power | -120 to +17 dBm (PEP, spec.), +22 dBm CW (typ.) |
| SSB Phase Noise | < -126 dBc/Hz at 1 GHz, 20 kHz offset (-133 typ.) |
| Level Accuracy | < 0.5 dB (1 MHz to 3 GHz), < 0.9 dB (3 to 6 GHz) |
| Non-Harmonics | < -76 dBc (≤ 1.5 GHz), < -70 dBc (to 3 GHz), < -64 dBc (to 6 GHz) |
| Modulation Bandwidth | 60 MHz ARB (standard), up to 240 MHz |
| Timebase Aging | 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁷ per year |
| RF Output Connector | SMA female, rear panel |
| Dimensions | 246 × 52.5 × 401 mm |
| Weight | 4 kg |
Available configurations
| Model | Frequency range | Configuration |
| SGT100A-B106 | 1 MHz to 6 GHz | Vector signal generator |
Rohde & Schwarz SGT100A Options:
- SGT100A - SGT-KB106 - Frequency extension to 6 GHz
- SGT100A - SGT-B1 - Reference oscillator OCXO
- SGT100A - SGT-B88 - Extension unit
- SGT100A - SGT-K22 - Pulse modulation
- SGT100A - SGT-K90 - Phase coherent input/output
- SGT100A - SGT-K18 - Digital baseband connectivity
- SGT100A - SGT-K16 - Differential analog I/Q outputs
- SGT100A - SGT-K510 - ARB baseband generator, 32 Msample, 60 MHz RF bandwidth
- SGT100A - SGT-K511 - ARB memory extension to 256 Msample
- SGT100A - SGT-K512 - ARB memory extension to 1 Gsample
- SGT100A - SGT-K521 - ARB bandwidth extension to 120 MHz RF bandwidth
- SGT100A - SGT-K522 - ARB bandwidth extension to 160 MHz RF bandwidth
- SGT100A - SGT-K523 - ARB bandwidth extension to 240 MHz RF bandwidth
- SGT100A - SGT-K540 - Envelope tracking
- SGT100A - SGT-K541 - AM/AM AM/PM predistortion
- SGT100A - SGT-K543 - Envelope ARB
- SGT100A - SGT-K62 - Additive white Gaussian noise (AWGN)
- SGT100A - SGT-K240 - GSM/EDGE
- SGT100A - SGT-K241 - EDGE evolution
- SGT100A - SGT-K242 - 3GPP FDD
- SGT100A - SGT-K244 - GPS
- SGT100A - SGT-K246 - CDMA2000® incl. 1xEV-DV
- SGT100A - SGT-K247 - 1xEV-DO Rev. A
- SGT100A - SGT-K249 - IEEE 802.16
- SGT100A - SGT-K250 - TD-SCDMA
- SGT100A - SGT-K251 - TD-SCDMA enhanced BS/MS Tests
- SGT100A - SGT-K252 - DVB-H
- SGT100A - SGT-K253 - DAB/T-DMB
- SGT100A - SGT-K254 - IEEE 802.11a/b/g/n
- SGT100A - SGT-K255 - EUTRA/LTE
- SGT100A - SGT-K260 - Bluetooth® EDR
- SGT100A - SGT-K261 - Multicarrier CW signal generation
- SGT100A - SGT-K262 - Additive white Gaussian noise (AWGN)
- SGT100A - SGT-K266 - Galileo
- SGT100A - SGT-K268 - TETRA Release 2
- SGT100A - SGT-K283 - 3GPP FDD HSPA/HSPA+
- SGT100A - SGT-K284 - EUTRA/LTE Release 9, enhanced features
- SGT100A - SGT-K285 - EUTRA/LTE Release 10 (LTE Advanced)
- SGT100A - SGT-K286 - IEEE 802.11ac
- SGT100A - SGT-K287 - 1xEV-DO Rev. B
- SGT100A - SGT-K289 - NFC A/B/F
- SGT100A - SGT-K294 - GLONASS
- SGT100A - SGT-K407 - BeiDou
- SGT100A - SGT-K412 - LTE Release 11 + enhanced features
- SGT100A - SGT-K413 - LTE Release 12
- SGT100A - SGT-K414 - OFDM signal generation
- SGT100A - SGT-K415 - Cellular IoT (eMTC and NB-IoT)
- SGT100A - SGT-K416 - DVB-S2/DVB-S2X
- SGT100A - SGT-K417 - Bluetooth® 5.0
- SGT100A - SGT-K418 - Verizon 5GTF
- SGT100A - SGT-K419 - LTE release 13/14
- SGT100A - SGT-K442 - IEEE 802.11ax
- SGT100A - SGT-K443 - Cellular IoT enhancements
- SGT100A - SGT-K444 - 5G NR
- SGT100A - SGT-K200 - Waveform package, 1 waveform
- SGT100A - SGT-K200 - Waveform package, 5 waveforms
- SGT100A - SGT-K200 - Waveform package, 50 waveforms
- SGT100A - SGT-K300 - Pulse sequencing
- SGT100A - SGT-K301 - Enhanced pulse sequencing
- SGT100A - SGT-K308 - Direction finding
- SGT100A - SGT-K350 - DFS signal generation

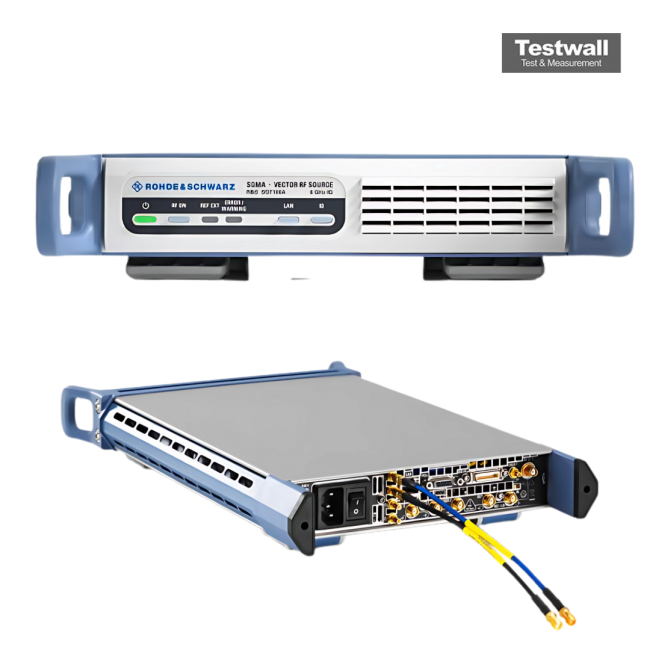

The Rohde & Schwarz SGT100A is a high-performance vector RF source covering 1 MHz to 3/6 GHz with industry-leading frequency and level switchover times of just 240 µs. It includes an integrated baseband generator supporting up to 160 MHz I/Q modulation bandwidth, ensuring exceptional RF performance in terms of EVM and ACLR.
Ideal for generating signals for LTE and LTE-Advanced digital standards, it delivers seamless and precise signal generation in a compact form factor, making it the smallest standalone solution up to 6 GHz.
Testwall can supply the used Rohde & Schwarz SGT100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SGT100A.
