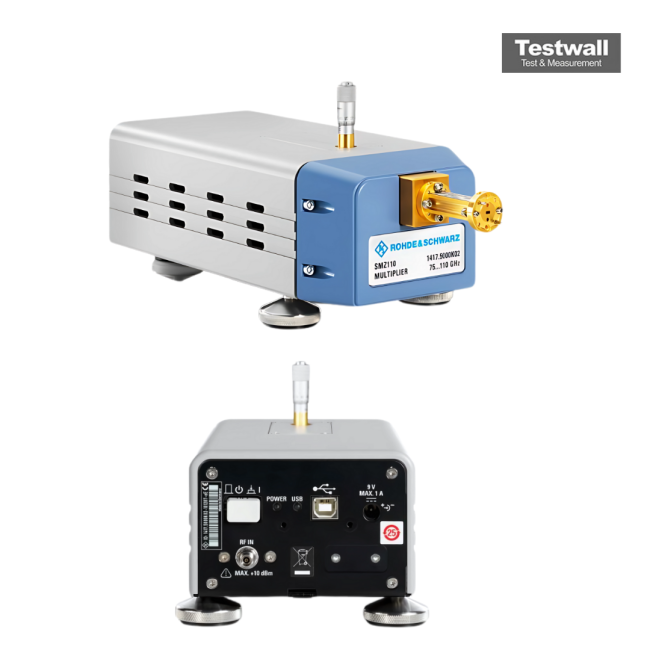

Rohde & Schwarz SMZ110
Frequency Multiplier, 75 GHz to 110 GHz
75 GHz to 110 GHz Frequency Range
+2 dBm (at 75 GHz), decreasing to approximately -10 dBm at 110 GHz Output Power (typical)
WR-10 (UG-387/U flange) Waveguide Interface
12.5 GHz to 18.33 GHz (from base signal generator) Input Frequency Range
x6 Multiplication Factor
| Attribute | Value |
|---|---|
| Frequency Range | 75 GHz to 110 GHz |
| Output Power (typical) | +2 dBm (at 75 GHz), decreasing to approximately -10 dBm at 110 GHz |
| Waveguide Interface | WR-10 (UG-387/U flange) |
| Input Frequency Range | 12.5 GHz to 18.33 GHz (from base signal generator) |
| Multiplication Factor | x6 |
| Input Power Required | +15 dBm to +23 dBm |
| Compatible Signal Generators | Rohde & Schwarz SMF100A, SMA100A, SMB100A, and other R&S signal generators with appropriate frequency and power output |
| Operating Temperature Range | 0 °C to +50 °C |
| Dimensions (W x H x D) | Compact waveguide head module design; mounts directly to signal generator RF output |
| Application | W-band signal generation, millimeter-wave testing, radar and wireless communications research, material characterization |
Rohde & Schwarz SMZ110 Options:
- SMZ110 - SMZ-B110M - Mechanically Controlled Attenuator for the R&S SMZ110
- SMZ110 - SMZ-B110E - Electronically Controlled Attenuator for the R&S SMZ110
- SMZ110 - SMZ-K1 - Software License for external PC software
| Model | SMZ110 |
|---|
The Rohde and Schwarz SMZ110 is a high-performance frequency multiplier covering a range from 50 GHz to 170 GHz, offering wide dynamic range and superior signal quality. It features user-friendly operation and consistent output levels.
This versatile unit is ideal for applications in automotive radar systems, advanced astronomy equipment, and radar interferometry for geophysical analysis.
Testwall can supply the used Rohde and Schwarz SMZ110, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz SMZ110.
