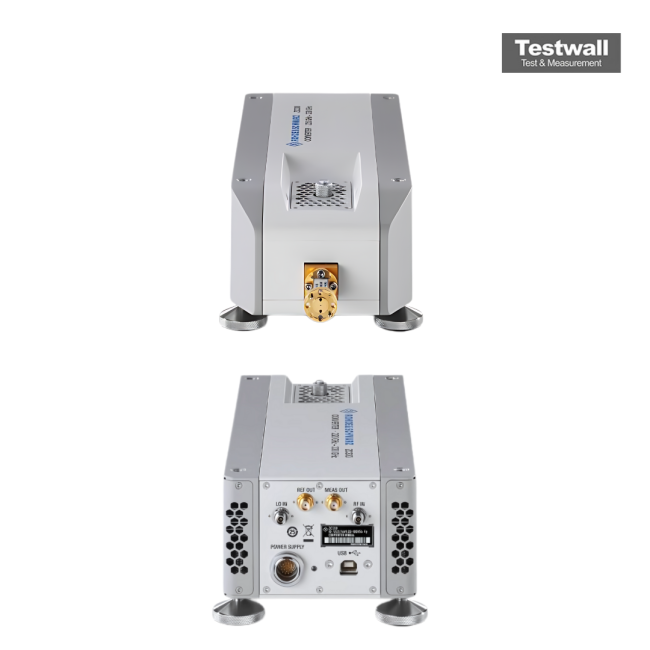

Rohde & Schwarz ZC170
| Attribute | Value |
|---|---|
| Frequency Range | 110 GHz to 170 GHz |
| Impedance | 50 Ohm |
| Connector Type | 1.0 mm (W) coaxial connector |
| Compatible Instruments | Rohde & Schwarz ZVA, ZVT, and ZNC vector network analyzers |
| Conversion Loss | Typically 10 dB |
| Output Power | Typically -5 dBm |
| Dynamic Range | Up to 80 dB |
| Interface | Direct connection to ZVA/ZVT test port via millimeter-wave frequency extender |
| Operating Temperature | +5°C to +40°C |
| Application | S-parameter measurements in the D-band (110–170 GHz) millimeter-wave frequency range |
Rohde & Schwarz ZC170 Options:
- ZC170 - R&S®ZV-WR06 (1307.8807.10) - Waveguide Calibration Kit WR06 without sliding match, compatible with converter R&S®ZC170
- ZC170 - R&S®ZV-WR06 (1307.8807.11) - Waveguide Calibration Kit WR06 with sliding match, compatible with converter R&S®ZC170
- ZC170 - R&S®ZVA-K8 - Converter Control Software
- ZC170 - R&S®ZCPS - Converter Power Supply (supplies up to two converters)
- ZC170 - R&S®ZCPSC (1323.8159.12) - Power Supply Cable for R&S®ZCPS, 1.2 m
- ZC170 - R&S®ZCPSC (1323.8159.16) - Power Supply Cable for R&S®ZCPS, 1.6 m
- ZC170 - R&S®ZCPSC (1323.8159.20) - Power Supply Cable for R&S®ZCPS, 2.0 m
- ZC170 - R&S®ZCSTC - Converter Set Transport Case
- ZC170 - R&S®ZV-Z193 - Test Cable, 3.5 mm (f) to 3.5 mm (m), length: 910 mm
- ZC170 - R&S®ZV-Z195 - Test Cable, 2.92 mm (f) to 2.92 mm (m), length: 910 mm
- ZC170 - R&S®ZCAW - Angled Wrench, for waveguide flange screws
- ZC170 - R&S®ZCTW - Angled Torque Wrench, for waveguide flange screws
- ZC170 - R&S®ZV-Z1000 - Torque Wrench, for waveguide flange screws
- ZC170 - R&S®MP80SET-RS - Micropositioner Platform for Converter
| Model | ZC170 |
|---|
The Rohde and Schwarz ZC170 is a D-band frequency converter module engineered for 110–170 GHz operations. It supports an input range of 9.167–14.167 GHz and utilizes a local oscillator (LO) ranging from 10.972–16.972 GHz. This unit offers a robust output power between 6–9 dBm and delivers a superior dynamic range of 90–105 dB, with exceptional trace stability under 0.3 dB and 4° phase variance, ideal for precise spectral measurements in complex RF systems.
Optimized for advanced RF applications, the ZC170 ensures reliable signal integrity and accurate analysis across its broad operational bandwidth.
Testwall can supply the used Rohde and Schwarz ZC170, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz ZC170.
