Rohde & Schwarz ZVK
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 119 dB |
| Output Power Range | -30 dBm to +3 dBm |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, stability factors |
| IF Bandwidth | 1 Hz to 500 kHz |
| Trace Noise | 0.004 dB rms at 10 Hz IF bandwidth |
| Connector Type | 3.5 mm (f) test port connectors |
| Number of Test Points | Up to 60,001 points per sweep |
| Operating System | Windows XP Embedded |
Rohde & Schwarz ZVK Options:
- ZVK - ZVR-B2 - Time Domain: Display and gating of measured values in the time domain and transformation back to the frequency domain
- ZVK - ZVR-B4 - Mixer Measurements: Independent configuration and control of external generators, internal generator and receiver; converter/mixer measurements, harmonics and spurious measurements
- ZVK - ZVR-B5 - Nonlinear Measurements: Measurement of n dB compression point and 2nd- or 3rd-order intercept points (SOI/TOI)
- ZVK - ZVR-B7 - Power Calibration: Power calibration to improve absolute amplitude accuracy of generator and receiver (power meter and sensor required)
- ZVK - ZVR-K9 - Virtual Embedding Networks: Adding virtual or correcting real existing networks by mathematical algorithms
- ZVK - FSE-B16 - Ethernet AUI Interface for internal PC
- ZVK - FSE-B16 - Ethernet BNC Interface for internal PC
- ZVK - FSE-B16 - Ethernet RJ45 Interface for internal PC
- ZVK - FSE-B17 - IEC/IEEE-Bus Interface for internal PC (in addition to two IEC/IEEE-bus interfaces provided as standard)
- ZVK - ZVK-B21 - Generator Step Attenuator PORT 1: Mechanical attenuator for generator path to PORT 1, attenuation 0 dB to 70 dB in 10 dB steps
- ZVK - ZVK-B22 - Generator Step Attenuator PORT 2: Mechanical attenuator for generator path to PORT 2, attenuation 0 dB to 70 dB in 10 dB steps
- ZVK - ZVK-B23 - Receiver Step Attenuator PORT 1: Mechanical attenuator for receiver path from PORT 1 and Input b1, includes additional test port Input b1
- ZVK - ZVK-B24 - Receiver Step Attenuator PORT 2: Mechanical attenuator for receiver path from PORT 2 and Input b2, includes additional test port Input b2
| Model | ZVK |
|---|

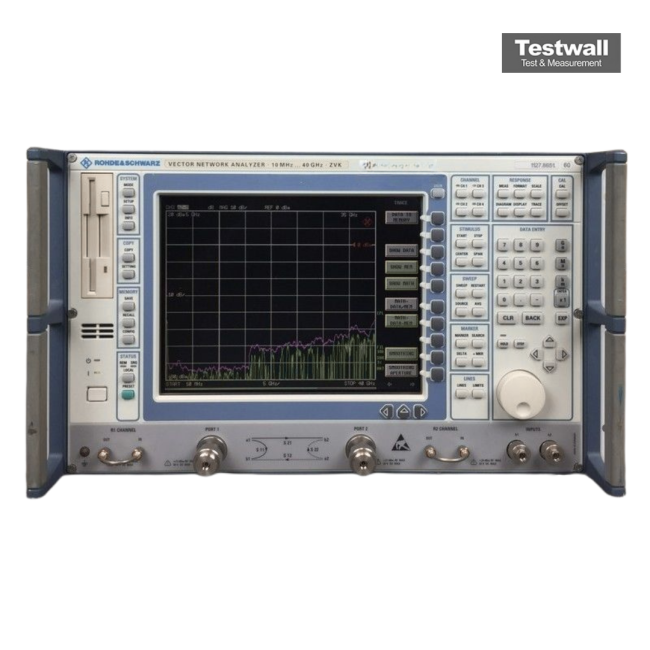

The Rohde & Schwarz ZVK Vector Network Analyser operates from 10MHz to 40GHz, with a frequency resolution of 100µHz and a dynamic range of at least 110dB. It features inherent noise levels below -110dBm and is equipped with 2.92mm male test port connectors. Integrated with a generator, two reference and two receiver channels, the ZVK is suitable for advanced RF and microwave testing.
This analyser supports bidirectional measurements and is ideal for power amplifier testing. Its modular configuration allows enhanced flexibility and direct access to reference and receiver channels.
Testwall can supply the used Rohde & Schwarz ZVK Vector Network Analyser, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVK Vector Network Analyser.
