Rohde & Schwarz ZVT820
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 8 |
| Dynamic Range | Up to 130 dB |
| Output Power | -10 dBm to +10 dBm |
| Measurement Speed | Up to 32 independent test ports with parallel measurement capability |
| Trace Noise | 0.001 dB RMS typical |
| IF Bandwidth | 1 Hz to 500 kHz |
| Number of Test Channels | Up to 16 independent channels |
| Connector Type | 3.5 mm (f) test port connectors |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
Rohde & Schwarz ZVT820 Options:
- ZVT820 - ZVAB-B4 - Oven quartz (OCXO)
- ZVT820 - ZVAB-K2 - Time domain
- ZVT820 - ZVA-K4 - Frequency conversion
- ZVT820 - ZVA-K5 - Mixer phase measurement
- ZVT820 - ZVA-K6 - True differential mode (for the R&S ZVT8 only)
- ZVT820 - ZVA-K7 - Pulsed measurements
- ZVT820 - ZVA-K9 - Mixer delay without LO access
- ZVT820 - ZVA-K17 - 5 MHz receiver bandwidth
- ZVT820 - ZVA-K27 - Internal pulse generators
- ZVT820 - ZVA-U116 - Upgrade CPU board to R&S FMR11 including upgrade to Windows Embedded Standard 7 (for R&S FMR6)
- ZVT820 - ZVA-U116 - Upgrade CPU board to R&S FMR11 including upgrade to Windows Embedded Standard 7 (for R&S FMR7/3, R&S FMR7/6)
- ZVT820 - ZVA-U116 - Upgrade CPU board to R&S FMR11 including upgrade to Windows Embedded Standard 7 (for R&S FMR9)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 1
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 2
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 3 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 4 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 5 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 6 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 7 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 8 (requires additional PORT option)
- ZVT820 - ZVT8-B63 - Additional PORT 3
- ZVT820 - ZVT8-B64 - Additional PORT 4 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B65 - Additional PORT 5 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B66 - Additional PORT 6 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B67 - Additional PORT 7 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B68 - Additional PORT 8 (requires all additional PORT options with lower port numbers)
- ZVT820 - WE1 - Extended warranty, one year
- ZVT820 - WE2 - Extended warranty, two years
- ZVT820 - CW1 - Extended warranty with calibration coverage, one year
- ZVT820 - CW2 - Extended warranty with calibration coverage, two years
- ZVT820 - AW1 - Extended warranty with accredited calibration coverage, one year
- ZVT820 - AW2 - Extended warranty with accredited calibration coverage, two years
| Model | ZVT820 |
|---|

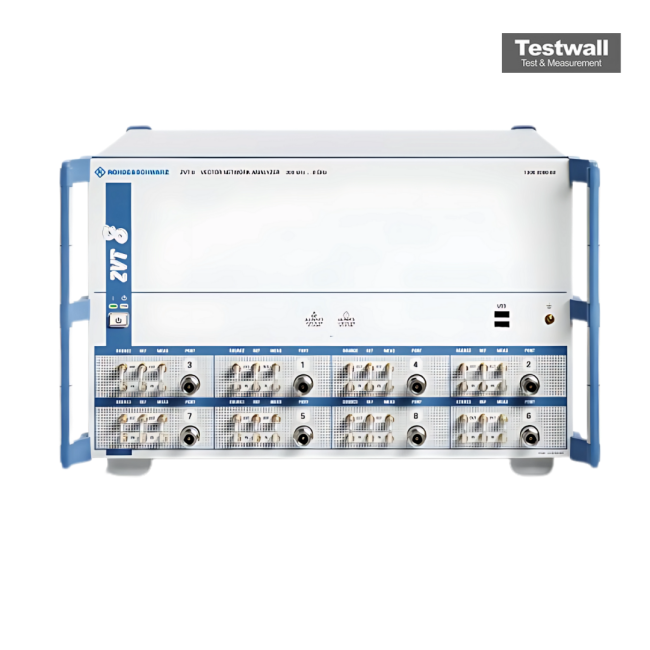

The Rohde and Schwarz ZVT820 is a high-performance Vector Network Analyzer (VNA) platform engineered for precision in wideband measurement up to millimeter-wave frequencies. It includes embedded error correction, fast sweep rates, high dynamic range, and compatibility with converter-based systems for multiport and pulsed testing scenarios.
Ideal for complex RF testing setups, the ZVT820 supports flexible multi-source configurations and is equipped for vector-error correction and calibration processes.
Testwall can supply the used Rohde and Schwarz ZVT820, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz ZVT820.
