Rohde & Schwarz AM300
2 Ch Arbitrary Waveform Generator
2 Channels
100 MSa/s Sample Rate
1 mVpp to 10 Vpp Amplitude
AM, FM, ΦM, FSK, PSK Modulation
14 bit Vertical Resolution
| Attribute | Value |
|---|---|
| Channels | 2 |
| Sample Rate | 100 MSa/s |
| Amplitude | 1 mVpp to 10 Vpp |
| Modulation | AM, FM, ΦM, FSK, PSK |
| Vertical Resolution | 14 bit |
| Frequency Range | 10 µHz to 35 MHz (sine), 50 MHz (square) |
| Waveforms | sine, square, ramp, triangle, pulse, noise, arbitrary |
| Arbitrary Memory | 256 kpts per channel |
| Rise/Fall Time | < 10 ns (< 5 ns square, 10 to 50 MHz) |
| Harmonic Distortion | < -65 dBc (to 1 MHz), < -40 dBc (to 35 MHz) |
| Sweep Modes | linear and log sweep |
| Timebase Aging | 10 MHz, < 1 × 10⁻⁶ per year |
| Output Impedance | 50 Ω |
| Interfaces | USB |
| Display | 5.4" color, 320 × 240 pixels |
| Dimensions | 219 × 147 × 350 mm |
| Weight | 6.2 kg |

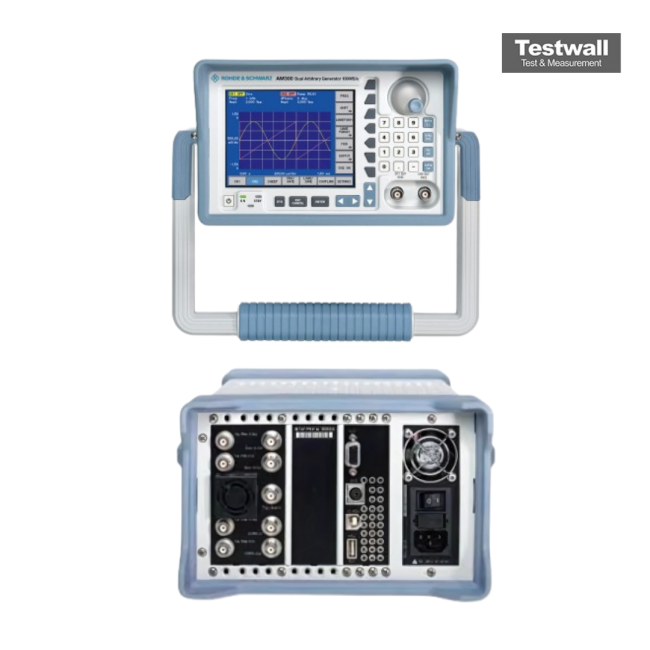

The Rohde & Schwarz AM300 is a dual-channel arbitrary function generator offering a 100 MSa/s sample rate, 14-bit vertical resolution, and up to 256K memory. It supports 35 MHz sine and 50 MHz square signal outputs.
It offers versatile waveform generation with AM, FM, φM, FSK, PSK modulation and customizable pulse widths from 20 ns to 9999 s with rise times below 10 ns.
Testwall can supply the used Rohde & Schwarz AM300, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz AM300.
