Rohde & Schwarz
Rohde & Schwarz CTH200A Radio Tester
380 MHz to 6 GHz Frequency Range
TETRA, P25, DMR, dPMR, NXDN, analog FM/AM Supported Standards
-60 dBm to +60 dBm RF Power Measurement Range
<0.1 ppm (with OCXO reference) Frequency Measurement Accuracy
20 Hz to 20 kHz Audio Frequency Response
| Attribute | Value |
|---|---|
| Frequency Range | 380 MHz to 6 GHz |
| Supported Standards | TETRA, P25, DMR, dPMR, NXDN, analog FM/AM |
| RF Power Measurement Range | -60 dBm to +60 dBm |
| Frequency Measurement Accuracy | <0.1 ppm (with OCXO reference) |
| Audio Frequency Response | 20 Hz to 20 kHz |
| Modulation Measurement | FM deviation, AM depth, phase modulation |
| Impedance | 50 Ohm |
| Display | 10.1-inch color touchscreen |
| Interfaces | USB, LAN (Ethernet), GPIB (optional) |
| Power Supply | AC 100 V to 240 V, 50/60 Hz; DC 12 V option available |
Rohde & Schwarz CTH200A Radio Tester Options:
- CTH200A - CTH-Z20 - Hardcase, for radio test set and accessories
- CTH200A - CTH-Z30 - 50 W Load, BNC Adapters and Cables
- CTH200A - WE1CTH - Extended Warranty, one year
- CTH200A - WE2CTH - Extended Warranty, two years
- CTH200A - WE3CTH - Extended Warranty, three years
- CTH200A - WE4CTH - Extended Warranty, four years
- CTH200A - CW1CTH - Extended Warranty with Calibration Coverage, one year
- CTH200A - CW2CTH - Extended Warranty with Calibration Coverage, two years
- CTH200A - CW3CTH - Extended Warranty with Calibration Coverage, three years
- CTH200A - CW4CTH - Extended Warranty with Calibration Coverage, four years
| Model | CTH200A |
|---|

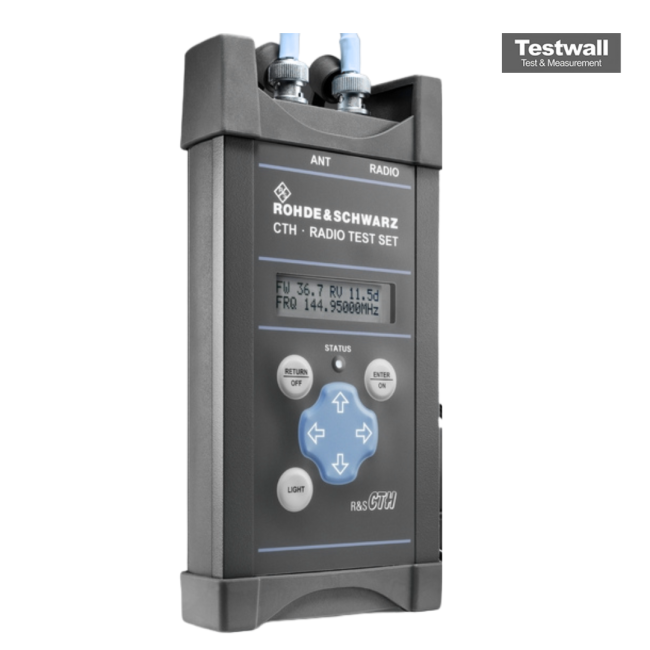

The Rohde & Schwarz CTH200A is a portable, all-weather radio test set designed for reliable analog FM radio system testing, even in tough outdoor conditions. It features extensive measurement capabilities in a rugged, ergonomic design.
Perfect for field operations, the CTH200A ensures precise results in harsh environments, making it an ideal solution for mobile radio diagnostics and maintenance tasks.
Testwall can supply the used Rohde & Schwarz CTH200A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz CTH200A.
