Rohde & Schwarz DVMD
| Attribute | Value |
|---|---|
| Function | DVB Signal Monitoring and Measurement |
| Supported Standards | DVB-S, DVB-S2, DVB-C, DVB-T, DVB-T2, DVB-H, MPEG-2, MPEG-4 |
| Input Frequency Range | 950 MHz to 2150 MHz (satellite), 47 MHz to 862 MHz (terrestrial/cable) |
| Transport Stream Analysis | Full MPEG-2 Transport Stream analysis including PCR, PID, and service monitoring |
| Measurement Parameters | MER, BER (pre/post Viterbi), C/N, signal level, constellation diagram |
| Interface | ASI input/output, RF input, Ethernet (LAN), USB |
| Display | Built-in color LCD display for real-time signal and spectrum visualization |
| Compliance Monitoring | ETR 290 Priority 1, 2, and 3 error monitoring |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Operating Temperature | 0°C to +45°C (32°F to 113°F) |
Rohde & Schwarz DVMD Options:
- DVMD - B1 - Software Stream Explorer™
- DVMD - B5 - Option alarm lines and parallel interface
- DVMD - DCV - Documentation of calibration values
| Model | DVMD |
|---|

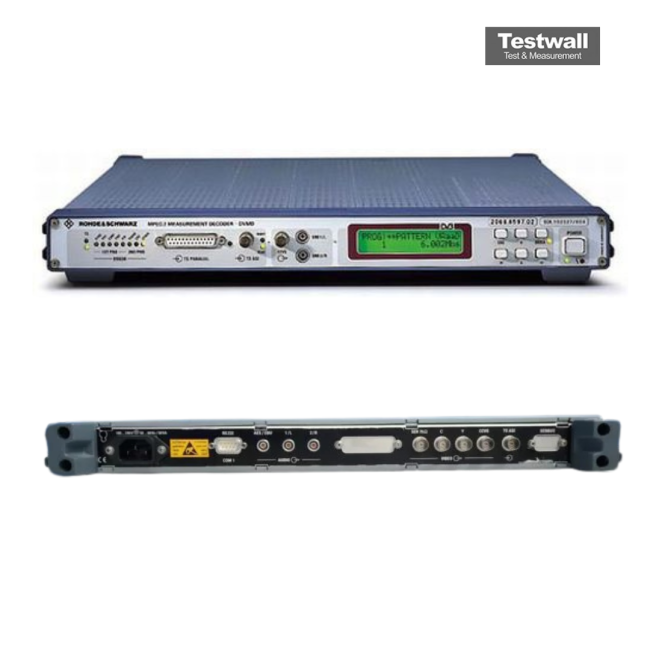

The Rohde & Schwarz DVMD MPEG2 Measurement Decoder is designed to monitor and analyze MPEG2 transport streams with real-time precision. It combines a decoder and analyzer in one unit, functioning without a PC system. This efficient setup delivers comprehensive data on stream content and quality, making it an ideal waveform monitor for digital television.
It is highly effective for checking MPEG2 signals in development, production, and quality management. Its rapid measurements and deep analysis capabilities streamline troubleshooting and system optimization.
Testwall can supply the used Rohde & Schwarz DVMD MPEG2 Measurement Decoder, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz DVMD MPEG2 Measurement Decoder.
