Tektronix TSG95
| Attribute | Value |
|---|---|
| Output Frequency Range | 1 Hz to 6 GHz |
| Frequency Resolution | 1 Hz |
| Output Power Level | -127 dBm to +13 dBm |
| Output Impedance | 50 Ohms |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Frequency Accuracy | ±1 ppm (with internal timebase) |
| Harmonic Distortion | -30 dBc typical |
| Power Level Accuracy | ±1 dB |
| Interface / Connectivity | GPIB (IEEE-488) |
| Power Requirements | 90–250 VAC, 48–66 Hz |
Tektronix TSG95 Options:
- TSG95 - 01 - Rechargeable NiCad battery pack
- TSG95 - A1 - Universal Euro 220 V AC adapter
- TSG95 - A2 - United Kingdom 240 V AC adapter
- TSG95 - A3 - Australia 240 V AC adapter
- TSG95 - A6 - Japan 100 V AC adapter
| Model | TSG95 |
|---|

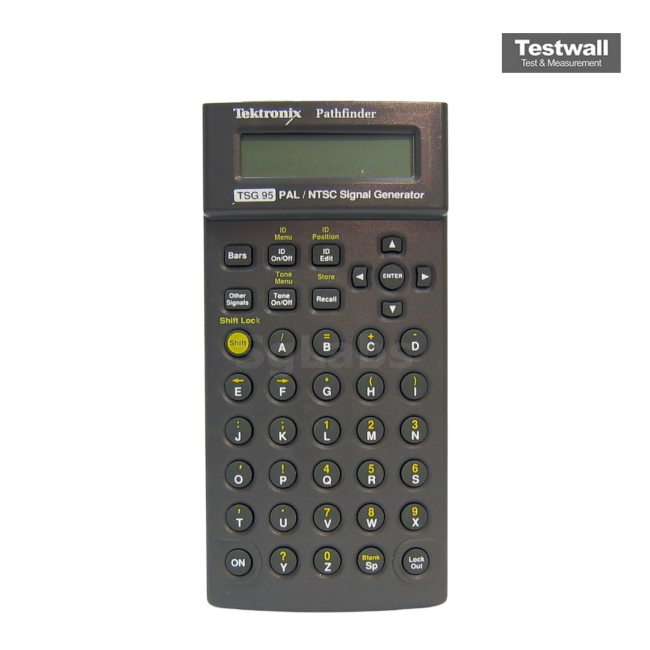

The Tektronix TSG95 is a compact PAL/NTSC Signal Generator delivering 20 PAL and 16 NTSC test signals including color bars, multiburst, grey scales, and convergence patterns. It supports message insertion with alphanumeric keypad and offers four preset configurations. Integrated stereo audio testing ranges from 50 Hz to 20 kHz with selectable tone levels and click sequences for channel verification.
Ideal for installation, field production, and analog video troubleshooting, it runs on AC, AA batteries, or NiCad packs. The TSG95 simplifies signal verification and system checks.
Testwall can supply the used Tektronix TSG95, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TSG95.
