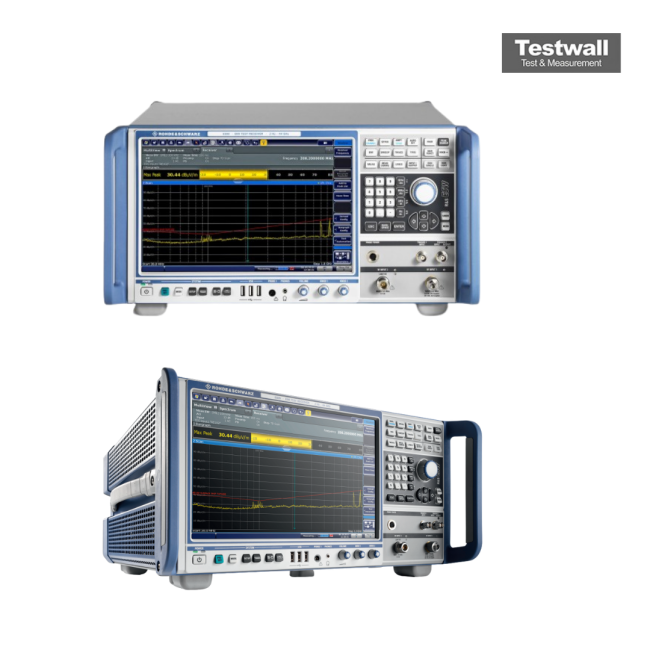

Rohde & Schwarz ESW44
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz – 44 GHz |
| Frequency Resolution | 0.001 Hz |
| Dynamic Range (DANL) | -170 dBm (1 Hz bandwidth, typical) |
| Phase Noise | -130 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Input Impedance | 50 Ω |
| Maximum Input Level (RF) | +30 dBm (1 W) |
| Measurement Receivers | Two independent measurement receivers for simultaneous EMI testing |
| Detector Types | Peak, Quasi-peak, Average, RMS, CISPR Average, RMS Average |
| IF Bandwidths | 10 Hz – 10 MHz (CISPR bandwidths: 200 Hz, 9 kHz, 120 kHz, 1 MHz) |
| Compliance Standards | CISPR 16-1-1, MIL-STD-461, DO-160, VDE, FCC |
Rohde & Schwarz ESW44 Options:
- ESW44 - ESW-B4 - OCXO Precision Frequency Reference
- ESW44 - ESW-B8 - Resolution Bandwidth > 10 MHz (export licence required)
- ESW44 - ESW-B10 - External Generator Control
- ESW44 - ESW-B18 - Spare Solid State Drive (removable hard drive)
- ESW44 - ESW-B24 - Low Noise Amplifier, 150 kHz to 44 GHz
- ESW44 - FSW-B33 - USB Mass Memory Write Protection
- ESW44 - ESW-K7 - Analog Modulation Analysis for AM/FM/φM
- ESW44 - ESW-K33 - Security Write Protection of solid state drive
- ESW44 - ESW-K55 - 80 MHz Real-Time Measurement Application, POI > 15 µs
| Model | ESW44 |
|---|
The Rohde & Schwarz ESW44 EMI Test Receiver offers an ultra-wide frequency range from 2 Hz to 44 GHz, combined with exceptional dynamic range and accuracy. Designed for compliance with CISPR, EN, MIL-STD-461, DO-160, and FCC standards, it supports ultrafast FFT-based time domain scanning and advanced spectrum analysis. With features like MultiView display, 21 integrated filters, high TOI, and low DANL, the ESW44 ensures precise, high-speed EMI measurements.
It is equipped with notch and highpass filters to isolate ISM band disturbances and delivers optimal results for EMI certification across automotive and aerospace sectors. Touchscreen and structured menus make operation intuitive.
Testwall can supply the used Rohde & Schwarz ESW44, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESW44.
