Rohde & Schwarz FMU36
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 36 GHz |
| Measurement Modes | Spectrum Analysis, IQ Analysis, Analog Demodulation, Digital Demodulation |
| Display Average Noise Level (DANL) | -165 dBm (typ.) at 1 GHz with preamplifier |
| Phase Noise | -105 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Maximum Input Power | +30 dBm (continuous), +43 dBm (peak, ≤ 10 µs) |
| Analysis Bandwidth | Up to 160 MHz (real-time bandwidth) |
| Dynamic Range | Up to 78 dB (third-order intercept point: +20 dBm typ. at 1 GHz) |
| Connectivity & Interfaces | USB, LAN (Ethernet), GPIB (optional), external trigger input/output |
| Display | 12.1-inch XGA color touchscreen display |
Rohde & Schwarz FMU36 Options:
- FMU36 - FSQ-B100 - I/Q Memory Extension to 235 Msample
- FMU36 - FSQ-B102 - I/Q Memory Extension to 705 Msample
- FMU36 - FSU-B4 - Low-Aging OXCO
- FMU36 - FMU-Z1 - High Impedance Probe
- FMU36 - FS-K5 - Modulation and spectrum measurements on GSM/EDGE base station and mobile station signals
- FMU36 - FS-K7 - AM/FM/PM demodulator
- FMU36 - FS-K8 - Bluetooth® transmitter measurements
- FMU36 - FS-K9 - Power sensor measurements (supports the NRP-Z11/-Z21 with NRP-Z4 USB adapter)
- FMU36 - FS-K72 - Modulation and code domain power measurements in line with 3GPP TS 24.141 on base station signals (node B)
- FMU36 - FS-K73 - Modulation and code domain power measurements in line with 3GPP TS 25.121 on mobile station signals (UE)
- FMU36 - FS-K74 - HSDPA extension for FS-K72
- FMU36 - FS-K76 - Modulation and code domain power measurements on TD-SCDMA base station signals
- FMU36 - FS-K77 - Modulation and code domain power measurements on TD-SCDMA mobile station signals (UE)
- FMU36 - FS-K82 - Modulation and code domain power measurements in line with CDMA2000®/3GPP2 on base station signals (also for measurements on IS-95/cdmaOne signals)
- FMU36 - FS-K83 - Modulation and code domain power measurements on CDMA2000®/1xEV-DV mobile station signals (UE)
- FMU36 - FS-K84 - Modulation and code domain power measurements on CDMA2000®/1xEV-DO mobile station signals (UE)
- FMU36 - FS-K85 - Modulation and code domain power measurements in line with CDMA2000®/1xEV-DO on base station signals
- FMU36 - FSQ-K91 - Modulation measurements on WLAN signals in line with IEEE 802.11 a/b/g/j
- FMU36 - FSQ-K92 - Modulation measurements on WiMAX OFDM signals in line with IEEE 802.16-2004
- FMU36 - FSQ-K93 - Modulation measurements on WiMAX OFDMA signals in line with IEEE 802.16e
| Model | FMU36 |
|---|

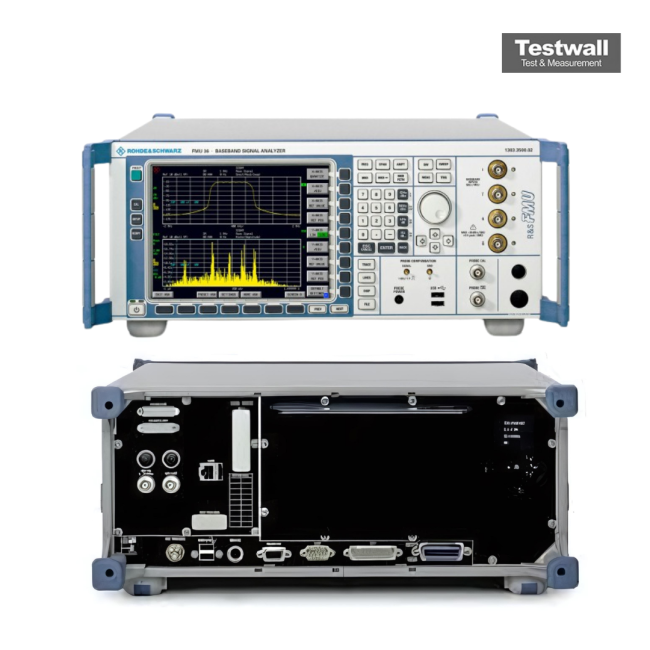

The Rohde & Schwarz FMU36 is an FFT-based spectrum analyzer with a 36 MHz I/Q bandwidth, offering precise analog baseband input for both balanced and unbalanced signals with impedance options of 50 Ω or 1 MΩ. It includes a powerful time domain analyzer, vector signal analyzer functionality, and supports up to 705 Msample I/Q memory.
With a typical noise floor of < 4 nV [1 Hz], I/Q imbalance of < 0.1 dB, and signal-to-noise ratio > 143 dB [1 Hz], the FMU36 delivers unmatched performance and reliability in detailed signal analysis.
Testwall can supply the used Rohde & Schwarz FMU36, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FMU36.
