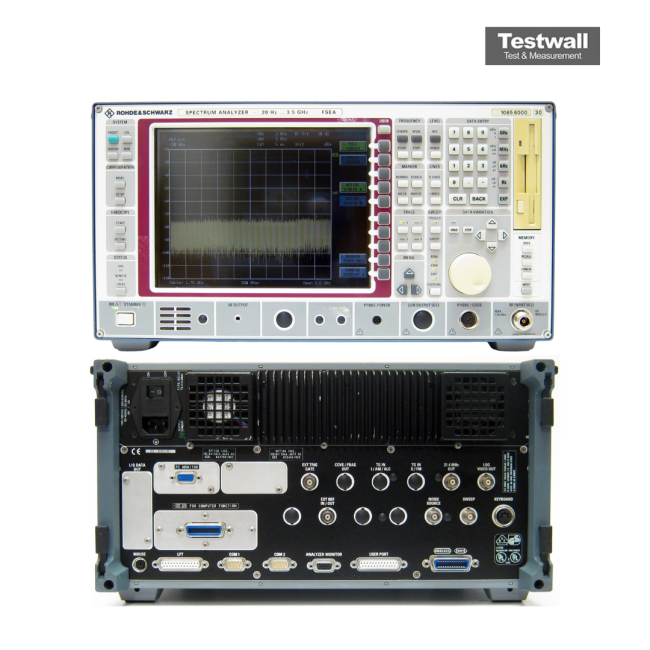

Rohde & Schwarz FSEA30
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 3.5 GHz |
| Resolution Bandwidth | 1 Hz to 10 MHz |
| Phase Noise | -130 dBc/Hz at 10 kHz offset (typical) |
| Displayed Average Noise Level (DANL) | -155 dBm (typical, with preamplifier) |
| Input Impedance | 50 Ohms |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 100 dB |
| Sweep Time | 2.5 ms to 16000 s |
| Video Bandwidth | 1 Hz to 10 MHz |
| Interface / Connectivity | IEEE 488 (GPIB), RS-232 |
Rohde & Schwarz FSEA30 Options:
- FSEA30 - FSE-B2 - 7-GHz Frequency Extension
- FSEA30 - FSE-B4 - Low Phase Noise and OCXO
- FSEA30 - FSE-B5 - FFT Filter
- FSEA30 - FSE-B7 - Vector Signal Analyzer
- FSEA30 - FSE-B8 - Tracking Generator 3.5 GHz
- FSEA30 - FSE-B9 - Tracking Generator 3.5 GHz with I/Q Modulator
- FSEA30 - FSE-B12 - Switchable Attenuator for Tracking Generator
- FSEA30 - FSE-B13 - 1-dB Attenuator
- FSEA30 - FSE-B15 - Controller
- FSEA30 - FSE-B16 - Ethernet Interface
- FSEA30 - FSE-B17 - 2nd IEC/IEEE-Bus Interface
- FSEA30 - FSE-B18 - Removable Harddisk
- FSEA30 - FSE-B19 - Second Harddisk for FSE-B18
- FSEA30 - FSE-B22 - Increased Level Accuracy up to 2 GHz
- FSEA30 - FSE-B23 - Broadband Output 741.4 MHz
- FSEA30 - FS-K3 - Noise Measurement Software
- FSEA30 - FSE-K4 - Phase Noise Measurement Software
- FSEA30 - FSE-K10/K11 - GSM Application Firmware
| Model | FSEA30 |
|---|
The Rohde & Schwarz FSEA30 Spectrum Analyzer offers a frequency range of 20 Hz to 3.5 GHz with resolution bandwidths from 1 Hz to 10 MHz. Key features include low phase noise (-123 dBc/Hz at 10 kHz offset), OCXO stability, and FFT filter for precise digital communication analysis.
Designed for both general-purpose and high-performance RF testing, it includes gated sweep, internal RF trigger, and AM/FM audio demodulation with speaker output. Typical noise floor reaches -150 dBm with a 1 dB compression point of +10 dBm.
Testwall can supply the used Rohde & Schwarz FSEA30, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSEA30.
