Rohde & Schwarz

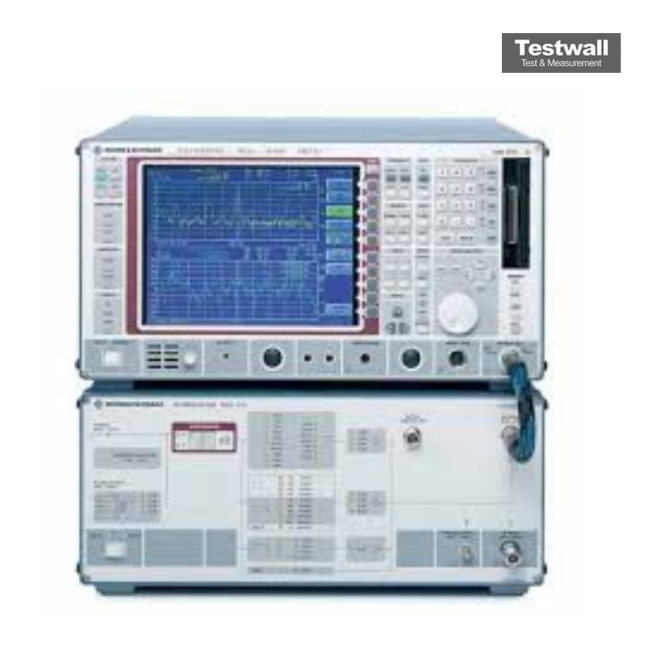

Rohde & Schwarz FSET22
100Hz To 22GHz Test Receiver
20 Hz – 22 GHz Frequency Range
10 Hz – 10 MHz Resolution Bandwidth
-150 dBm (typical, at 1 GHz) Display Average Noise Level (DANL)
-113 dBc/Hz at 10 kHz offset (at 1 GHz carrier) Phase Noise
50 Ohm Input Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 22 GHz |
| Resolution Bandwidth | 10 Hz – 10 MHz |
| Display Average Noise Level (DANL) | -150 dBm (typical, at 1 GHz) |
| Phase Noise | -113 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Input Impedance | 50 Ohm |
| Maximum Input Level (RF Input) | +30 dBm |
| Third-Order Intercept Point (TOI) | +15 dBm (typical) |
| Frequency Reference | Internal/External 10 MHz reference oscillator |
| Dynamic Range | Up to 100 dB |
| RF Input Connector | N-type female (50 Ohm) |
| Model | FSET22 |
|---|
The Rohde & Schwarz FSET22 Test Receiver offers a frequency range from 100Hz to 22GHz, delivering high sensitivity and precise spectrum analysis for advanced testing applications.
It supports wide dynamic range, high-speed measurements, and EMI compliance testing for military and commercial environments.
Testwall can supply the used Rohde & Schwarz FSET22, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSET22.
