Rohde & Schwarz FSH20
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 20 GHz |
| Display | 6.5-inch color TFT LCD touchscreen |
| Dynamic Range | Up to 110 dB |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| DANL (Displayed Average Noise Level) | -161 dBm (typical, with preamplifier) |
| Battery Operating Time | Up to 4 hours with internal battery pack |
| Weight | Approximately 3.3 kg (7.3 lbs) |
| Interfaces | USB, LAN (Ethernet), SD card slot |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
| Model | FSH20 |
|---|

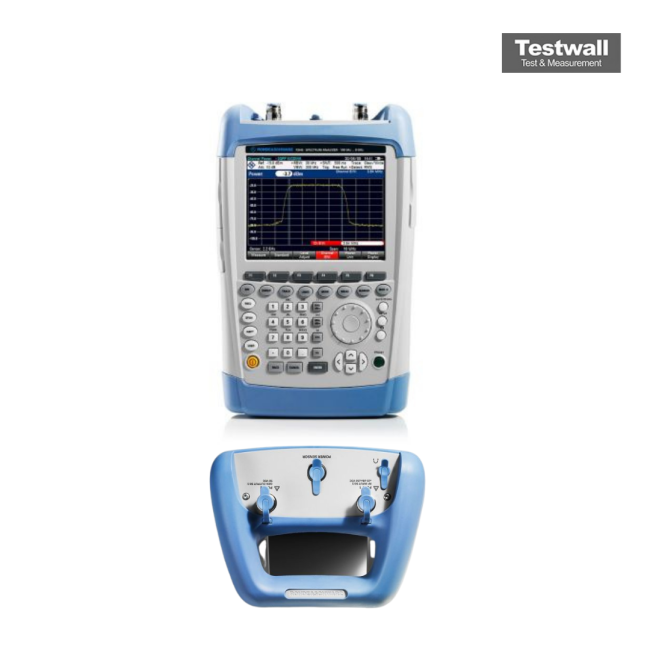

The Rohde & Schwarz FSH20 is a compact and portable spectrum analyzer covering frequencies from 9 kHz to 20 GHz. It features a resolution bandwidth of 1 Hz, a typical DANL of -142 dBm (-155 dBm with preamplifier), and a 14 cm high-resolution color LCD. It includes a tracking generator, preamplifier, VSWR bridge, and vector measurements as options. Data can be transferred via LAN or USB, and the analyzer offers up to 3 hours of battery life, weighing only 2.5 kg.
Ideal for field and lab use, the FSH20 supports GSM/EDGE/3GPP-WCDMA/CDMA2000/1xEVDO standards, with audio output through a 3.5mm jack and connectivity for a power sensor. Optional features enhance its versatility for various RF analysis tasks.
Testwall can supply the used Rohde & Schwarz FSH20, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH20.
