Rohde & Schwarz FSH3-03
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Resolution Bandwidth | 100 Hz to 1 MHz |
| Display Range | 100 dB |
| Reference Level Range | -20 dBm to +20 dBm |
| Phase Noise | < -90 dBc/Hz at 10 kHz offset |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +20 dBm (100 mW) |
| Battery Operating Time | Approximately 3 hours with standard battery pack |
| Display | Transflective color LCD, 320 x 240 pixels (QVGA) |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
Rohde & Schwarz FSH3-03 Options:
- FSH3-03 - FSH-B1 - Distance-to-fault Measurement for R&S FSH3, comprises 1 m cable and calibration termination, R&S FSH-Z2 required
| Model | FSH3-03 |
|---|

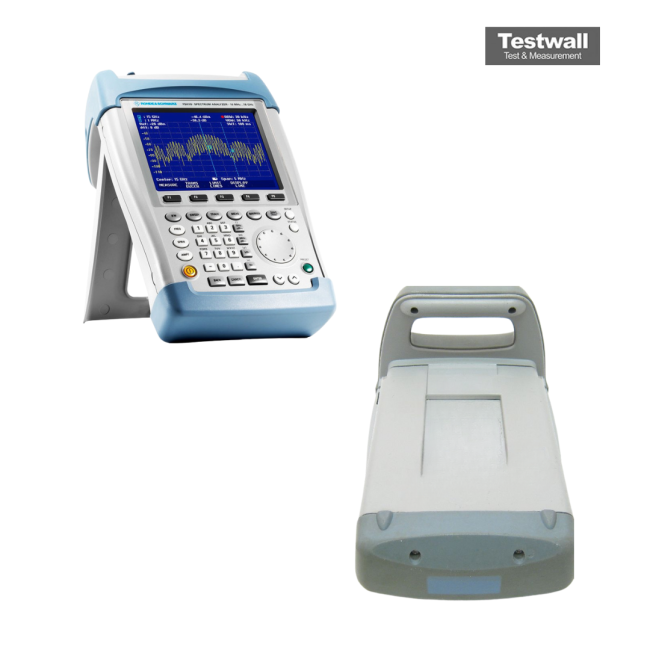

The Rohde & Schwarz FSH3/03 is a compact 3 GHz spectrum analyzer with a frequency range from 100 kHz to 3 GHz, 100 Hz to 1 MHz resolution bandwidth, and noise floor display down to -135 dBm. It features <–100 dBc/Hz phase noise at 100 kHz, amplitude accuracy under 1.5 dB, and dynamic range from –80 dBm to +20 dBm. The analyzer includes a 14 cm color LCD, RS-232 data transfer, and internal storage for 256 traces.
Designed for portable use, the FSH3/03 offers a 4-hour battery life, audio output, and power sensor connectivity. It supports quick diagnostics and field measurements with high precision.
Testwall can supply the used Rohde & Schwarz FSH3/03, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH3/03.
