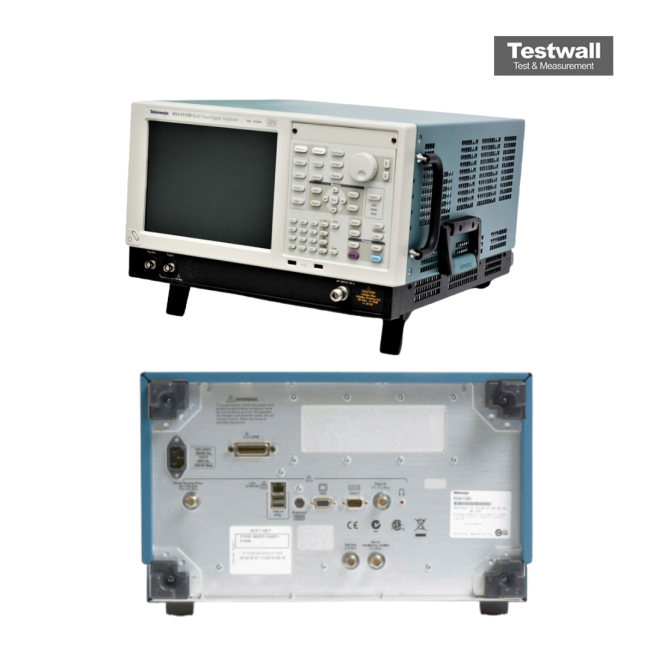

Tektronix RSA5115B
1Hz - 15 GHz Real Time Spectrum Analyser
1 Hz to 15 GHz Frequency Range
110 MHz Real-Time Bandwidth
-161 dBm/Hz (typical, 1 GHz, preamp on) Displayed Average Noise Level (DANL)
-106 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
±0.5 dB (typical) Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 15 GHz |
| Real-Time Bandwidth | 110 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical, 1 GHz, preamp on) |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Real-Time Seamless Capture | Gapless capture and analysis with 100% probability of intercept for events ≥ 100 µs |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Display | 15.4-inch XGA color LCD touchscreen display |
Tektronix RSA5115B Options:
- RSA5115B - Opt. B25 - 25 MHz Acquisition Bandwidth (no-cost option)
- RSA5115B - Opt. B40 - 40 MHz Acquisition Bandwidth
- RSA5115B - Opt. B85 - 85 MHz Acquisition Bandwidth
- RSA5115B - Opt. B125 - 125 MHz Acquisition Bandwidth
- RSA5115B - Opt. B16x - 165 MHz Acquisition Bandwidth
- RSA5115B - Opt. B85HD - 85 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5115B - Opt. B125HD - 125 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5115B - Opt. B16xHD - 165 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5115B - Opt. 300 - High performance real time (Opt. 09 needed for performance improvement)
- RSA5115B - Opt. 09 - Enhanced Real Time
- RSA5115B - Opt. 10 - AM/FM/PM Modulation and Audio Measurements
- RSA5115B - Opt. 11 - Phase Noise / Jitter Measurement
- RSA5115B - Opt. 12 - Settling Time (Frequency and Phase)
- RSA5115B - Opt. 14 - Noise Figure and Gain (Internal preamp recommended)
- RSA5115B - Opt. 20 - Pulse Measurements
- RSA5115B - Opt. 21 - General Purpose Modulation Analysis
- RSA5115B - Opt. 22 - Flexible OFDM Analysis
- RSA5115B - Opt. 23 - WLAN 802.11a/b/g/j/p measurement application
- RSA5115B - Opt. 24 - WLAN 802.11n measurement application (requires Opt. 23)
- RSA5115B - Opt. 25 - WLAN 802.11ac measurement application (requires Opt. 24)
- RSA5115B - Opt. 26 - APCO P25 measurement application
- RSA5115B - Opt. 27 - Bluetooth Basic LE Tx Measurements
- RSA5115B - Opt. 28 - LTE Downlink RF measurements
- RSA5115B - Opt. 31 - Bluetooth 5 Measurements (requires Opt. 27)
- RSA5115B - Opt. 32 - EMC pre-compliance and troubleshooting
- RSA5115B - Opt. MAP - Mapping and signal strength
- RSA5115B - Opt. 51 - Internal Preamp, 1 MHz to 15/26.5 GHz, RSA5115B/5126B only
- RSA5115B - Opt. 53 - Memory Extension, 4 GB Acquisition Memory Total
- RSA5115B - Opt. 54 - Signal Classification and Survey
- RSA5115B - Opt. 56 - Removable SSD, incompatible with Opt. 59
- RSA5115B - Opt. 59 - Internal HDD, incompatible with Opt. 56 (no cost option)
- RSA5115B - Opt. 65 - Digital I and Q outputs
- RSA5115B - Opt. 66 - Zero-span analog output
- RSA5115B - Opt. 6566 - Digital I and Q outputs and Zero-span analog output
- RSA5115B - Opt. PFR - Precision Frequency Reference
- RSA5115B - Opt. A0 - North America power plug (115 V, 60 Hz)
- RSA5115B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- RSA5115B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- RSA5115B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- RSA5115B - Opt. A4 - North America power plug (240 V, 50 Hz)
- RSA5115B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- RSA5115B - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- RSA5115B - Opt. A10 - China power plug (50 Hz)
- RSA5115B - Opt. A11 - India power plug (50 Hz)
- RSA5115B - Opt. A12 - Brazil power plug (60 Hz)
- RSA5115B - Opt. A99 - No power cord
- RSA5115B - Opt. L0 - English manual
- RSA5115B - Opt. L5 - Japanese manual
- RSA5115B - Opt. L7 - Simplified Chinese manual
- RSA5115B - Opt. L10 - Russian manual
- RSA5115B - Opt. C3 - Calibration Service 3 Years
- RSA5115B - Opt. C5 - Calibration Service 5 Years
- RSA5115B - Opt. CA1 - Single Calibration or Functional Verification
- RSA5115B - Opt. D1 - Calibration Data Report
- RSA5115B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA5115B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA5115B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- RSA5115B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- RSA5115B - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | RSA5115B |
|---|
The Tektronix RSA5115B Real Time Signal Analyzer integrates high-performance spectrum analysis, vector signal analysis, and advanced real-time features into one powerful platform. It boasts a +17 dBm 3rd order intercept at 2 GHz, ±0.3 dB amplitude accuracy to 3 GHz, and a displayed average noise level of –157 dBm/Hz at 2 GHz.
Engineered for precision, it supports high-speed 1 GHz sweeps with 10 kHz RBW under 1 second, delivers 80 dB spurious-free dynamic range with HD options, and includes internal preamp for enhanced sensitivity.
Testwall can supply the used Tektronix RSA5115B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA5115B
