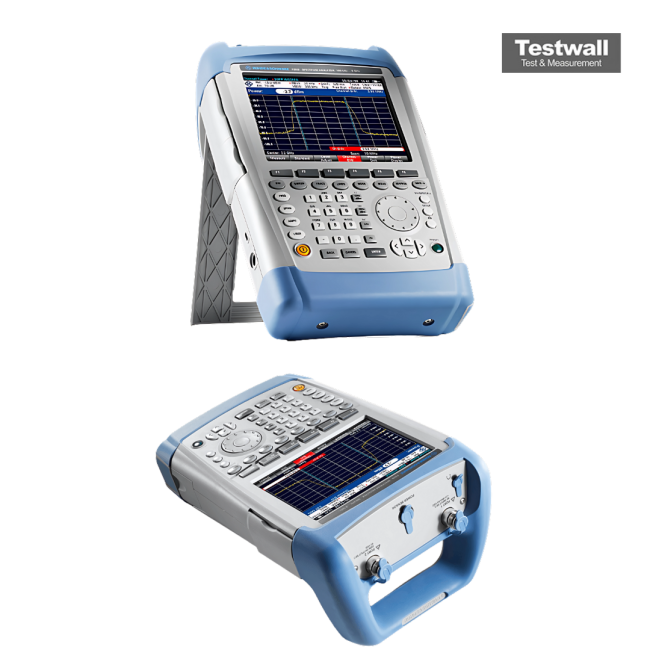

Rohde & Schwarz FSH4-14 3.6 GHz Handheld Spectrum/Preamp/Tracking Gen, Type N (f)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3.6 GHz |
| Connector Type | Type N (Female) |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Dynamic Range | Up to 95 dB |
| Displayed Average Noise Level (DANL) | -144 dBm (typical) at 1 GHz |
| Preamplifier | Built-in low-noise preamplifier included |
| Tracking Generator | Integrated tracking generator, 100 kHz to 3.6 GHz |
| Phase Noise | -95 dBc/Hz at 10 kHz offset (at 1 GHz) |
| Battery Life | Approximately 3 hours with internal Li-Ion battery |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels (VGA) |
Rohde & Schwarz FSH4-14 3.6 GHz Handheld Spectrum/Preamp/Tracking Gen, Type N (f) Options:
- FSH4-14 - R&S HA-Z222 - Carrying holster
- FSH4-14 - R&S HA-Z201 - AC adapter
- FSH4-14 - R&S HA-Z202 - Car adapter (order number 1309.6117.00)
- FSH4-14 - R&S FSH-Z206 - Replacement battery, approx. 6 Ah capacity, 4.5 hours operating time
- FSH4-14 - R&S HA-Z203 - External battery charger (order number 1309.6123.00)
- FSH4-14 - R&S HA-Z204 - Lithium ion battery
- FSH4-14 - R&S TS-EMF - Isotropic antenna (order number 1158.9295.13)
- FSH4-14 - R&S HA-Z240 - GPS receiver (order number 1309.6700.02)
- FSH4-14 - R&S FSH-K9 - Power sensor option
- FSH4-14 - R&S FSH-K41 - Cable fault identification option
- FSH4-14 - R&S FSH-K40 - Remote control option
| Model | FSH4-14 |
|---|
The Rohde & Schwarz FSH4/14 is a handheld spectrum analyzer up to 3.6 GHz, equipped with a built‑in preamplifier and tracking generator. It spans 9 kHz–3.6 GHz with RBW from 100 Hz to 3 MHz, shows a noise floor down to –141 dBm and phase noise below –120 dBc. Features include a 14 cm color LCD, power‑sensor connector, LAN/USB data transfer, and 4.5‑hour battery life.
Designed for field technicians, it delivers clear audio via 3.5 mm jack, weighs only 2.5 kg, and supports optional GSM/EDGE/3GPP‑WCDMA/CDMA2000/1xEVDO software. A variant with an integrated transmission bridge is available (FSH4/24).
Testwall can supply the used Rohde & Schwarz FSH4/14, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH4/14.
