Rohde & Schwarz FSH4 (model .24)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3.6 GHz |
| Display | 6.5-inch color TFT LCD (640 x 480 pixels) |
| Dynamic Range | >95 dB |
| Phase Noise | <-100 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| DANL (Displayed Average Noise Level) | -144 dBm (typical, 1 Hz RBW, preamp on) |
| Battery Operating Time | Up to 3 hours with standard battery pack |
| Impedance | 50 Ohm |
| Weight | Approximately 2.9 kg (6.4 lbs) with battery |
| Interface / Connectivity | USB, LAN (Ethernet), RS-232 |
Rohde & Schwarz FSH4 (model .24) Options:
- FSH - B1 - Distance-to-Fault Measurement (includes 1 m cable, R&S FSH-Z2 required)
- FSH - K1 - Remote Control via RS-232-C
- FSH - K2 - Vector Transmission and Reflection Measurements
- FSH - K3 - Receiver Mode
| Model | FSH4 |
|---|

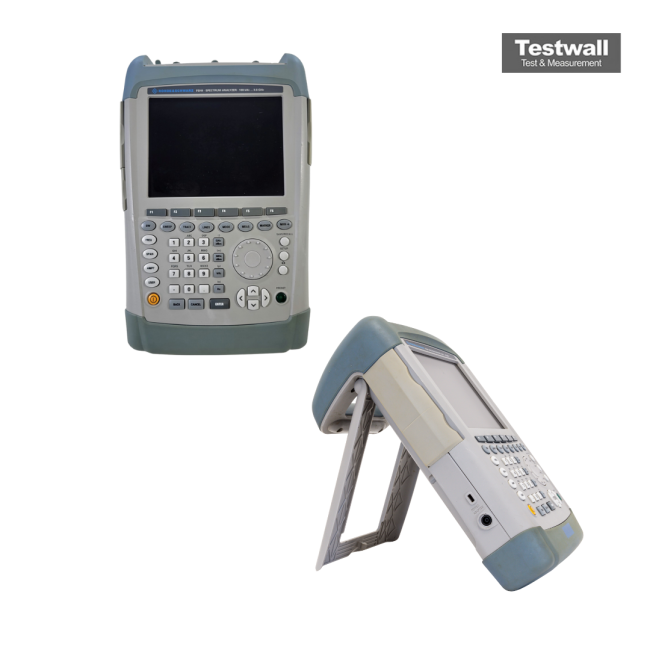

The Rohde & Schwarz FSH4 Model 24 is a handheld spectrum analyzer featuring a tracking generator and internal VSWR bridge, covering a frequency range of 100 kHz to 3.6 GHz. It offers 1 Hz resolution, a high-resolution 640 x 480 px display, integrated speakers, and expandable internal flash memory via SD card. Compact and lightweight, it measures 300 mm x 194 mm x 144 mm and weighs under 3 kg.
Designed for field use, it provides precision analysis and robust signal tracking. Ideal for mobile RF testing, signal verification, and troubleshooting in various environments.
Testwall can supply the used Rohde & Schwarz FSH4 Model 24, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH4 Model 24.
