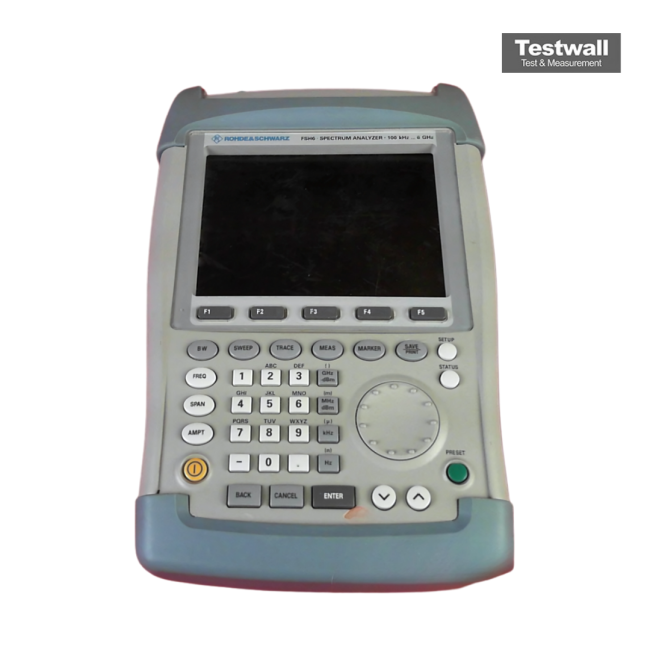

Rohde & Schwarz FSH6 (model .06)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6 GHz |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Displayed Average Noise Level (DANL) | -144 dBm (typ.) at 1 GHz, 10 Hz RBW |
| Dynamic Range | Up to 100 dB |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typ.) at 1 GHz |
| Sweep Time | 50 ms to 1000 s (span > 0) |
| Input Impedance | 50 Ohm |
| Maximum Input Power (RF Input) | +20 dBm continuous, max 30 dBm (pulse) |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels (VGA) |
| Battery Operating Time | Approximately 3 hours with standard battery pack |
Rohde & Schwarz FSH6 (model .06) Options:
- FSH6 - FSH-B1 - Distance-to-Fault Measurement (includes 1 m cable, R&S FSH-Z2 required)
- FSH6 - FSH-K1 - Remote Control via RS-232-C
- FSH6 - FSH-K2 - Vector Transmission and Reflection Measurements
- FSH6 - FSH-K3 - Receiver Mode
| Model | FSH6 |
|---|
The Rohde & Schwarz FSH6 is a handheld spectrum analyzer covering 100 kHz to 6 GHz, featuring an internal preamplifier, resolution bandwidths from 100 Hz to 1 MHz, and a typical displayed average noise level of -135 dBm. It utilizes a super-heterodyne receiver to provide high-precision frequency spectrum measurements with level accuracy of 0.5 dB up to 6 GHz, and features multiple detectors including RMS and auto peak.
Ideal for field and lab use, it supports applications like site monitoring, antenna isolation, intermodulation testing, and RF cable diagnostics, even used aboard the ISS for fault measurements.
Testwall can supply the used Rohde & Schwarz FSH6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH6.
