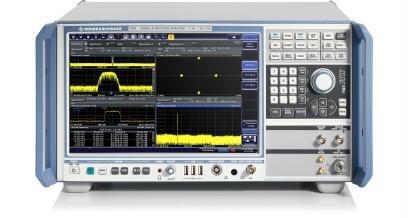

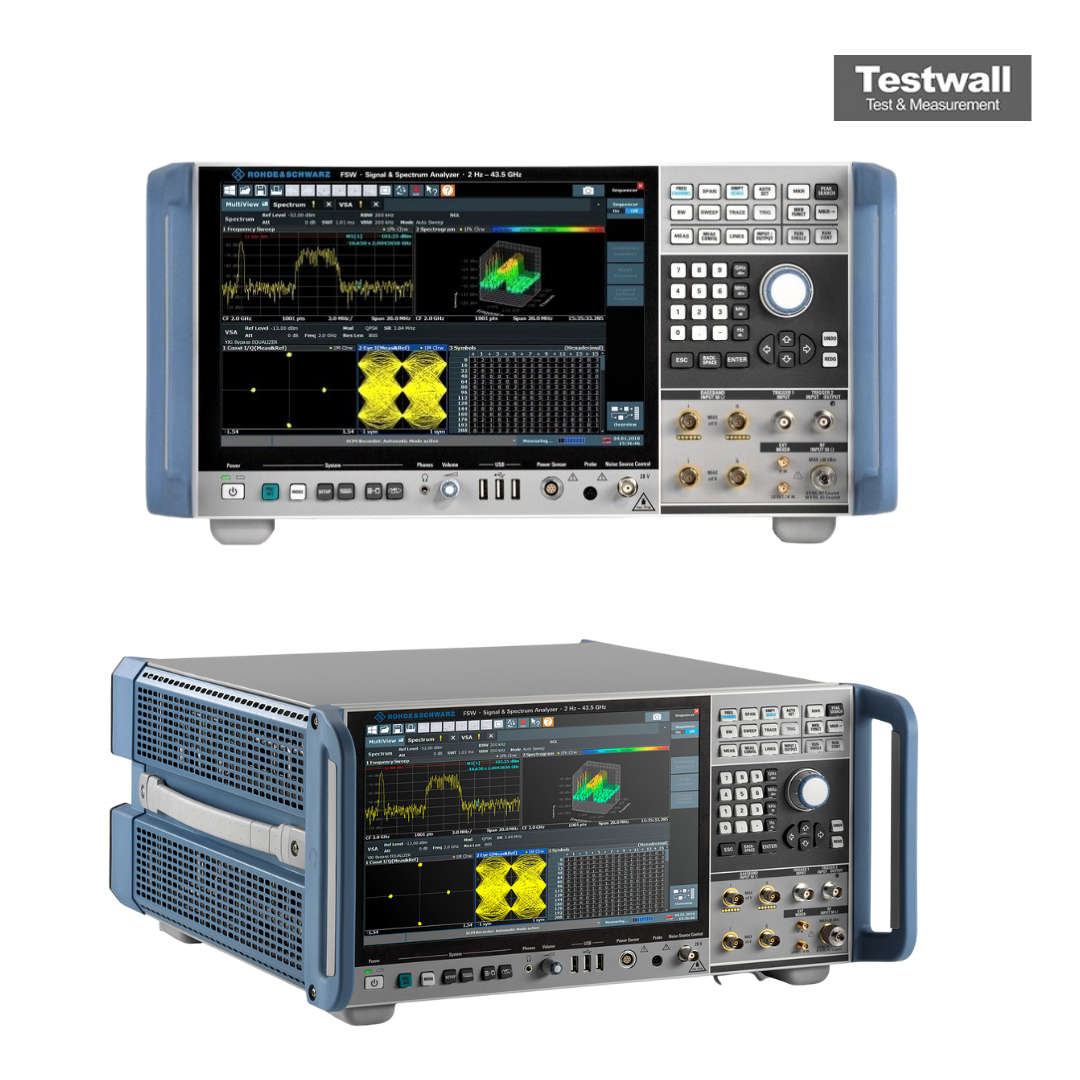

Rohde & Schwarz FSW13
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 13.6 GHz |
| Displayed Average Noise Level (DANL) | -174 dBm/Hz (typ.) with preamplifier enabled |
| Phase Noise | -142 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Dynamic Range | Up to 110 dB third-order intermodulation-free dynamic range |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz (–3 dB bandwidth) |
| Maximum Input Level | +30 dBm (1 W) continuous power at RF input |
| Input Impedance | 50 Ω (nominal) |
| Analysis Bandwidth | Up to 160 MHz (standard); up to 320 MHz or 500 MHz with optional hardware |
| Sweep Time | 1 ms to 16000 s (frequency sweep mode) |
| Interface & Connectivity | LAN (1000BASE-T), USB 3.0, GPIB (optional), DisplayPort, external trigger I/O |
| Model | FSW13 |
|---|
The Rohde & Schwarz FSW13 Signal and Spectrum Analyzer offers industry-leading performance with a wide 500 MHz analysis bandwidth, low DANL, and high spurious-free dynamic range exceeding 100 dBc. It includes a multistandard realtime analyzer, highpass filters for accurate harmonic measurements, and large I/Q memory for capturing long signal sequences. Designed for measuring radar and communication oscillators, it ensures fast spurious emission analysis and frequency-hopping signal detection.
Engineered for efficiency, the FSW13 provides fast measurement rates and up to 1000 sweeps/s. With MultiView result display, intuitive touchscreen, and quick switchover between setups, it delivers precise results effortlessly.
Testwall can supply the used Rohde & Schwarz FSW13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSW13.
