Rohde & Schwarz FSH8 (models .28)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels (VGA) |
| Dynamic Range | >95 dB |
| DANL (Displayed Average Noise Level) | -144 dBm (typ.) at 1 GHz, 10 Hz RBW |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Phase Noise | <-100 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Battery Operating Time | Approximately 3.5 hours with standard battery pack |
| Measurement Functions | Spectrum analysis, cable and antenna analysis, power meter, interference analysis |
| Interfaces | USB, LAN (Ethernet), Mini USB, SD card slot |
| Weight | Approximately 3.3 kg (7.28 lbs) including battery |
Rohde & Schwarz FSH8 (models .28) Options:
- FSH - B1 - Distance-to-Fault Measurement (includes 1 m cable, FSH-Z2 required)
- FSH - K1 - Remote Control via RS-232-C
- FSH - K2 - Vector Transmission and Reflection Measurements
- FSH - K3 - Receiver Mode
| Model | FSH8 |
|---|

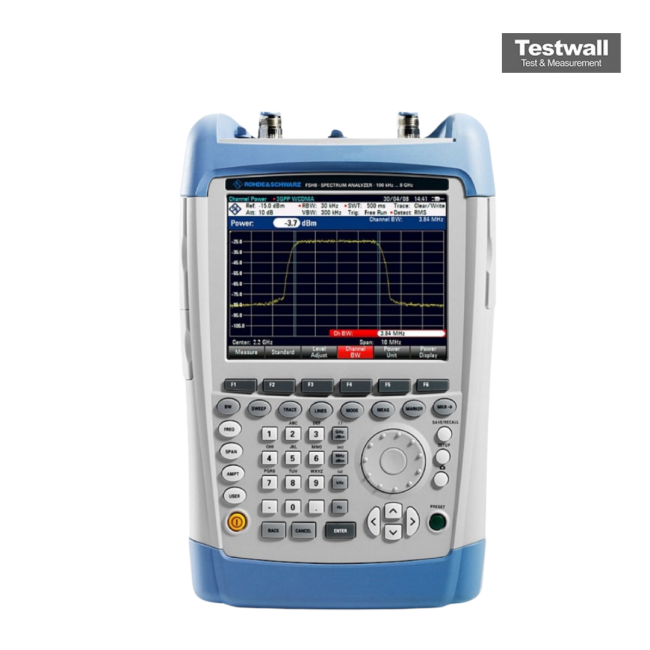

The Rohde & Schwarz FSH8 Spectrum Analyzer offers frequency coverage up to 8 GHz with high sensitivity (≤141 dBm, ≤161 dBm with preamp), and RBW from 100 Hz to 3 MHz.
It includes a 6.5" LCD, internal VSWR bridge, two-port network analyzer, SD memory expansion, and LAN/USB interfaces.
Optimized for field use, it supports applications like EMI precompliance, signal monitoring, interference hunting, and power measurements.
Its lightweight design and 4.5-hour battery make it ideal for mobile operations.
Testwall can supply the used Rohde & Schwarz FSH8 Spectrum Analyzer, fully tested.
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH8 Spectrum Analyzer..
