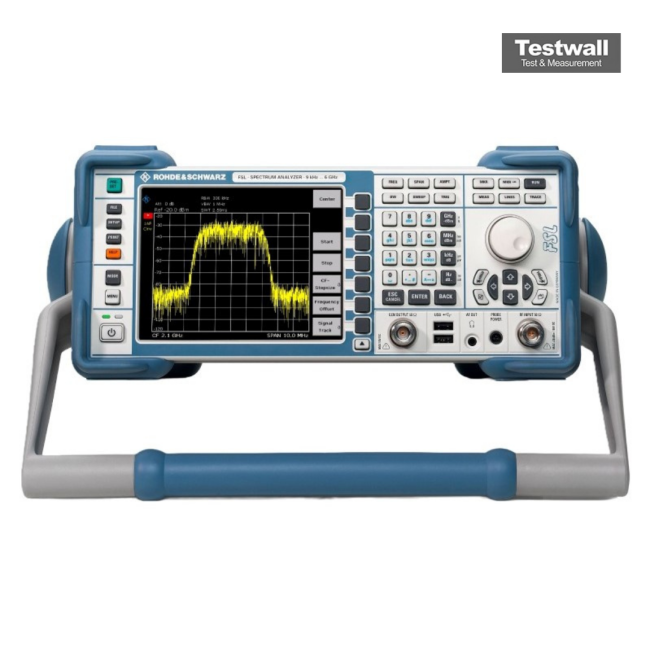

Rohde & Schwarz FSL6 (Model .06)
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Resolution Bandwidth | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -135 dBm (typical, 1 GHz, preamp off) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (typical, 1 GHz carrier) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 100 dB |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Display | 10.4-inch color TFT LCD, 800 x 600 pixels (SVGA) |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
Rohde & Schwarz FSL6 (Model .06) Options:
- FSL6 - B4 - OCXO Reference Frequency, aging 1×10⁻⁷/year
- FSL6 - B5 - Additional Interfaces (video out, IF out, noise source control, AUX port, R&S NRP power sensor)
- FSL6 - B6 - TV Trigger
- FSL6 - B7 - Narrow Resolution Filters
- FSL6 - B8 - Gated Sweep
- FSL6 - B10 - GPIB Interface
- FSL6 - B22 - RF Preamplifier
- FSL6 - B30 - DC Power Supply, 12 V to 28 V
- FSL6 - B31 - NiMH Battery Pack (requires R&S FSL-B30)
- FSL6 - K7 - AM/FM/φM Measurement Demodulator
- FSL6 - K9 - Power Sensor Support (requires R&S FSL-B5 or R&S NRP-Z3/4 and R&S NRP Power Sensor)
- FSL6 - K91 - Transmitter Measurements for WLAN 802.11a, b, g, j
| Model | FSL6 |
|---|
The Rohde & Schwarz FSL6.06 Spectrum Analyzer operates over a 9 kHz to 6 GHz range, with a DANL of -162 dBm (with preamp), and 300 Hz to 10 MHz RBW (optional 10 Hz). It supports easy upgrades, multiple interfaces, and precise signal analysis up to 28 MHz bandwidth. Its compact build houses advanced functions, rivaling high-end models.
Designed for R&D, service, and production, it features direct-access function keys, softkeys, and plug-and-play upgrades—ideal for mobile and lab use.
Testwall can supply the used Rohde & Schwarz FSL6.06, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSL6.06.
