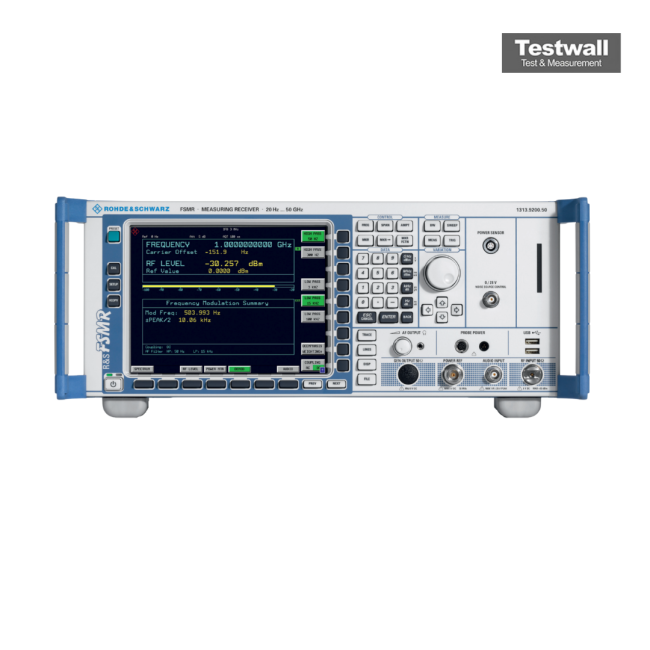

Rohde & Schwarz FSMR26 26GHz Measuring Receiver, Type N (f)
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| RF Input Connector | Type N (female) |
| Power Measurement Range | -20 dBm to +30 dBm |
| Measurement Uncertainty | < 0.15 dB (typical) |
| Dynamic Range | > 50 dB |
| IF Bandwidth | 10 Hz to 10 MHz |
| Phase Noise | -110 dBc/Hz at 10 kHz offset (typical) |
| Input Impedance | 50 Ohm |
| Display | 10.4-inch color TFT LCD touchscreen |
| Interface / Connectivity | USB, LAN (Ethernet), GPIB (optional), RS-232 |
Rohde & Schwarz FSMR26 26GHz Measuring Receiver, Type N (f) Options:
- FSMR26 - FSMR-B2 - YIG Preselection 3.6 GHz to 26.5 GHz
- FSMR26 - FSMR-B223 - YIG Preselection with 20 dB Preamplifier, 3.6 GHz to 26.5 GHz
- FSMR26 - FSMR-B18 - Removable Hard Disk
- FSMR26 - FSMR-B19 - Second Hard Disk for FSMR-B18
- FSMR26 - FSMR-B23 - RF Preamplifier 3.6 GHz to 26 GHz
- FSMR26 - FSU-B4 - Low-Aging OXCO
- FSMR26 - FSU-B9 - Tracking Generator 100 kHz to 3.6 GHz
- FSMR26 - FSU-B12 - Attenuator for Tracking Generator
- FSMR26 - FSU-B25 - 20 dB RF Preamplifier and Electronic Attenuator, 100 kHz to 3.6 GHz
- FSMR26 - FS-K30 - Application Firmware for Noise Figure and Gain Measurements
- FSMR26 - FS-K40 - Application Firmware for Phase Noise Measurement
- FSMR26 - FS-K5 - GSM/EDGE Application Firmware
- FSMR26 - FS-K72 - 3GPP BTS/Node B FDD Application Firmware
- FSMR26 - FS-K73 - 3GPP UE FDD Application Firmware
- FSMR26 - FS-K74 - 3GPP HSDPA BTS Application Firmware
- FSMR26 - FS-K76 - 3GPP TD-SCDMA BTS Application Firmware
- FSMR26 - FS-K77 - 3GPP TD-SCDMA UE Application Firmware
- FSMR26 - FS-K82 - CDMA2000 BTS Application Firmware
- FSMR26 - FS-K83 - CDMA2000 MS Application Firmware (incl. 1xEV-DV)
- FSMR26 - FS-K84 - CDMA2000 1xEV-DO BTS Application Firmware
- FSMR26 - FS-K85 - CDMA2000 1xEV-DO MS Application Firmware
| Model | FSMR26 |
|---|
The Rohde & Schwarz FSMR26 Measuring Receiver integrates a level calibrator, modulation/audio analyzer, power meter, and spectrum analyzer, covering 20 Hz to 26.5 GHz. It delivers 0.015 dB + 0.005 dB/10 dB linearity and supports AM/FM/PM analysis, SINAD, THD, and absolute power measurements via NRP sensors or IEC/IEEE-controlled external meters.
Ideal for calibration and metrology labs, it offers level measurement from +30 dBm to -130 dBm, 100 Hz to 10 MHz bandwidth, and complete remote or front-panel control through GPIB and LAN.
Testwall can supply the used Rohde & Schwarz FSMR26 Measuring Receiver, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSMR26 Measuring Receiver.
