Rohde & Schwarz FSP3
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Resolution Bandwidth | 10 Hz to 10 MHz |
| Video Bandwidth | 1 Hz to 10 MHz |
| Displayed Average Noise Level (DANL) | -150 dBm (typical, at 1 GHz, 10 Hz RBW) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 100 dB |
| Sweep Time | 2.5 ms to 16000 s |
| RF Attenuation Range | 0 dB to 70 dB (in 10 dB steps) |
Rohde & Schwarz FSP3 Options:
- FSP3 - B1 - Cabinet for portable use
- FSP3 - B3 - AM/FM audio demodulator
- FSP3 - B4 - OCXO reference frequency
- FSP3 - B6 - TV trigger/RF power trigger
- FSP3 - B9 - Tracking generator
- FSP3 - B10 - External generator control
- FSP3 - B15 - Pulse calibrator
- FSP3 - B16 - LAN interface
- FSP3 - B20 - Extended environmental specification
- FSP3 - B21 - LO/IF ports for external mixers
- FSP3 - B25 - Electronic attenuator
- FSP3 - B28 - Trigger port
- FSP3 - B29 - Frequency range extension 20 Hz
- FSP3 - B30 - DC power supply
- FSP3 - B31/B32 - Battery pack/spare battery pack
- FSP3 - B70 - Demodulation hardware memory extension
| Model | FSP3 |
|---|

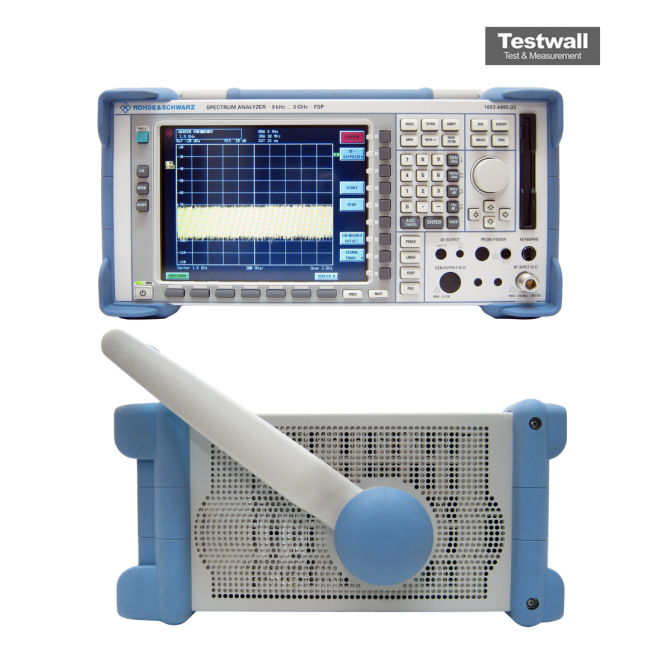

The Rohde & Schwarz FSP3 Spectrum Analyzer features a 9kHz–3GHz range, -142dBm noise floor, EMI RBWs, and a 21cm TFT color display. It includes high-speed FFT, RMS detector, digital filters (10Hz–100kHz), and CCDF analysis. With GPIB, RS-232-C, and optional LAN/USB, it's ideal for detailed RF analysis with low phase noise and fast ACP measurements.
It supports 100 measurements/s, 0.5dB measurement uncertainty, ACPR routines, and selectable resolution/channel filters. Optimized for CDMA, IS95, WCDMA, and TETRA systems, ideal for mobile and RF communication.
Testwall can supply the used Rohde & Schwarz FSP3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSP3.
