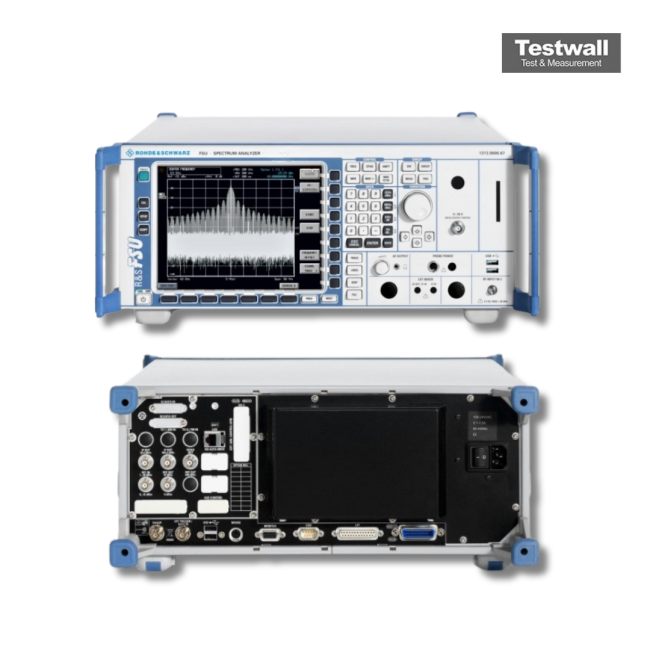

Rohde & Schwarz FSU46
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 46 GHz |
| Resolution Bandwidth | 1 Hz – 50 MHz |
| Display Average Noise Level (DANL) | -155 dBm (typ.) at 1 GHz, preamp on |
| Phase Noise | -130 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Total Amplitude Accuracy | < 0.4 dB (typ.) at 20 Hz – 7 GHz |
| Third-Order Intercept (TOI) | +15 dBm (typ.) at 1 GHz |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) continuous, DC 50 V max |
| Dynamic Range | Up to 110 dB |
| Power Supply | 100 – 240 V AC, 50/60 Hz, approx. 200 W |
Rohde & Schwarz FSU46 Options:
- FSU46 - B0 - Delete Manual
- FSU46 - B4 - Highly Accurate Reference Frequency
- FSU46 - FSP-B10 - External Generator Control
- FSU46 - B16 - LAN Interface 100BT
- FSU46 - B18 - Removable Hard Disk
- FSU46 - B19 - Second Hard Disk for FSU-B18
- FSU46 - B20 - Extended Environmental Specification
- FSU46 - B25 - Electronic Attenuator, 0 dB to 30 dB, with integrated 20 dB preamplifier
- FSU46 - FS-K3 - Noise Measurement Software
- FSU46 - FS-K4 - Phase Noise Measurement Software
- FSU46 - FS-K5 - GSM/EDGE Application Firmware
- FSU46 - FS-K7 - FM Measurement Demodulator
- FSU46 - FS-K72 - 3GPP BTS/Node B FDD Application Firmware
- FSU46 - FSU-Z1 - Service Kit
| Model | FSU46 |
|---|
The Rohde & Schwarz FSU46 Spectrum Analyzer offers a frequency range from 20Hz to 46GHz, featuring <-152dBm DANL with preamp on, 1Hz RBW, and various detectors for precise signal analysis. It supports optional measurement personalities and is built with advanced RF components and ASIC technology.
Ideal for development, quality control, and production, the FSU46 allows simplified, faster, and reliable measurements requiring wide dynamic range. It supports legacy FSE and FSIQ test sequences.
Testwall can supply the used Rohde & Schwarz FSU46, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSU46.
