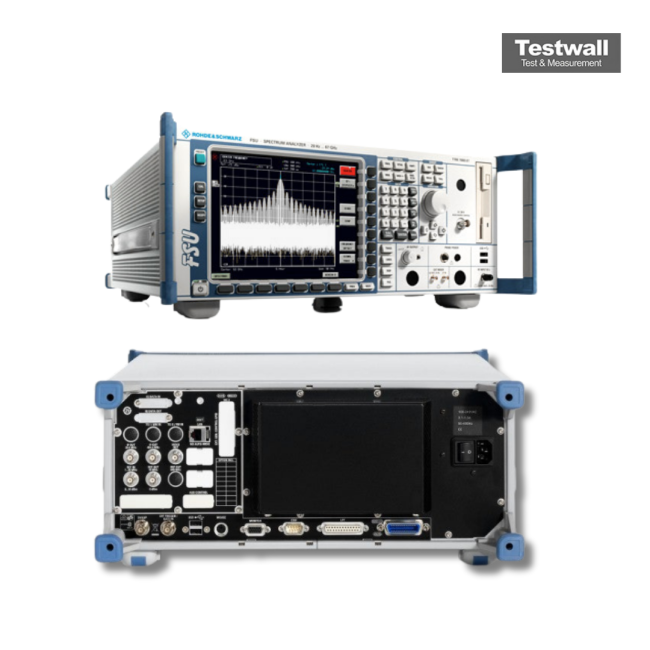

Rohde & Schwarz FSU50
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 50 GHz |
| Resolution Bandwidth | 10 Hz – 50 MHz |
| Display Average Noise Level (DANL) | -155 dBm (typ.) at 1 GHz, preamp on |
| Phase Noise | -130 dBc/Hz at 10 kHz offset (1 GHz carrier, typ.) |
| Total Amplitude Accuracy | < 0.4 dB (typ.) |
| Third-Order Intercept Point (TOI) | +15 dBm (typ.) at 1 GHz |
| Input Impedance | 50 Ω |
| Maximum Input Level | +30 dBm (1 W) continuous |
| Dynamic Range | Up to 110 dB |
| Interface / Connectivity | GPIB, USB, LAN (Ethernet), RS-232 |
Rohde & Schwarz FSU50 Options:
- FSU - B0 - Delete Manual
- FSU - B4 - Highly Accurate Reference Frequency
- FSP - B10 - External Generator Control
- FSU - B16 - LAN Interface 100BT
- FSU - B18 - Removable Hard Disk
- FSU - B19 - Second Hard Disk for FSU-B18
- FSU - B20 - Extended Environmental Specification
- FSU - B25 - Electronic Attenuator, 0 dB to 30 dB, with integrated 20 dB preamplifier
- FS - K3 - Noise Measurement Software
- FS - K4 - Phase Noise Measurement Software
- FS - K5 - GSM/EDGE Application Firmware
- FS - K7 - FM Measurement Demodulator
- FS - K72 - 3GPP BTS/Node B FDD Application Firmware
- FSU - Z1 - Service Kit
| Model | FSU50 |
|---|
The Rohde & Schwarz FSU50 Spectrum Analyzer delivers exceptional RF performance with ultra-low phase noise, wide dynamic range, and high measurement accuracy for applications up to 67 GHz. With < 0.3 dB total measurement uncertainty, IF power trigger, and gated sweep, it meets critical requirements in aerospace, defense, and microwave testing.
Ideal for RADAR development, base station testing, and spurious emission detection, the FSU50 includes versatile filters and detector options, making it adaptable for various signal types and test scenarios.
Testwall can supply the used Rohde & Schwarz FSU50, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSU50.
