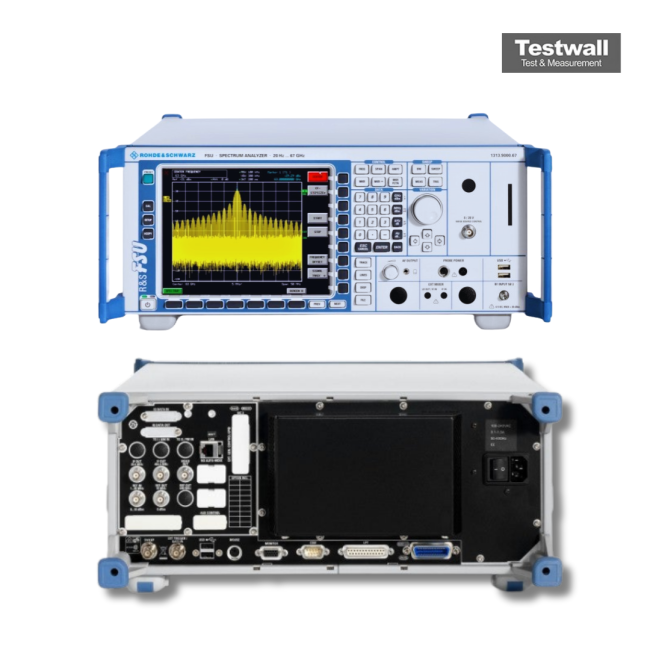

Rohde & Schwarz FSU8
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 8 GHz |
| Resolution Bandwidth | 10 Hz – 10 MHz |
| Display Average Noise Level (DANL) | -155 dBm (typical, at 1 GHz, preamp on) |
| Phase Noise | -130 dBc/Hz (at 10 kHz offset from 1 GHz carrier) |
| Total Amplitude Accuracy | < 0.5 dB (typical) |
| Input Impedance | 50 Ohm |
| Maximum Input Level (RF) | +30 dBm (1 W) |
| Dynamic Range | Up to 110 dB |
| Sweep Time | 2.5 ms – 16000 s |
| Video Bandwidth | 1 Hz – 10 MHz |
Rohde & Schwarz FSU8 Options:
- FSU8 - B0 - Delete Manual
- FSU8 - B4 - Highly Accurate Reference Frequency
- FSP-B10 - External Generator Control
- FSU8 - B16 - LAN Interface 100BT
- FSU8 - B18 - Removable Hard Disk (factory installation only)
- FSU8 - B19 - Second Hard Disk for FSU-B18
- FSU8 - B20 - Extended Environmental Specification
- FSU8 - B25 - Electronic Attenuator, 0 dB to 30 dB, with integrated 20 dB preamplifier
- FSU8 - FS-K3 - Noise Measurement Software
- FSU8 - FS-K4 - Phase Noise Measurement Software
- FSU8 - FS-K5 - GSM/EDGE Application Firmware
- FSU8 - FS-K7 - FM Measurement Demodulator
- FSU8 - FS-K72 - 3GPP BTS/Node B FDD Application Firmware
- FSU8 - FSU-Z1 - Service Kit
| Model | FSU8 |
|---|
The Rohde & Schwarz FSU8 is a high-performance spectrum analyzer offering exceptional phase noise, wide dynamic range, and measurement precision up to 8 GHz. It includes < 0.3 dB total measurement uncertainty, gated sweep, and IF power trigger, making it perfect for RF analysis in aerospace, defense, and general microwave applications.
Its superior signal detection and versatile resolution filters make it ideal for RADAR development, base station testing, and spurious emission analysis in R&D environments.
Testwall can supply the used Rohde & Schwarz FSU8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSU8.
