Tektronix 2706
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1.8 GHz |
| Number of Channels | 8 Channels |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +20 dBm |
| Dynamic Range | 60 dB |
| Switching Speed | Less than 10 ms per channel |
| Connector Type | BNC (Female) |
| Power Requirements | 115/230 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 213 mm x 370 mm (5.25 in x 8.38 in x 14.56 in) |
| Model | 2706 |
|---|

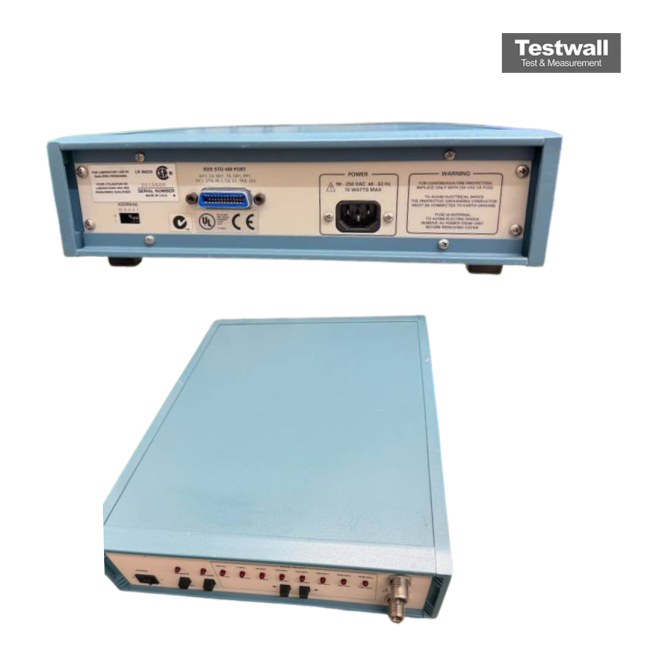

The Tektronix 2706 RF Preselector enhances the flexibility and accuracy of Tektronix 271X Series spectrum analyzers, particularly for EMI applications. It features seven bandpass filter steps from 9 kHz to 1000 MHz and a high-pass filter from 1000 MHz to 1800 MHz, effectively reducing distortion by attenuating out-of-band signals. It also improves broadband dynamic range by increasing sensitivity to low-level signals.
The device offers manual and remote operation through front-panel controls or a GPIB-equipped controller, and includes a bypass mode for quick removal from the test circuit without disconnection.
Testwall can supply the used Tektronix 2706 Preselector, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 2706 Preselector.
