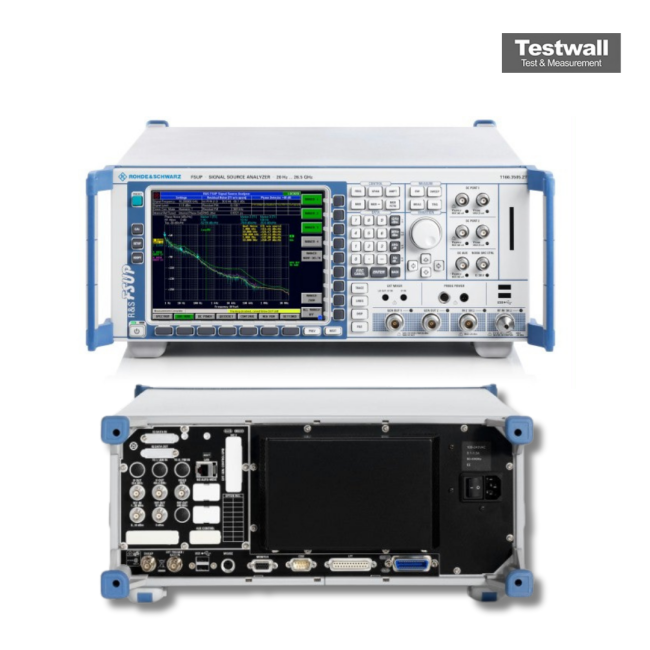

Rohde & Schwarz FSUP8
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 8 GHz |
| Phase Noise Measurement Range | Up to -170 dBc/Hz |
| Residual Phase Noise Floor | -140 dBc/Hz at 1 kHz offset (typical) |
| Signal Analyzer Displayed Average Noise Level (DANL) | -155 dBm/Hz (typical, with preamplifier) |
| Resolution Bandwidth (RBW) | 1 Hz – 10 MHz |
| Dynamic Range | Up to 70 dB (spurious-free) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (signal analyzer mode) |
| Measurement Modes | Phase Noise, Signal Analysis, Spectrum Analysis, Baseband Analysis |
| Interface & Connectivity | GPIB, USB, LAN (Ethernet) |
Rohde & Schwarz FSUP8 Options:
- FSUP8 - FSU-B4 - Low-Aging OCXO
- FSUP8 - FSP-B10 - External Generator Control
- FSUP8 - FSU-B25 - Electronic Attenuator, 0 dB to 30 dB, and 20 dB Preamplifier (3.6 GHz)
- FSUP8 - FSU-B28 - Trigger Port
- FSUP8 - FSU-B60 - Low Phase Noise
- FSUP8 - FS-K7 - AM/FM/ϕM Measurement Demodulator
- FSUP8 - FS-K9 - Power Sensor Measurements
- FSUP8 - FS-K30 - Application Firmware for Noise Figure and Gain Measurements
| Model | FSUP8 |
|---|
The Rohde & Schwarz FSUP8 combines a high-end spectrum analyzer and phase noise tester, offering exceptional dynamic range through cross-correlation up to 50 GHz. It supports measurements using the phase detector method and spectrum analyzer method with internal/external references and dual-DUT support. Features include interference suppression, residual phase noise, AM noise measurement, and automatic parameter setting.
Perfect for advanced RF analysis, the FSUP8 allows precise detection and measurement of reference points, typical spectrum analysis like ACP, and noise figure evaluations, all in a single integrated unit.
Testwall can supply the used Rohde & Schwarz FSUP8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSUP8.
