Rohde & Schwarz

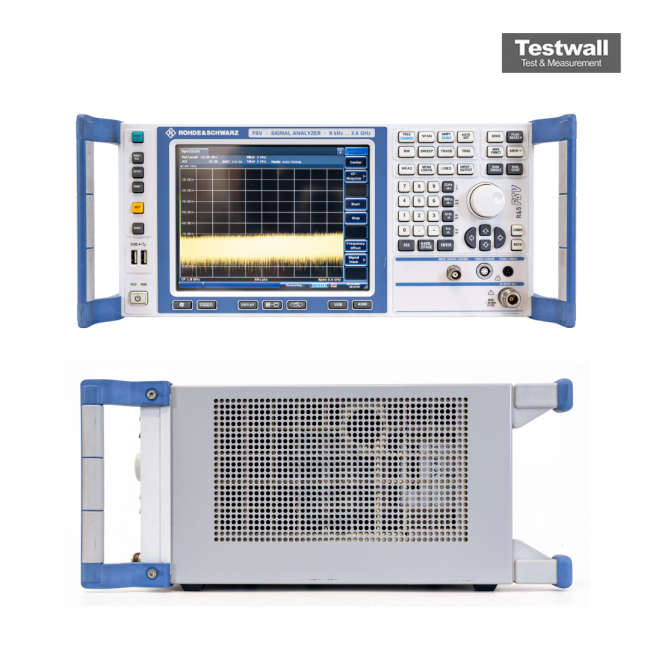

Rohde & Schwarz FSV3
9KHz - 3.6GHz Spectrum Analyser
10 Hz to 3 GHz Frequency Range
-155 dBm (typ.) at 1 GHz with preamplifier enabled Display Average Noise Level (DANL)
-98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) Phase Noise
1 Hz to 3 MHz (in 1/2/3/5/10 steps); 200 kHz to 5 MHz (FFT mode) Resolution Bandwidth (RBW)
+15 dBm (typ.) at 1 GHz Third-Order Intercept Point (TOI)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 3 GHz |
| Display Average Noise Level (DANL) | -155 dBm (typ.) at 1 GHz with preamplifier enabled |
| Phase Noise | -98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (in 1/2/3/5/10 steps); 200 kHz to 5 MHz (FFT mode) |
| Third-Order Intercept Point (TOI) | +15 dBm (typ.) at 1 GHz |
| Maximum Input Power (RF) | +30 dBm (1 W) continuous, DC 50 V max |
| Input Impedance | 50 Ohm (N-type female connector) |
| Level Measurement Uncertainty | < 0.4 dB (typ.) at 20°C to 30°C |
| Sweep Time | 1 ms to 16000 s (span > 0); 1 µs to 16000 s (zero span) |
| Display | 10.1-inch WXGA touchscreen, 1366 x 768 pixels |
Rohde & Schwarz FSV3 Options:
- FSV - B1 - Ruggedized Housing
- FSV - B3 - Audio Demodulator
- FSV - B4 - OCXO Reference Frequency (model .02)
- FSV - B4 - OCXO Extended Frequency Stability (model .03)
- FSV - B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2 × USB)
- FSV - B9 - Tracking Generator (100 kHz to 7 GHz)
- FSV - B10 - External Generator Control
- FSV - B14 - Ultra-High Precision Frequency Reference
- FSV - B17 - Digital Baseband Interface
- FSV - B18 - Solid-State Drive (removable hard drive)
- FSV - B19 - Spare Hard Drive (removable hard drive)
- FSV - B21 - LO/IF Ports for External Mixers
- FSV - B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSV - B24 - RF Preamplifier (9 kHz to 13.6 GHz)
- FSV - B24 - RF Preamplifier (9 kHz to 30 GHz)
- FSV - B24 - RF Preamplifier (9 kHz to 40 GHz)
- FSV - B25 - Electronic Attenuator, 1 dB steps
- FSV - B30 - DC Power Supply for 12 V Supply Voltage
- FSV - B32 - Lithium-Ion Battery Pack
- FSV - FS-B33 - USB Mass Memory Write Protection
- FSV - B34 - Lithium-Ion Battery Charger
- FSV - B70 - 40 MHz Analysis Bandwidth
- FSV - B160 - 160 MHz Analysis Bandwidth (for R&S FSV4 and FSV7)
- FSV - B160 - 160 MHz Analysis Bandwidth (for R&S FSV13, frequencies ≤ 7 GHz)
- FSV - B160 - 160 MHz Analysis Bandwidth (for R&S FSV30 and FSV40, frequencies ≤ 7 GHz)
- FSV - K7 - Analog Modulation Analysis for AM, FM, φM
- FSV - K7S - FM Stereo Measurements
- FSV - K8 - Bluetooth/EDR Measurements
- FSV - K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSV - K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSV - K14 - Spectrogram Measurements
- FSV - K30 - Noise Figure and Gain Measurements
- FSV - K40 - Phase Noise Measurement Application
- FSV - K54 - EMI Measurement Application
- FSV - K70 - Vector Signal Analysis
- FSV - K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSV - K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSV - K76 - 3GPP TD-SCDMA BTS Measurements
- FSV - K77 - TD-SCDMA UE Measurements
- FSV - K82 - Analysis of CDMA2000 Base Station Signals
- FSV - K83 - CDMA2000 MS Measurements
- FSV - K84 - Analysis of 1xEV-DO Base Station Signals
- FSV - K85 - 1xEV-DO MS Measurements
- FSV - K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSV - K91AC - WLAN 802.11ac Measurement Application
- FSV - K91n - Extension of R&S FSV-K91 to 802.11n
- FSV - K93 - Analysis of WiMAX 802.16 SISO Signals
- FSV - K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSV - K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSV - K102 - EUTRA/LTE Downlink MIMO Measurements
- FSV - K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSV - K105 - Analysis of EUTRA/LTE TDD Uplink Signals
| Model | FSV3 |
|---|
The Rohde & Schwarz FSV3 is a high-performance signal and spectrum analyzer with an unmatched 40 MHz signal analysis bandwidth, providing superior RF characteristics and supporting a wide range of analog and digital communication standards.
Ideal for R&D, production, and field use, it offers touchscreen ease, compact design, and fast measurement routines optimized for high data throughput and speed.
Testwall can supply the used Rohde & Schwarz FSV3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSV3.
