Tektronix RSA607A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6.2 GHz |
| Real-Time Bandwidth | 40 MHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, at 1 GHz) |
| Phase Noise | -100 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Dynamic Range | 78 dB (typical, third-order intermodulation) |
| Input Impedance | 50 Ω |
| Maximum Input Power | +30 dBm (1 W) |
| Interface / Connectivity | USB 3.0 (connects to PC); compatible with Windows-based SignalVu-PC software |
| Power Supply | Powered via USB 3.0 connection (no external power supply required) |
Tektronix RSA607A Options:
- RSA607A - Option 04 - Tracking generator, 10 MHz – 7.5 GHz
- RSA607A - Opt. A0 - North America power plug (115 V, 60 Hz)
- RSA607A - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- RSA607A - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- RSA607A - Opt. A3 - Australia power plug (240 V, 50 Hz)
- RSA607A - Opt. A4 - North America power plug (240 V, 50 Hz)
- RSA607A - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- RSA607A - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- RSA607A - Opt. A10 - China power plug (50 Hz)
- RSA607A - Opt. A11 - India power plug (50 Hz)
- RSA607A - Opt. A12 - Brazil power plug (60 Hz)
- RSA607A - Opt. A99 - No power cord
- RSA607A - Opt. L0 - English manual
- RSA607A - Opt. L1 - French manual
- RSA607A - Opt. L2 - Italian manual
- RSA607A - Opt. L3 - German manual
- RSA607A - Opt. L4 - Spanish manual
- RSA607A - Opt. L5 - Japanese manual
- RSA607A - Opt. L6 - Portuguese manual
- RSA607A - Opt. L7 - Simplified Chinese manual
- RSA607A - Opt. L8 - Traditional Chinese manual
- RSA607A - Opt. L9 - Korean manual
- RSA607A - Opt. L10 - Russian manual
- RSA607A - Opt. L99 - No manual
- RSA607A - Opt. C3 - Calibration Service 3 Years
- RSA607A - Opt. C5 - Calibration Service 5 Years
- RSA607A - Opt. D1 - Calibration Data Report
- RSA607A - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA607A - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA607A - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | RSA607A |
|---|

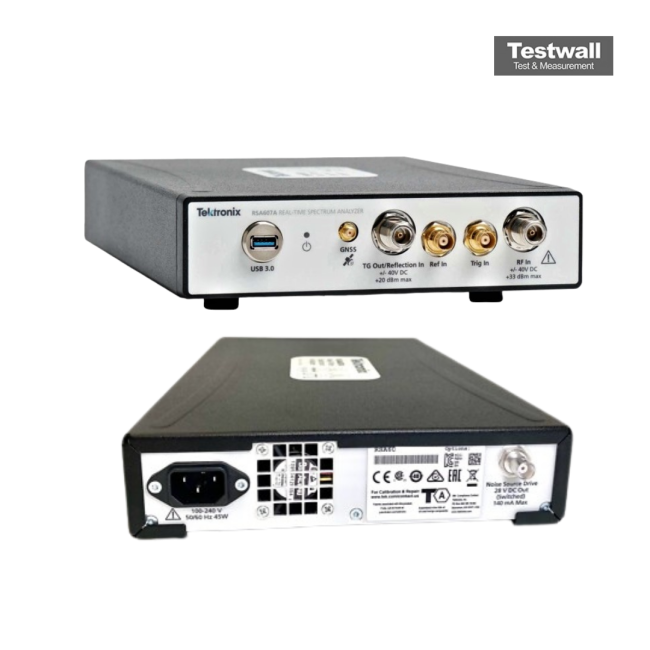

The Tektronix RSA607A USB Spectrum Analyzer delivers a frequency range of 9 kHz to 7.5 GHz and 40 MHz real-time bandwidth, ideal for transient capture and vector analysis. The unit includes an internal battery for extended field operations, with environmental durability meeting Mil-Std 28800 Class 2 standards.
Applications include EMI/EMC troubleshooting, interference hunting, and maintenance of RF networks. Optional tracking generator and antenna/cable test features expand its functionality.
Testwall can supply the used Tektronix RSA607A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA607A.
