Rohde & Schwarz

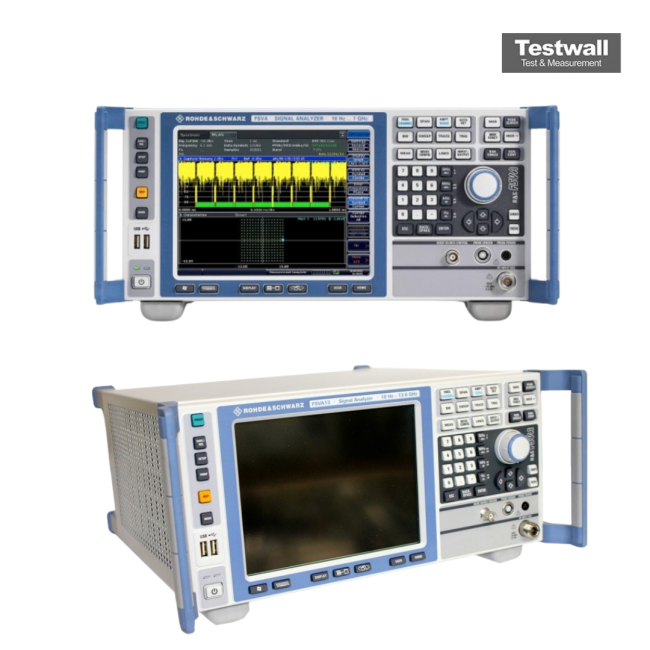

Rohde & Schwarz FSVA13 13.6 GHz Spectrum Analyzer, Type N (f)
13.6 GHz Spectrum Analyser
10 Hz to 13.6 GHz Frequency Range
Type N (female) RF Input Connector
-165 dBm (typical, with preamplifier) Display Average Noise Level (DANL)
-105 dBc/Hz at 10 kHz offset (at 1 GHz carrier) Phase Noise
1 Hz to 10 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 13.6 GHz |
| RF Input Connector | Type N (female) |
| Display Average Noise Level (DANL) | -165 dBm (typical, with preamplifier) |
| Phase Noise | -105 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Maximum Input Power | +30 dBm (1 W) |
| Third-Order Intercept (TOI) | +20 dBm (typical) |
| Amplitude Measurement Range | -170 dBm to +30 dBm |
| Analysis Bandwidth | Up to 40 MHz (internal), expandable with options |
| Power Supply | 100–240 V AC, 50/60 Hz |
Rohde & Schwarz FSVA13 13.6 GHz Spectrum Analyzer, Type N (f) Options:
- FSVA13 - FSV-B1 - Ruggedized Housing
- FSVA13 - FSV-B3 - Audio Demodulator
- FSVA13 - FSV-B4 (model .02) - OCXO Reference Frequency
- FSVA13 - FSV-B4 (model .03) - OCXO Extended Frequency Stability
- FSVA13 - FSV-B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2x USB)
- FSVA13 - FSV-B9 - Tracking Generator (100 kHz to 7 GHz)
- FSVA13 - FSV-B10 - External Generator Control
- FSVA13 - FSVA-B11 - YIG Preselector Bypass
- FSVA13 - FSV-B14 - Ultra-High Precision Frequency Reference
- FSVA13 - FSV-B17 - Digital Baseband Interface
- FSVA13 - FSV-B18 - Solid-State Drive (removable hard drive)
- FSVA13 - FSV-B21 - LO/IF Ports for External Mixers
- FSVA13 - FSV-B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSVA13 - FSV-B24 - RF Preamplifier (9 kHz to 13.6 GHz)
- FSVA13 - FSV-B25 - Electronic Attenuator, 1 dB steps
- FSVA13 - FSV-B30 - DC Power Supply for 12 V/24 V Supply Voltage
- FSVA13 - FSV-B32 - Lithium-Ion Battery Pack
- FSVA13 - FS-B33 - USB Mass Memory Write Protection
- FSVA13 - FSV-B34 - Lithium-Ion Battery Charger
- FSVA13 - FSVA-B40 - 40 MHz Analysis Bandwidth
- FSVA13 - FSV-B160 - 160 MHz Analysis Bandwidth
- FSVA13 - FSV-U4 - Windows 10 Upgrade
- FSVA13 - FSV-K7 - Analog Modulation Analysis for AM, FM, φM
- FSVA13 - FSV-K8 - Bluetooth/EDR Measurements
- FSVA13 - FSV-K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSVA13 - FSV-K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSVA13 - FSV-K14 - Spectrogram Measurements
- FSVA13 - FSV-K30 - Noise Figure and Gain Measurements
- FSVA13 - FSV-K40 - Phase Noise Measurement Application
- FSVA13 - FSV-K54 - EMI Measurement Application
- FSVA13 - FSV-K54CAL - CISPR Calibration for R&S FSV-K54 (ISO 17025)
- FSVA13 - FSV-K70 - Vector Signal Analysis
- FSVA13 - FSV-K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSVA13 - FSV-K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSVA13 - FSV-K76 - 3GPP TD-SCDMA BTS Measurements
- FSVA13 - FSV-K77 - TD-SCDMA UE Measurements
- FSVA13 - FSV-K82 - Analysis of CDMA2000 Base Station Signals
- FSVA13 - FSV-K83 - CDMA2000 MS Measurements
- FSVA13 - FSV-K84 - Analysis of 1xEV-DO Base Station Signals
- FSVA13 - FSV-K85 - 1xEV-DO MS Measurements
- FSVA13 - FSV-K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSVA13 - FSV-K91AC - WLAN 802.11ac Measurement Application
- FSVA13 - FSV-K91N - Extension of R&S FSV-K91 to 802.11n
- FSVA13 - FSV-K91P - WLAN 802.11p Measurement Application
- FSVA13 - FSV-K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSVA13 - FSV-K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSVA13 - FSV-K102 - EUTRA/LTE Downlink MIMO Measurements
- FSVA13 - FSV-K103 - EUTRA/LTE Uplink MIMO
- FSVA13 - FSV-K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSVA13 - FSV-K105 - Analysis of EUTRA/LTE TDD Uplink Signals
| Model | FSVA13 |
|---|
The Rohde & Schwarz FSVA13 is a premium signal and spectrum analyzer with a frequency range from 10 Hz to 13.6 GHz and up to 160 MHz analysis bandwidth. It features a low DANL of –168 dBm/Hz, TOI of +20 dBm, and phase noise of –118 dBc/Hz, ensuring high dynamic range and measurement accuracy. Its interface includes USB, LAN, GPIB, HDMI, and an optional SSD, with a high-resolution touchscreen.
Ideal for RF testing, wireless communications, radar, and EMC diagnostics, the FSVA13 offers fast sweep speed, vector signal analysis, and compliance testing for standards like LTE, 5G NR, and WLAN.
Testwall can supply the used Rohde & Schwarz FSVA13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSVA13.
