Rohde & Schwarz FSVR13
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 13.6 GHz |
| Real-Time Bandwidth | 40 MHz |
| Display Average Noise Level (DANL) | -155 dBm (typical, 1 GHz, preamp on) |
| Phase Noise | -105 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Third-Order Intercept Point (TOI) | +20 dBm (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Input Impedance | 50 Ohm |
| Maximum Input Power (RF Input) | +30 dBm (1 W) |
| Spurious-Free Dynamic Range (SFDR) | Up to 80 dB |
| Probability of Intercept (POI) | 100% for signals ≥ 3.125 µs |
Rohde & Schwarz FSVR13 Options:
- FSVR13 - FSV-B3 - Audio Demodulator
- FSVR13 - FSV-B4 - OCXO Reference Frequency
- FSVR13 - FSV-B4 - OCXO Extended Frequency Stability
- FSVR13 - FSV-B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2 × USB)
- FSVR13 - FSV-B17 - Digital Baseband Interface
- FSVR13 - FSVR-B18 - Solid State Drive (removable hard drive)
- FSVR13 - FSVR-B19 - Spare Hard Drive (removable hard drive)
- FSVR13 - FSV-B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSVR13 - FSV-B24 - RF Preamplifier (9 kHz to 13.6 GHz)
- FSVR13 - FSV-B25 - Electronic Attenuator, 1 dB steps
- FSVR13 - FSV-K7S - FM Stereo Measurements
- FSVR13 - FSV-K8 - Bluetooth/EDR Measurements
- FSVR13 - FSV-K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSVR13 - FSV-K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSVR13 - FSV-K30 - Noise Figure and Gain Measurements
- FSVR13 - FSV-K40 - Phase Noise Measurement Application
- FSVR13 - FSV-K70 - Vector Signal Analysis
- FSVR13 - FSV-K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSVR13 - FSV-K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSVR13 - FSV-K76 - 3GPP TD-SCDMA BTS Measurements
- FSVR13 - FSV-K77 - TD-SCDMA UE Measurements
- FSVR13 - FSV-K82 - Analysis of CDMA2000 Base Station Signals
- FSVR13 - FSV-K83 - CDMA2000 MS Measurements
- FSVR13 - FSV-K84 - Analysis of 1xEV-DO Base Station Signals
- FSVR13 - FSV-K85 - 1xEV-DO MS Measurements
- FSVR13 - FSV-K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSVR13 - FSV-K91n - Extension of R&S FSV-K91 to 802.11n
- FSVR13 - FSV-K93 - Analysis of WiMAX 802.16 SISO Signals
- FSVR13 - FSV-K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSVR13 - FSV-K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSVR13 - FSV-K102 - EUTRA/LTE Downlink MIMO Measurements
- FSVR13 - FSV-K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSVR13 - FSV-K105 - Analysis of EUTRA/LTE TDD Uplink Signals
- FSVR13 - FSV-K96PC - OFDM Vector Signal Analysis (PC software)
- FSVR13 - FSV-K130PC - Distortion Analysis Software (PC software)
| Model | FSVR13 |
|---|

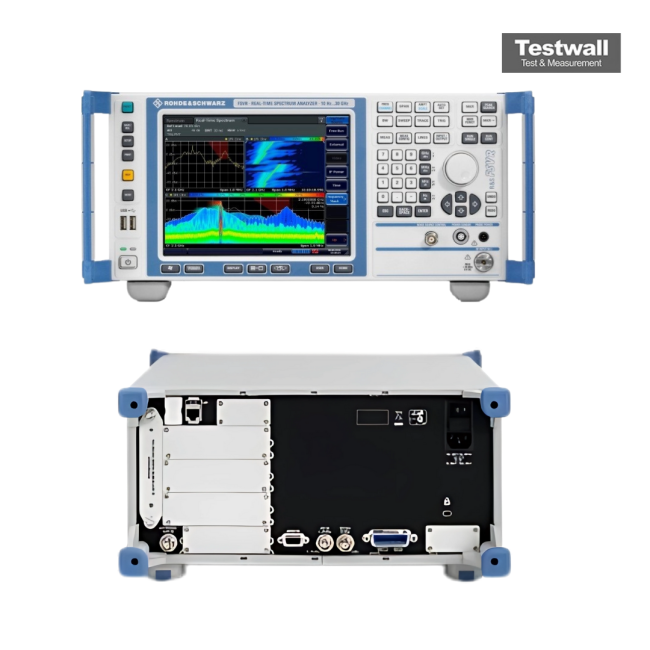

The Rohde & Schwarz FSVR13 is a real-time spectrum and signal analyzer with a wide frequency range of 10 Hz to 13.6 GHz. It integrates swept and gap-free real-time analysis over a 40 MHz bandwidth, offering 128 MSa/s 16-bit A/D conversion and precision RBW settings from 1 Hz to 10 MHz.
Its advanced features include a 250,000 spectra/sec sweep speed, frequency mask triggering, persistence and power views, and I/Q data streaming—ideal for transient RF signal analysis, EMI diagnostics, and spectrum surveillance.
Testwall can supply the used Rohde & Schwarz FSVR13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSVR13.
