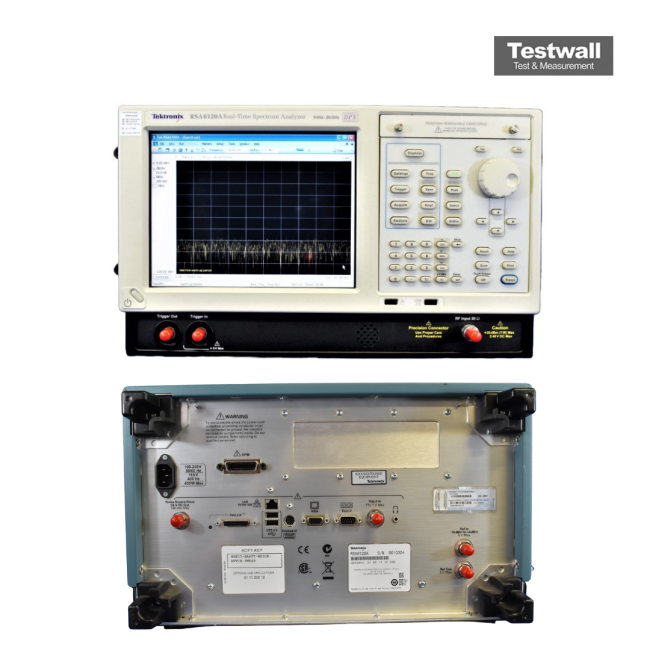

Tektronix RSA6120A
9kHz - 20GHz Spectrum Analyser
100 Hz to 20 GHz Frequency Range
110 MHz Real-Time Bandwidth
-161 dBm/Hz (typical) at 2 GHz Displayed Average Noise Level (DANL)
-115 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) Phase Noise
±0.5 dB (typical) Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 20 GHz |
| Real-Time Bandwidth | 110 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 2 GHz |
| Phase Noise | -115 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Spurious Free Dynamic Range (SFDR) | -70 dBc (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Trigger Types | Free Run, Power (IF), Frequency Mask, External, Time Qualified, DPX Density |
| Display | 15.1-inch XGA color LCD display (1024 x 768 resolution) |
Tektronix RSA6120A Options:
- RSA6120A - Opt. 05 - Digital IQ Output and 500 MHz Analog IF Output
- RSA6120A - Opt. 10 - AM/FM/PM Modulation and Audio Measurements
- RSA6120A - Opt. 11 - Phase Noise and Jitter Measurement
- RSA6120A - Opt. 12 - Settling Time Measurements (Frequency and Phase)
- RSA6120A - Opt. 20 - Advanced Signal Analysis (including pulse measurements)
- RSA6120A - Opt. 21 - General Purpose Digital Modulation Analysis
- RSA6120A - Opt. 22 - Flexible OFDM
- RSA6120A - Opt. 51 - Preamp, 100 kHz - 20 GHz, 30 dB Gain (RSA6114B and RSA6120B only)
- RSA6120A - Opt. 52 - Frequency Mask Trigger
- RSA6120A - Opt. 53 - Memory Extension, 4 GB Total Acquisition Memory
- RSA6120A - Opt. 56 - Removable SSHD (160 GB SS), incompatible with Option 57, 59, WINXP
- RSA6120A - Opt. 57 - CD/DVD-RW and Fixed Internal HDD (160 GB) incompatible with Option 56, 59, WINXP
- RSA6120A - Opt. 59 - Internal HDD (160 GB), incompatible with Option 56, 57, WINXP
- RSA6120A - Opt. 110 - 110 MHz Capture BW
- RSA6120A - Opt. RSA56KR - Rackmount
- RSA6120A - Opt. WINXP - RSA6120B with Windows XP OS, must be ordered with new products, Ships on 160 GB SS HDD. Incompatible with Opt 56, 57, and 59
- RSA6120A - Opt. A0 - North America power cord
- RSA6120A - Opt. A1 - Universal Euro power cord
- RSA6120A - Opt. A2 - United Kingdom power cord
- RSA6120A - Opt. A3 - Australia power cord
- RSA6120A - Opt. A4 - 240 V, North America power cord
- RSA6120A - Opt. A5 - Switzerland power cord
- RSA6120A - Opt. A6 - Japan power cord
- RSA6120A - Opt. A10 - China power cord
- RSA6120A - Opt. A11 - India power cord
- RSA6120A - Opt. A12 - Brazil power cord
- RSA6120A - Opt. A99 - No power cord
- RSA6120A - Opt. C3 - Calibration Service 3 Years
- RSA6120A - Opt. C5 - Calibration Service 5 Years
- RSA6120A - Opt. D1 - Calibration Data Report
- RSA6120A - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA6120A - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA6120A - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- RSA6120A - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- RSA6120A - Opt. R3 - Repair Service 3 Years
- RSA6120A - Opt. R5 - Repair Service 5 Years
- RSA6120A - Opt. CA1 - Single Calibration or Functional Verification
- RSA6120A - Opt. L0 - English Manual
- RSA6120A - Opt. L5 - Japanese Manual
- RSA6120A - Opt. L7 - Simplified Chinese Manual
- RSA6120A - Opt. L10 - Russian Manual
- RSA6120A - Opt. L99 - No Manual
| Model | RSA6120A |
|---|
The Tektronix RSA6120A 20 GHz Real‑Time Spectrum Analyzer delivers advanced spectral analysis with ±0.5 dB amplitude accuracy and a typical displayed average noise level of –151 dBm/Hz at 2 GHz. Featuring a fully preselected, image‑free architecture and fast DPX® spectrum processing, it captures transient events as short as 3.7 μs with unparalleled resolution and reliability.
Ideal for spectrum management, radar/EW analysis, RF debugging and EMI diagnostics, it supports MATLAB™ file saving and long-term spectrogram recording.
Testwall can supply the used Tektronix RSA6120A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA6120A
