Rohde & Schwarz

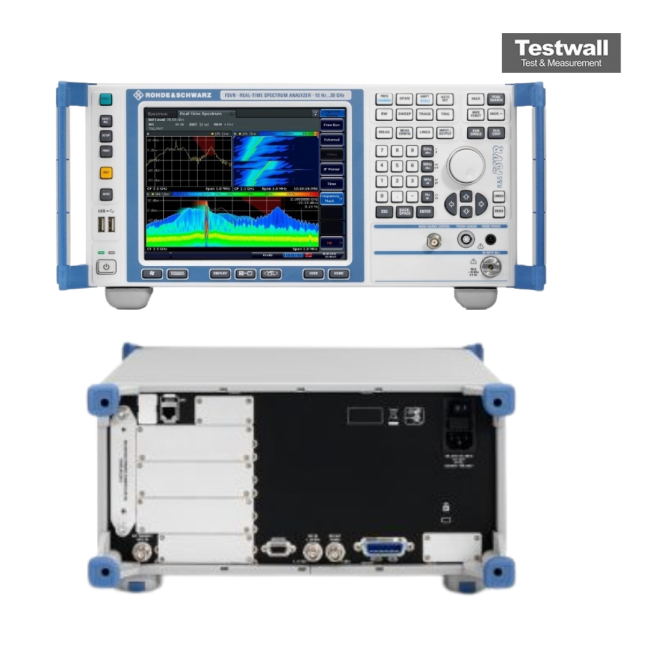

Rohde & Schwarz FSVR7
Real-Time Spectrum Analyser, 7 GHz
10 MHz to 7 GHz Frequency Range
Up to 40 MHz Real-Time Bandwidth
-150 dBm (typ.) at 1 GHz Display Average Noise Level (DANL)
-98 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
1 Hz to 10 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 7 GHz |
| Real-Time Bandwidth | Up to 40 MHz |
| Display Average Noise Level (DANL) | -150 dBm (typ.) at 1 GHz |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | >75 dB (third-order intermodulation free dynamic range) |
| Spurious-Free Dynamic Range (SFDR) | Up to 70 dB within real-time bandwidth |
| Probability of Intercept (POI) | 100% POI for signals >= 3.125 µs within real-time bandwidth |
Rohde & Schwarz FSVR7 Options:
- FSVR7 - FSV-B3 - Audio Demodulator
- FSVR7 - FSV-B4 - OCXO Reference Frequency
- FSVR7 - FSV-B4 - OCXO Extended Frequency Stability
- FSVR7 - FSV-B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2 × USB)
- FSVR7 - FSV-B17 - Digital Baseband Interface
- FSVR7 - FSVR-B18 - Solid State Drive (removable hard drive)
- FSVR7 - FSVR-B19 - Spare Hard Drive (removable hard drive)
- FSVR7 - FSV-B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSVR7 - FSV-B25 - Electronic Attenuator, 1 dB steps
- FSVR7 - FSV-K7S - FM Stereo Measurements
- FSVR7 - FSV-K8 - Bluetooth/EDR Measurements
- FSVR7 - FSV-K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSVR7 - FSV-K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSVR7 - FSV-K30 - Noise Figure and Gain Measurements
- FSVR7 - FSV-K40 - Phase Noise Measurement Application
- FSVR7 - FSV-K70 - Vector Signal Analysis
- FSVR7 - FSV-K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSVR7 - FSV-K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSVR7 - FSV-K76 - 3GPP TD-SCDMA BTS Measurements
- FSVR7 - FSV-K77 - TD-SCDMA UE Measurements
- FSVR7 - FSV-K82 - Analysis of CDMA2000 Base Station Signals
- FSVR7 - FSV-K83 - CDMA2000 MS Measurements
- FSVR7 - FSV-K84 - Analysis of 1xEV-DO Base Station Signals
- FSVR7 - FSV-K85 - 1xEV-DO MS Measurements
- FSVR7 - FSV-K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSVR7 - FSV-K91n - Extension of R&S FSV-K91 to 802.11n
- FSVR7 - FSV-K93 - Analysis of WiMAX 802.16 SISO Signals
- FSVR7 - FSV-K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSVR7 - FSV-K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSVR7 - FSV-K102 - EUTRA/LTE Downlink MIMO Measurements
- FSVR7 - FSV-K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSVR7 - FSV-K105 - Analysis of EUTRA/LTE TDD Uplink Signals
- FSVR7 - FSV-K96PC - OFDM Vector Signal Analysis Software
- FSVR7 - FSV-K130PC - Distortion Analysis Software
| Model | FSVR7 |
|---|
The Rohde & Schwarz FSVR7 is a real-time spectrum analyzer offering a frequency range from 10 Hz to 7 GHz with 40 MHz real-time bandwidth. It includes a persistence spectrum function, spectrogram display, and power versus time visualization.
It features frequency mask triggering and supports advanced signal analysis including GSM/EDGE, WCDMA/HSPA+, LTE, WiMAX™, WLAN, analog/digital modulation, noise figure, and phase noise measurements.
Testwall can supply the used Rohde & Schwarz FSVR7, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSVR7.
