Tektronix LPD64 6-BW-1000

| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz (option 6-BW-1000) |
| Number of Analog Channels | 4 (TekVPI inputs) |
| Sample Rate | 25 GS/s on all channels |
| Record Length | 62.5 M points standard (up to 1 G optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Res mode) |
| Display | None (2U low-profile rack-mount chassis, remote/web UI) |
| DDC / Spectrum | Spectrum View with digital down-conversion on each channel |
| Series | Tektronix 6 Series Low Profile Digitizer |
Tektronix LPD64 Options:
- LPD64 - 6-BW-1000 - 1 GHz bandwidth
- LPD64 - 6-BW-2500 - 2.5 GHz bandwidth
- LPD64 - 6-BW-4000 - 4 GHz bandwidth
- LPD64 - 6-BW-6000 - 6 GHz bandwidth
- LPD64 - 6-BW-8000 - 8 GHz bandwidth
- LPD64 - 6-RL-2 - Record length extended to 250 Mpoints/channel
- LPD64 - 6-AFG - Arbitrary/function generator
- LPD64 - 6-SRAERO - Aerospace serial trigger and analysis (MIL-STD-1553, ARINC 429)
- LPD64 - 6-SRAUDIO - Audio serial trigger and analysis (I2S, LJ, RJ, TDM)
- LPD64 - 6-SRAUTO - Automotive serial trigger and analysis (CAN, CAN FD, LIN, FlexRay)
- LPD64 - 6-SRAUTOSEN - Automotive sensor serial trigger and analysis (SENT)
- LPD64 - 6-SRAUTOEN1 - Automotive Ethernet serial analysis (100BASE-T1)
- LPD64 - 6-SRCOMP - Computer serial trigger and analysis (RS-232/422/485, UART)
- LPD64 - 6-SREMBD - Embedded serial trigger and analysis (I2C, SPI)
- LPD64 - 6-SRENET - Ethernet serial trigger and analysis (10BASE-T, 100BASE-TX)
- LPD64 - 6-SRI3C - MIPI I3C serial decode and search
- LPD64 - 6-SRPM - Power management serial trigger and analysis (SPMI)
- LPD64 - 6-SRSPACEWIRE - SpaceWire serial decode and analysis
- LPD64 - 6-SRUSB2 - USB 2.0 serial trigger and analysis (LS, FS, HS)
- LPD64 - 6-DBDDR3 - DDR3 and LPDDR3 debug and analysis
- LPD64 - 6-DJA - Advanced jitter and eye analysis
- LPD64 - 6-PWR - Power measurement and analysis
- LPD64 - 6-DPM - Digital power management analysis
- LPD64 - 6-SV-RFVT - Spectrum View RF versus time analysis
- LPD64 - 6-SV-BW-1 - Spectrum View capture bandwidth increased to 2 GHz
- LPD64 - 6-PAM3 - PAM3 analysis
- LPD64 - 6-SEC - Enhanced instrument security
The Tektronix LPD64 6-BW-1000 is the 1 GHz bandwidth configuration of the LPD64, a 4-channel 6 Series Low Profile Digitizer: a 2U low-profile digitizer based on the 6 Series MSO platform, built for automated test, rack systems and multi-channel RF and high-speed measurements.
Bandwidth is set by software option, so the LPD64 can be ordered at 1 GHz, 2.5 GHz, 4 GHz, 6 GHz, 8 GHz. This listing is for the 1 GHz unit (option 6-BW-1000). For other bandwidths, see the LPD64 overview page.

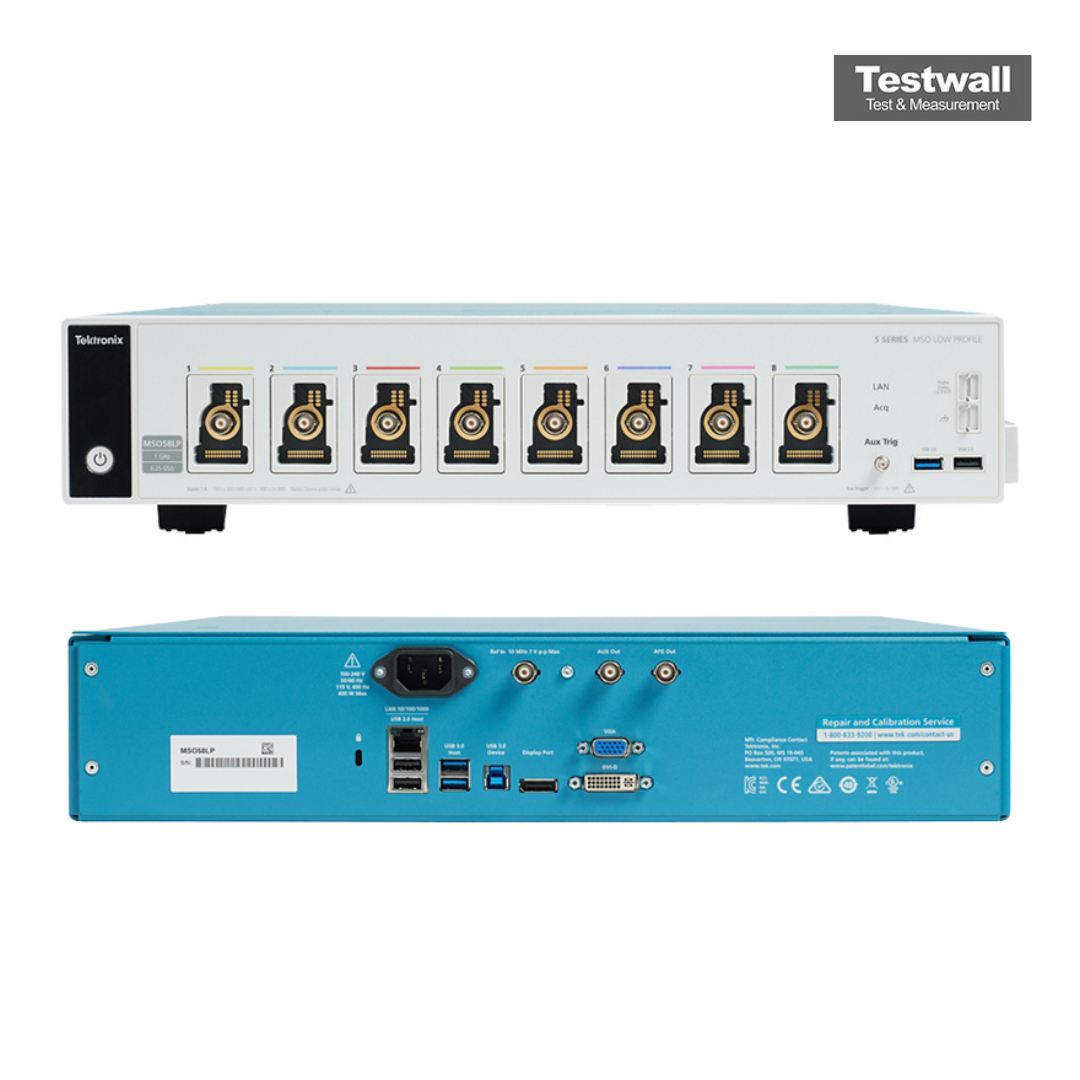

Image shows the MSO58LP, which uses the same low-profile chassis.
Testwall can supply the used Tektronix LPD64 6-BW-1000, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request. Please contact us if you need calibration or repair of the Tektronix LPD64.
