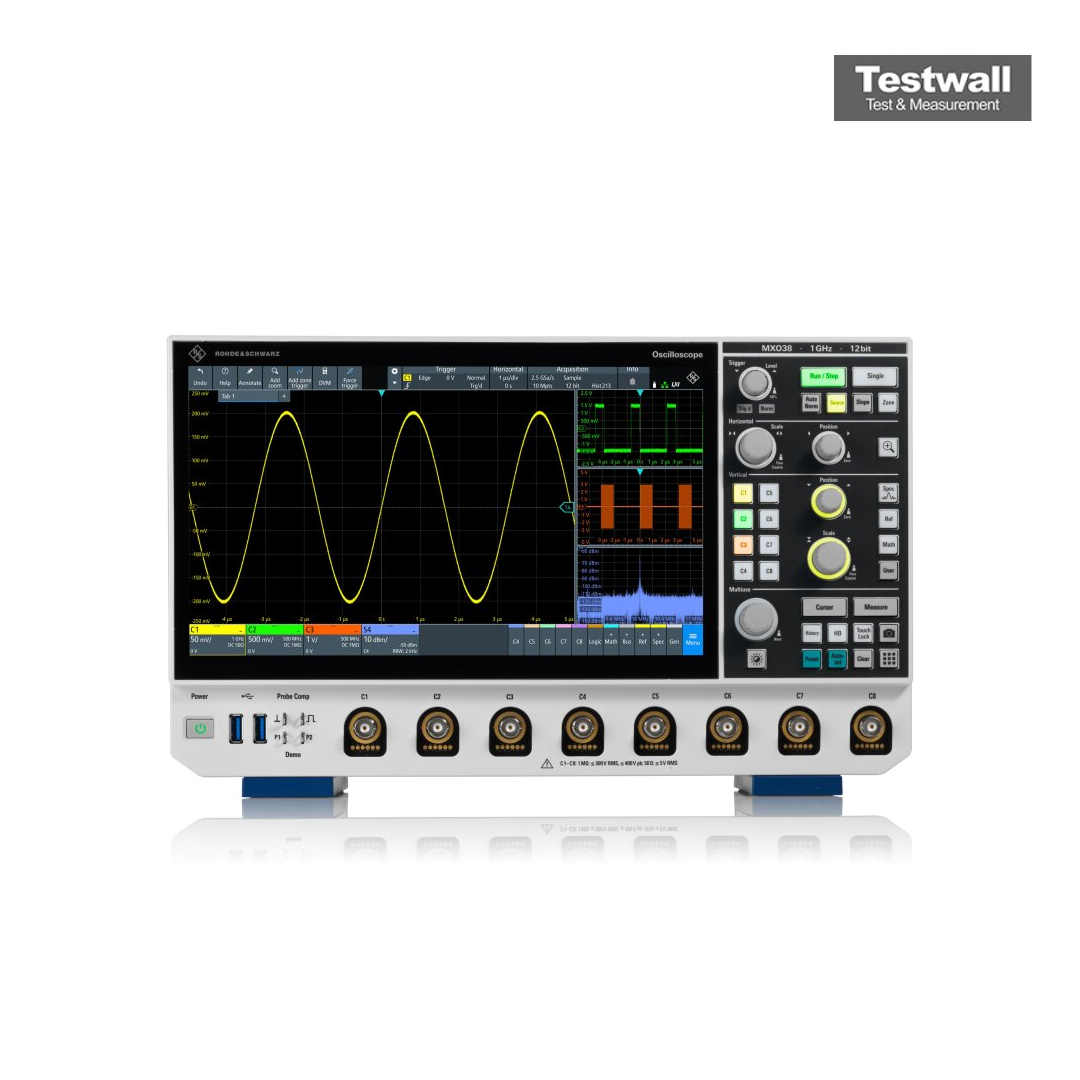

Rohde & Schwarz MXO38
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz – 1 GHz |
| Number of Channels | 8 analog |
| Sample Rate | Up to 5 GS/s |
| Memory Depth | 125 Mpoints/ch (500 Mpoints optional) |
| Vertical Resolution | 12-bit (18-bit in HD mode) |
| Bandwidth Options | 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz |
| Sample Rate (detail) | 5 GS/s on 4 channels, 2.5 GS/s on 8 channels |
| Digital Channels | 16 with MSO option MXO3-B1 |
| Waveform Update Rate | > 4,500,000 waveforms per second |
| Display | 11.6-inch Full HD (1920 x 1080) capacitive touchscreen |
| Arbitrary Waveform Generator | Optional 50 MHz generator (MXO3-B6) |
| Connectivity | USB 3.1 host and device, LAN (LXI), HDMI |
| Series | Rohde & Schwarz MXO 3 |
Available configurations
| Model | Bandwidth | Channels |
| MXO38-100 | 100 MHz | 8 |
| MXO38-200 | 200 MHz | 8 |
| MXO38-350 | 350 MHz | 8 |
| MXO38-500 | 500 MHz | 8 |
| MXO38-1000 | 1 GHz | 8 |
Rohde & Schwarz MXO38 Options:
- MXO38 - MXO3-B282 - Bandwidth upgrade to 200 MHz
- MXO38 - MXO3-B283 - Bandwidth upgrade to 350 MHz
- MXO38 - MXO3-B285 - Bandwidth upgrade to 500 MHz
- MXO38 - MXO3-B2810 - Bandwidth upgrade to 1 GHz
- MXO38 - MXO3-B1 - Mixed signal option, 16 digital channels
- MXO38 - MXO3-B6 - Arbitrary waveform generator, 50 MHz
- MXO38 - MXO3-B105 - Memory upgrade to 500 Mpoints per channel
The Rohde & Schwarz MXO38 is the 8-channel model of the MXO 3 Series, giving eight analog inputs in a compact bench oscilloscope. It has a 12-bit ADC at all sample rates (up to 18-bit in HD mode), samples at up to 5 GS/s (2.5 GS/s with all eight channels active), captures more than 4.5 million waveforms per second and offers 125 Mpoints of memory per channel as standard, shown on an 11.6-inch Full HD touchscreen.
Bandwidth on the MXO 3 is set by software licence, so the MXO38 can be supplied at 100 MHz, 200 MHz, 350 MHz, 500 MHz or 1 GHz (R&S configurations MXO38-100 to MXO38-1000, upgrade options MXO3-B282 to MXO3-B2810). It can also be fitted with 16 digital channels (MXO3-B1), a 50 MHz arbitrary waveform generator (MXO3-B6) and a 500 Mpoint memory upgrade (MXO3-B105). Tell us the bandwidth and options you need when you request a quote.
Testwall can supply the used Rohde & Schwarz MXO38, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz MXO38.
