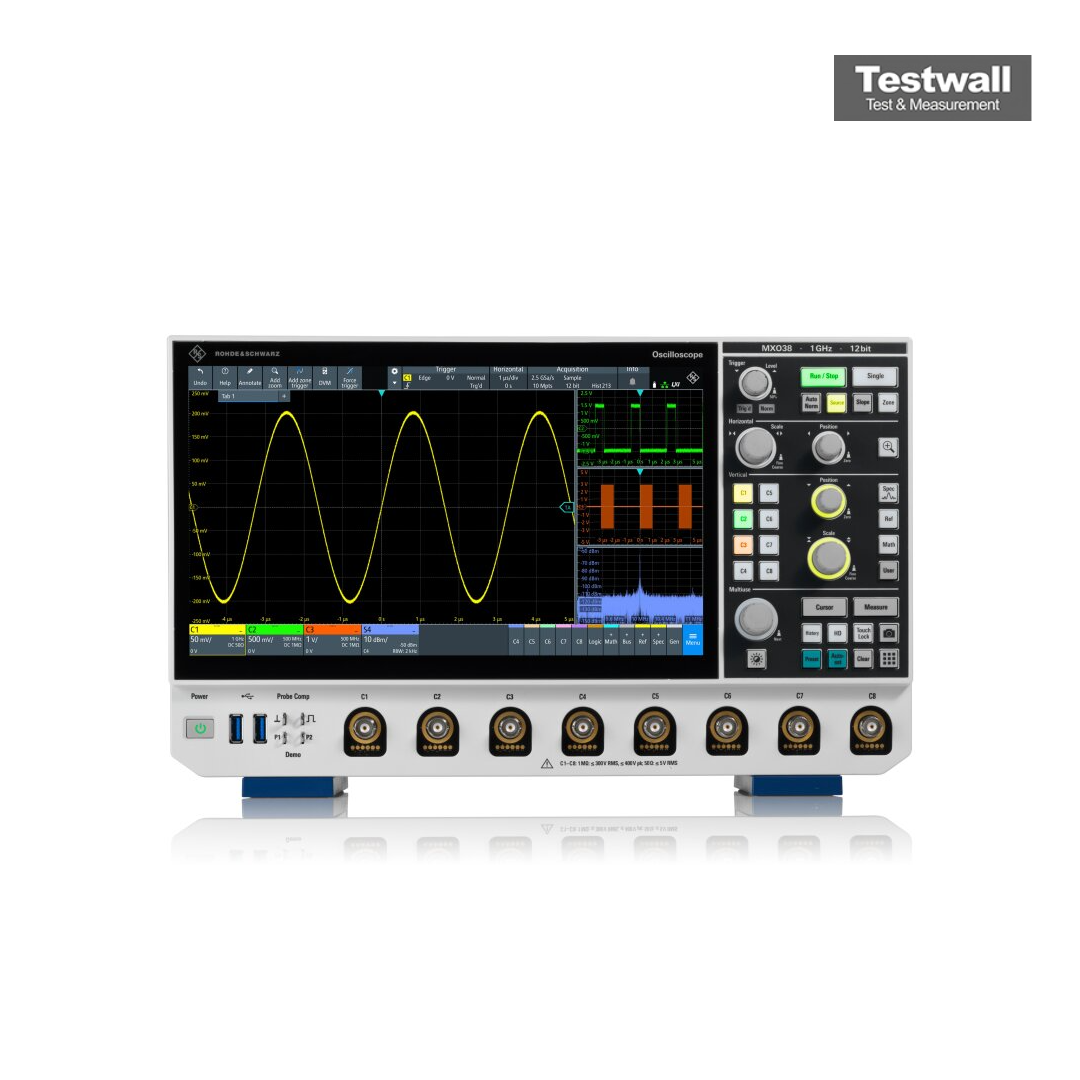

Rohde & Schwarz MXO38-350
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz (option MXO3-B283) |
| Number of Channels | 8 analog |
| Sample Rate | Up to 5 GS/s |
| Memory Depth | 125 Mpoints/ch (500 Mpoints optional) |
| Vertical Resolution | 12-bit (18-bit in HD mode) |
| Sample Rate (detail) | 5 GS/s on 4 channels, 2.5 GS/s on 8 channels |
| Digital Channels | 16 with MSO option MXO3-B1 |
| Waveform Update Rate | > 4,500,000 waveforms per second |
| Display | 11.6-inch Full HD (1920 x 1080) capacitive touchscreen |
| Arbitrary Waveform Generator | Optional 50 MHz generator (MXO3-B6) |
| Connectivity | USB 3.1 host and device, LAN (LXI), HDMI |
| Series | Rohde & Schwarz MXO 3 |
The Rohde & Schwarz MXO38-350 is the 350 MHz bandwidth configuration of the MXO38, a 8-channel MXO 3 Series oscilloscope. It has a 12-bit ADC at all sample rates (up to 18-bit in HD mode), samples at up to 5 GS/s, captures more than 4.5 million waveforms per second and offers 125 Mpoints of memory per channel (500 Mpoints optional), shown on an 11.6-inch Full HD touchscreen.
Bandwidth on the MXO 3 is set by software licence, so the MXO38 can be ordered at 100 MHz, 200 MHz, 350 MHz, 500 MHz or 1 GHz. This listing is for the 350 MHz unit (option MXO3-B283). If you need a different bandwidth, see the MXO38 overview page for all configurations.
Testwall can supply the used Rohde & Schwarz MXO38-350, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz MXO38.
