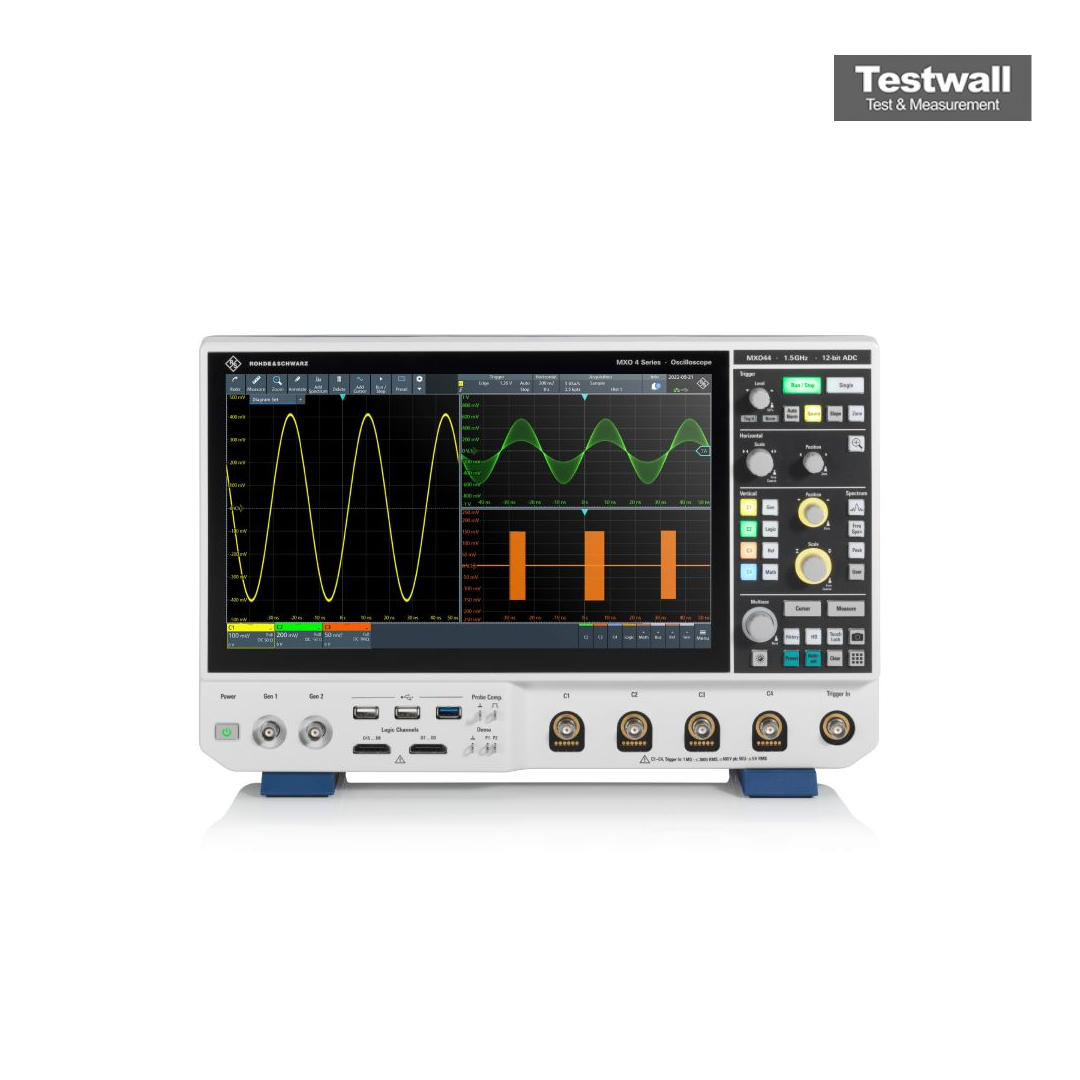

Rohde & Schwarz MXO44-245
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz (option MXO4-B245) |
| Number of Channels | 4 analog |
| Sample Rate | Up to 5 GS/s |
| Memory Depth | 400 Mpoints/ch (800 Mpoints optional) |
| Vertical Resolution | 12-bit (18-bit in HD mode) |
| Sample Rate (detail) | 5 GS/s interleaved, 2.5 GS/s on all channels |
| Digital Channels | 16 with MSO option MXO4-B1 |
| Waveform Update Rate | > 4,500,000 waveforms per second |
| Display | 13.3-inch Full HD (1920 x 1080) capacitive touchscreen |
| Arbitrary Waveform Generator | Optional 2-channel, 100 MHz generator (MXO4-B6) |
| Connectivity | USB 3.1, LAN (LXI), HDMI |
| Series | Rohde & Schwarz MXO 4 |
The Rohde & Schwarz MXO44-245 is the 500 MHz bandwidth configuration of the MXO44, a 4-channel MXO 4 Series oscilloscope. It has a 12-bit ADC at all sample rates (up to 18-bit in HD mode), samples at up to 5 GS/s, captures more than 4.5 million waveforms per second and offers 400 Mpoints of memory per channel (800 Mpoints optional), shown on an 13.3-inch Full HD touchscreen.
Bandwidth on the MXO 4 is set by software licence, so the MXO44 can be ordered at 200 MHz, 350 MHz, 500 MHz, 1 GHz or 1.5 GHz. This listing is for the 500 MHz unit (option MXO4-B245). If you need a different bandwidth, see the MXO44 overview page for all configurations.
Testwall can supply the used Rohde & Schwarz MXO44-245, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz MXO44.
