Tektronix SD26
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Number of Channels | 2 |
| Input Impedance | 50 Ω |
| Dynamic Range | ±200 mV |
| Sensitivity Range | 10 mV/div to 200 mV/div |
| Connector Type | SMA |
| Compatible Mainframes | 11801, CSA803, DSA8200 Series |
| Module Type | Sampling Module |
| Operating Temperature | 0°C to +50°C |
| Model | SD26 |
|---|

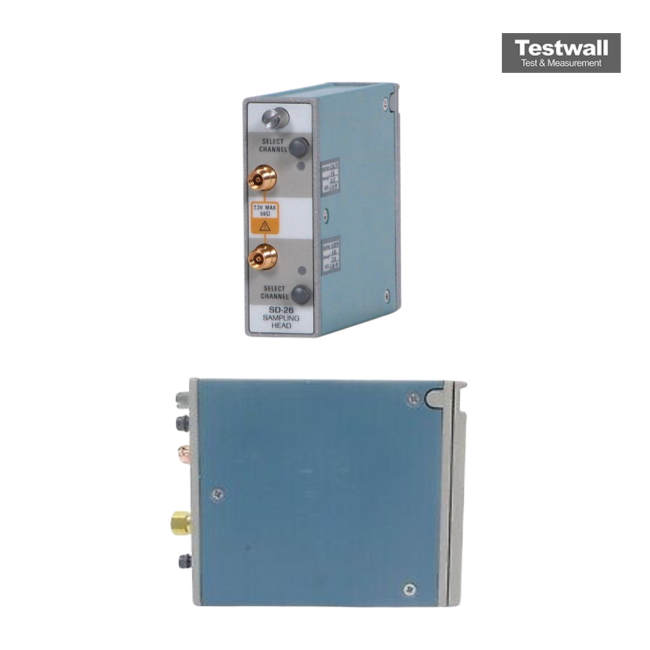

The Tektronix SD26 is a dual-channel 20 GHz sampling head with a rise time of 17.5 ps, designed for use in Tektronix 11800 Series, SM-11, and CSA 803 analyzers. It features a 50 Ohm ±0.5 Ohm input impedance, ±3 V max safe input voltage, and sample rates from 100 Hz to 200 kHz. Typical displayed noise ranges from 750 µV to 1.2 mV, depending on dot response and smoothing settings.
Ideal for precision waveform capture and signal analysis up to 1.6 Vp-p, it maintains signal fidelity with low aberrations across various time intervals and ensures accurate measurements through dot transient calibration.
Testwall can supply the used Tektronix SD26, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SD26.
