Rohde & Schwarz MXO58C
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz – 2 GHz |
| Number of Channels | 8 analog |
| Sample Rate | Up to 5 GS/s |
| Memory Depth | 500 Mpoints/ch |
| Vertical Resolution | 12-bit (18-bit in HD mode) |
| Bandwidth Options | 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz |
| Sample Rate (detail) | 5 GS/s on 4 channels, 2.5 GS/s on 8 channels |
| Digital Channels | 16 with MSO option MXO5C-B1 |
| Form Factor | 2U compact / rack-mount, 8.7 kg |
| Waveform Update Rate | > 4,500,000 waveforms per second |
| Display | No built-in display; e-ink status display, HDMI and DisplayPort for an external monitor |
| Arbitrary Waveform Generator | Optional 2-channel, 100 MHz generator (MXO5C-B6) |
| Connectivity | 5x USB 3.1 Type A, USB 3.1 Type B, LAN (1 Gbit/s), HDMI, DisplayPort |
| Series | Rohde & Schwarz MXO 5C |
Available configurations
| Model | Bandwidth | Channels |
| MXO58C-100 | 100 MHz | 8 |
| MXO58C-200 | 200 MHz | 8 |
| MXO58C-350 | 350 MHz | 8 |
| MXO58C-500 | 500 MHz | 8 |
| MXO58C-1000 | 1 GHz | 8 |
| MXO58C-2000 | 2 GHz | 8 |
Rohde & Schwarz MXO58C Options:
- MXO58C - MXO5C-B282 - Bandwidth upgrade to 200 MHz
- MXO58C - MXO5C-B283 - Bandwidth upgrade to 350 MHz
- MXO58C - MXO5C-B285 - Bandwidth upgrade to 500 MHz
- MXO58C - MXO5C-B2810 - Bandwidth upgrade to 1 GHz
- MXO58C - MXO5C-B2820 - Bandwidth upgrade to 2 GHz
- MXO58C - MXO5C-B1 - Mixed signal option, 16 digital channels
- MXO58C - MXO5C-B6 - Arbitrary waveform generator, 2 channels, 100 MHz

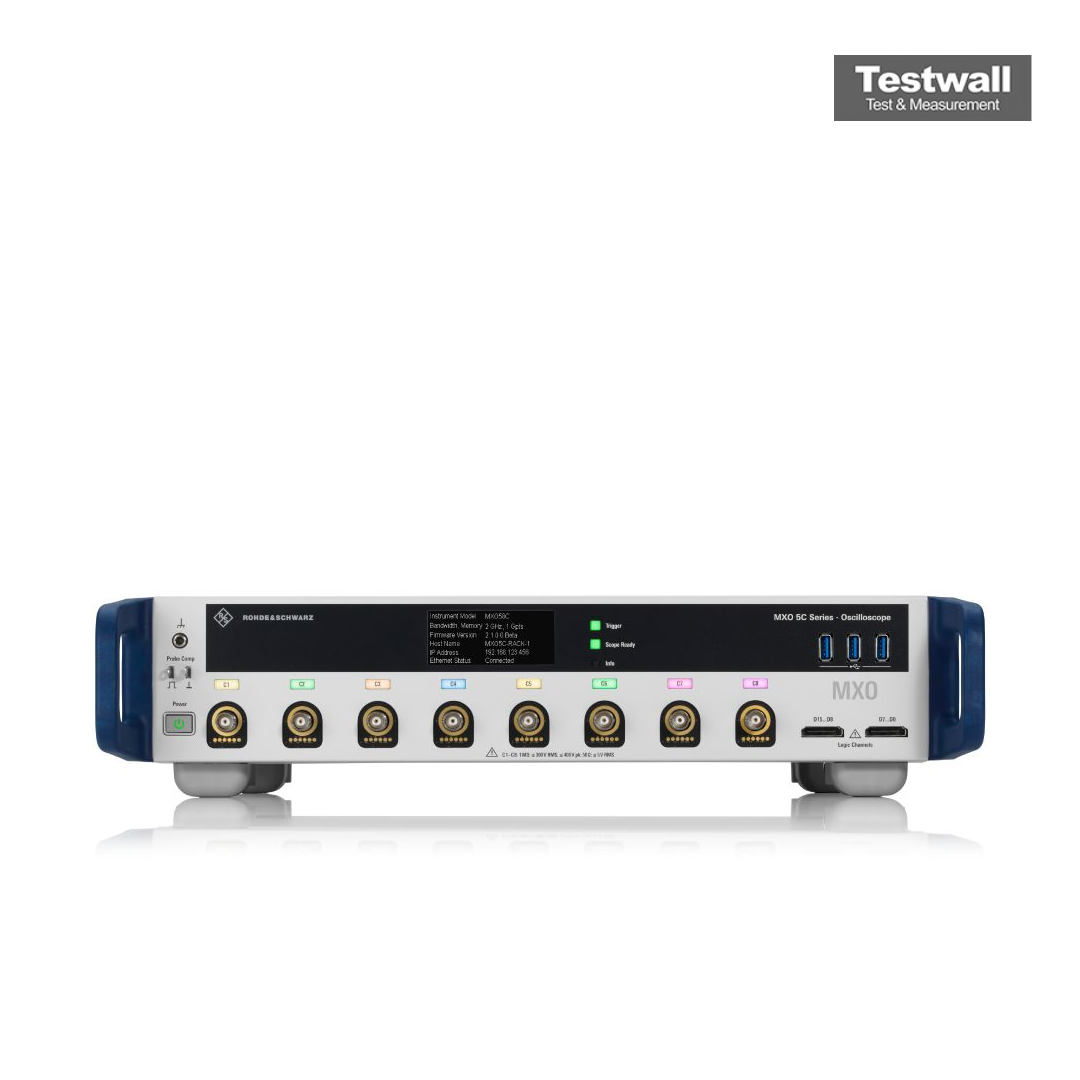

The Rohde & Schwarz MXO58C is the 8-channel model of the MXO 5C Series, a compact 2U version of the MXO 5 without a built-in display, designed for racks and automated test systems. It keeps the MXO 5 performance: more than 4.5 million waveforms per second, a 12-bit ADC at all sample rates (up to 18-bit in HD mode), up to 5 GS/s (2.5 GS/s with all eight channels active) and 500 Mpoints of memory per channel. It is operated over LAN or with an external monitor via HDMI or DisplayPort, and has a small e-ink display showing IP address, firmware and installed options.
Bandwidth on the MXO 5C is set by software licence, so the MXO58C can be supplied at 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz or 2 GHz (upgrade options MXO5C-B282 to MXO5C-B2820). It can also be fitted with 16 digital channels (MXO5C-B1) and a 2-channel 100 MHz arbitrary waveform generator (MXO5C-B6). Tell us the bandwidth and options you need when you request a quote.
Testwall can supply the used Rohde & Schwarz MXO58C, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz MXO58C.
