Rohde & Schwarz NAP
| Attribute | Value |
|---|---|
| Frequency Range | 0.2 MHz to 1 GHz |
| Power Range | up to 2000 W |
| Compatible Sensors | NAP-Z series power heads |
| Measurement Speed | approx. 2.5 readings/s |
| Dimensions | 241 × 110 × 219 mm |
| Measurement Types | average, peak (PEP), SWR, return loss, reflection |
| Display | 2 LCD, 3½ digits, with bargraph |
| Interfaces | GPIB (AC model), 2 analog outputs (rear panel) |
| Weight | 3.6 kg |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| NAP-Z5 | 25 MHz to 1 GHz | 0.1 to 350 W | directional power sensor, average |
| NAP-Z6 | 25 MHz to 1 GHz | 0.3 to 1100 W | directional power sensor, average |
| NAP-Z7 | 0.4 to 80 MHz | 0.05 to 200 W average, 0.5 to 200 W peak | directional power sensor, average and peak |
| NAP-Z8 | 0.2 to 80 MHz (peak 0.4 to 80 MHz) | 0.5 to 2000 W average, 5 to 2000 W peak | directional power sensor, average and peak |

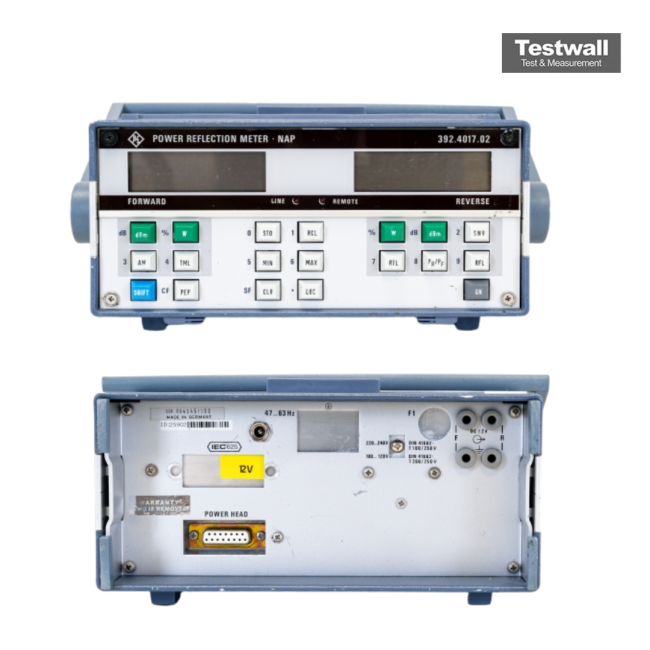

The Rohde & Schwarz NAP Power Meter is a precise and high-speed device designed for accurate RF power measurements across a broad frequency range. It offers excellent linearity, dynamic range, and compatibility with various sensors, ensuring top-tier performance in both laboratory and production environments.
Ideal for telecommunications, broadcasting, and component testing, the NAP Power Meter delivers consistent and reliable power measurement results with minimal setup complexity.
Testwall can supply the used Rohde & Schwarz NAP Power Meter, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NAP Power Meter.
