Rohde & Schwarz NAP-Z7
| Attribute | Value |
|---|---|
| Compatible Instrument Series | Rohde & Schwarz NAP Power Analyzer |
| Function | Current Probe Adapter / Shunt Module |
| Input Connector Type | BNC |
| Output Connector Type | BNC |
| Shunt Resistance | 10 mΩ |
| Maximum Current | 30 A (RMS) |
| Frequency Range | DC to 10 MHz |
| Measurement Category | Power Measurement / Current Sensing |
| Operating Temperature Range | 0 °C to 50 °C |
| Interface Compatibility | Designed for use with R&S NAPseries power analyzers and oscilloscope-based power analysis setups |
| Model | NAP-Z7 |
|---|

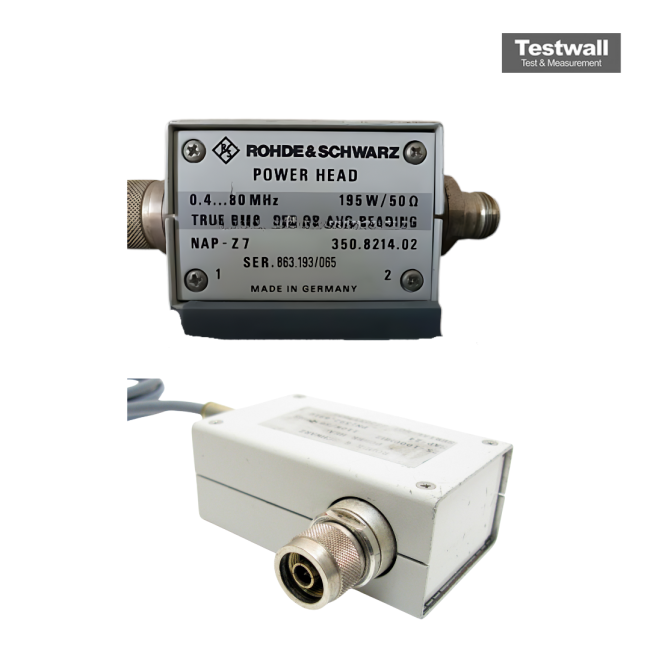

The Rohde & Schwarz NAP-Z7 Directional Power Sensor operates across 0.4 to 80 MHz and supports power measurements up to 200W. It offers high precision for forward and reflected power readings, essential for RF and broadcast applications. Its compact, rugged design ensures durability and consistent performance in demanding environments.
Ideal for monitoring transmitter performance, the NAP-Z7 provides real-time, accurate power data with minimal signal disruption and user-friendly interface integration.
Testwall can supply the used Rohde & Schwarz NAP-Z7, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NAP-Z7.
