Rohde & Schwarz NAS-Z7
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 30 MHz |
| Impedance | 50 Ω |
| LISN Type | V-Network (Line Impedance Stabilization Network) |
| Number of Lines | Single-phase, 2-line |
| Maximum Current | 16 A |
| Maximum Voltage | 250 V AC / 400 V DC |
| Compliance Standards | CISPR 16-1-2, EN 55016-1-2 |
| RF Output Connector | BNC female |
| Power Input Connector | IEC 320 C14 inlet |
| Operating Temperature Range | 0 °C to +40 °C |
| Model | NAS-Z7 |
|---|

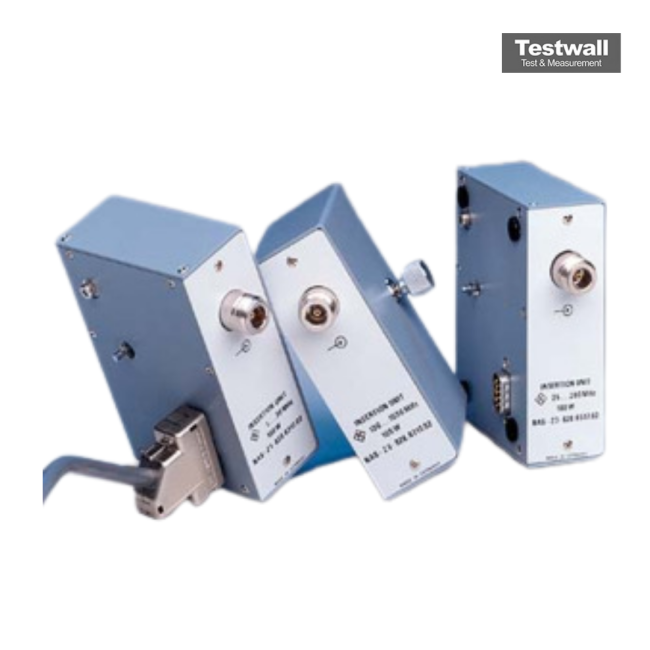

The Rohde & Schwarz NAS-Z7 is a 1GHz Insertion Unit designed for precise measurement applications. It provides reliable signal insertion for network analyzers and supports high-frequency operations with minimal signal loss. Its robust design ensures accurate and consistent performance in various test setups.
Ideal for integration with RF measurement systems, the NAS-Z7 offers seamless operation in test and measurement environments. Its compact form and frequency range make it a versatile choice for engineers and technicians.
Testwall can supply the used Rohde & Schwarz NAS-Z7, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NAS-Z7.
